Quick Details
-
Model Number:
-
V8
-
Configuration:
-
High performance 3-way passive line array loudspeaker
-
Nominal impedance:
-
8 OHMS
-
SPL:
-
139 dB 142dB max
-
HF:
-
2 x 1.4" exit compression driver
-
MF:
-
1 x 8" driver
-
LF:
-
2 x 10" driver
-
Components material:
-
Neodymium
-
Connections:
-
2 x NL4 speakon
-
Cabinet:
-
birch plywood
-
Finish:
-
Polyurea paint
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
skytone
-
Model Number:
-
V8
-
Configuration:
-
High performance 3-way passive line array loudspeaker
-
Nominal impedance:
-
8 OHMS
-
SPL:
-
139 dB 142dB max
-
HF:
-
2 x 1.4" exit compression driver
-
MF:
-
1 x 8" driver
-
LF:
-
2 x 10" driver
-
Components material:
-
Neodymium
-
Connections:
-
2 x NL4 speakon
-
Cabinet:
-
birch plywood
-
Finish:
-
Polyurea paint

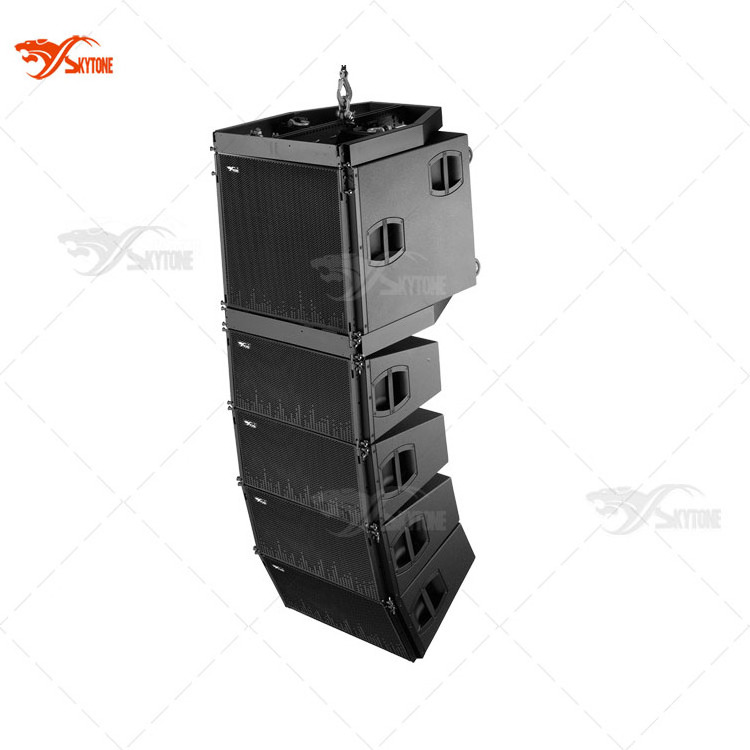

V8 High performance 3-way passive line array speaker
3-way line array
5 units configuration
18mm birch plywood cabinet
Max 24pcs flying
Widely coverage
Strong sound pressure at long distance, high definition and wide coverage, suitable for medium to large-scale stage performances, allowing music to be heard throughout the stage
18mm birch plywood cabinet
With steel grille
Coating polyurea paint
H umanized handle
Multiple unit configuration
2x1.7” (44mm) Titanium compression driver
1x8” (200mm) neodymium MF driver
2 x 10”(250mm) neodymium woofer
Long throw horn tweeter---2x1.4" titanium compression driver
Neodymium magnet tweeter, clear, bright sound without noise,
have a strong layering feeling
8" neodymium MF driver
gentle and melodious sound
10" neodymium woofer
Strong powerful, shock your heart
Flying max hanging 24PCS line array speakers
flexible vertical angle adjustment
Vertical inter-element variation from 0° to 14°
Variety of installation options
Specification
| Specification | |
| Configuration |
High performance 3-way passive line array loudspeaker |
| Frequency response (-5 dB standard) | 67 Hz - 18 kHz |
| Frequency response (-5 dB CUT mode) | 100 Hz - 18 kHz |
| Max. sound pressure (1m, free field) | 139 dB 142dB max |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 500/2000 W |
| Nominal dispersion angle (horizontal) | 80°2 |
| Splay angle settings | 0° - 14° (1° increment) |
| Components |
2 x 10" driver
1 x 8" driver 2 x 1.4" exit compression driver passive crossover network |
| Connections | 2 x NL4 speakon |
| Cabinet | birch plywood |
| Finish | Polyurea paint |
| Dimension | 310 x 700 x 460mm |
| Weight | 34kgs |
