Quick Details
-
Voltage:
-
380V/50HZ/3phases or Customized
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Woodworking
-
Weight (KG):
-
550 KG
-
Power (kW):
-
4
-
Max.Cutting Height at 90°(mm):
-
80mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3150mm
-
Name:
-
Woodworking Sliding Table Saw Machines for Industrial
-
Color:
-
Customer Actual Requirements
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hezhi/OEM
-
Usage:
-
Woodworking
-
Voltage:
-
380V/50HZ/3phases or Customized
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Woodworking
-
Weight (KG):
-
550 KG
-
Power (kW):
-
4
-
Max.Cutting Height at 90°(mm):
-
80mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3150mm
-
Name:
-
Woodworking Sliding Table Saw Machines for Industrial
-
Color:
-
Customer Actual Requirements
Product Paramenters
|
Model number
|
MJ45A
|
MJ90A
|
MJ45B
|
MJ90B
|
|
Main saw shaft speed
|
4000/5000r/min
|
4000/5000r/min
|
4000/5000r/min
|
4000/5000r/min
|
|
Main saw mator
|
5.5kw
|
5.5kw
|
5.5kw
|
5.5kw
|
|
Slotting saw shaft speed
|
9000r/min
|
9000r/min
|
9000r/min
|
9000r/min
|
|
Slot saw motor
|
1.1kw
|
1.1kw
|
1.1kw
|
1.1kw
|
|
Maximum machining thickness
|
80mm
|
80mm
|
80mm
|
80mm
|
|
Master motor
|
0.55kw
|
0.55kw
|
|
|
|
Dimeter of saw
|
Ф300XФ30mm
|
Ф300XФ30mm
|
Ф300XФ30mm
|
Ф300XФ30mm
|
|
Groove saw blade size
|
120X20mm
|
120X20mm
|
120X20mm
|
120X20mm
|
|
Maximum stroke of sliding workbench
|
2800mm
|
2800mm
|
2800mm
|
2800mm
|
|
Weight
|
1060kg
|
1060kg
|
1060kg
|
1060kg
|
|
Saw blade can tiltat an angle
|
45°-90°
|
90°
|
45°-90°
|
90°
|
|
Overall dimensions
|
2960X3500X1000mm
|
2960X3500X1000mm
|
2960X3500X1000mm
|
2960X3500X1000mm
|

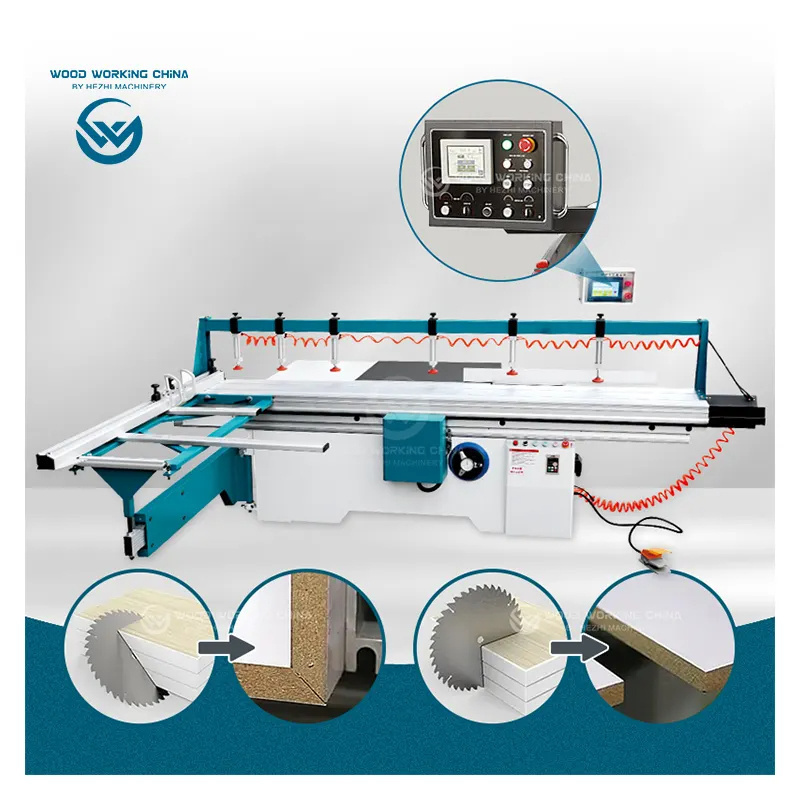

Precision Auto Wood Sliding Table Panel Saw Machine For Woodworking is suitable for processing all density boards, shaving boards artificial boards, ABS boards, PVC boards, plexiglass plates, genuine woodboards, and other boards with similar structures and hardness.
It is widely applicable and not limited to materials. According to the cutting boards, it is suitable for processing various density boards, artificial boards, fiberboards, creative boards, ABS boards, PVC boards, plexiglass boards, and boards with similar hardness.
