Quick Details
-
Hose Inner Diameter:
-
10 mm
-
Air Consumption:
-
5~6m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANJIE
-
Voltage:
-
380V,440V,660V,1140V,50Hz/60Hz
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1130*540*1020mm
-
Weight:
-
400kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Output:
-
3 m3/h
-
Water cement ratio:
-
<0.4
-
Operating air pressure:
-
0.2~0.6MPa
-
Air consumption:
-
5~6m3/min
-
Motor power:
-
3kw(4hp)
-
Basic chassis:
-
Options: tire , skid or rail-wheel
-
Application:
-
Building site
-
Keywords:
-
shotcrete machine
-
Color:
-
Customised
-
Certification:
-
ISO,BV,SGS
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Max. Conveying Distance:
-
200 m
-
Max Aggregate Size:
-
10mm
-
Hose Inner Diameter:
-
10 mm
-
Air Consumption:
-
5~6m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANJIE
-
Voltage:
-
380V,440V,660V,1140V,50Hz/60Hz
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1130*540*1020mm
-
Weight:
-
400kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Output:
-
3 m3/h
-
Water cement ratio:
-
<0.4
-
Operating air pressure:
-
0.2~0.6MPa
-
Air consumption:
-
5~6m3/min
-
Motor power:
-
3kw(4hp)
-
Basic chassis:
-
Options: tire , skid or rail-wheel
-
Application:
-
Building site
-
Keywords:
-
shotcrete machine
-
Color:
-
Customised
-
Certification:
-
ISO,BV,SGS

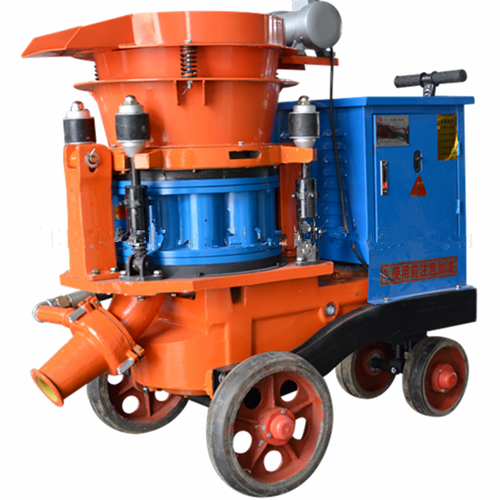

Aliva Shotcrete Machine Type Large Working Capacity Explosion-Proofing Gunite Machine
Shotcrete process is to make use of the compressed air to convey the precast concrete through
Aliva Shotcrete Machine Type Large Working Capacity Explosion-Proofing Gunite Machine
| Type | PZ-3 | PZ-5 | PZ-6 | PZ-7 | PZ-9 |
| Capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h | 9m3/h |
| Max. Convey Distance | 200m | 200m | 200m | 200m | 200m |
| Suitable Mix Ratio | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 |
| Water Cement Ration | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 |
| Max. Aggregate. size | 10mm | 15mm | 15mm | 20mm | 20mm |
| Rotor diameter | 350mm | 438mm | 438mm | 480mm | 480mm |
| Operating Pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa |
| Air Consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h | 9-10m3/h |
| Motor Power | 4KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
| Voltages | 380V,440V,660V,1140, 50Hz/60Hz | ||||
| Total weight | 400Kg | 700Kg | 700Kg | 800Kg | 900Kg |
| Chassis | Chassis can be assembled into rubber-tyred, slide type, rail wheel. | ||||
Simple operation; can be used widely.
Widely used in engineering construction, mining tunnels, hydropower projects, underground projects, and coal morains, mines, roadways and so on.
Zhengzhou Xinyu Machinery Manufacturing Co., Ltd. is a professional concrete equipment manufacture which has thirty years of technology accumulation in China. The company has always paid attention to research and development of self-own brand-JINJIE. Nowadays, our products are exported to more than 30 countries and regions with excellent quality, such as Eastern Europe, Southeast Asia, South America, Africa and Oceania and so on.
1.how much is the length of delivery rubber hose?
It is 20m.If you need we also have 15m,16m,etc.
2.what is the difference between the wet spray machine and dry shotcrete machine?
Wet shotcrete machine can spray both the wet and dry concrete,while dry shotcrete machine is for dry concrete. But the wet shotcrete machine is small pollution.
3.what is the voltage/phase for this machine?
220v,380v,440v,660v,1140v
4.what is the guarantee?
One year for Motor, Reducer. If problem arrive, if it is not man-made damage, just offer a new one for free to replace.
