Quick Details
-
Brand Name:
-
better united
-
Model Number:
-
BT, 4300
-
Name:
-
4-Terminal Earth Resistance Tester and Soil Resistivity Tester
-
Measuring Range:
-
0.05Ω-20.9KΩ
-
Accuracy Class:
-
about 3%
-
Dimensions:
-
167*185*89mm
-
Display Type:
-
Digital
-
Testing Voltage:
-
10V
-
Operating Temperature:
-
-10 C~55
-
Frequency of ust:
-
0.5HZ
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
better united
-
Model Number:
-
BT, 4300
-
Name:
-
4-Terminal Earth Resistance Tester and Soil Resistivity Tester
-
Measuring Range:
-
0.05Ω-20.9KΩ
-
Accuracy Class:
-
about 3%
-
Dimensions:
-
167*185*89mm
-
Display Type:
-
Digital
-
Testing Voltage:
-
10V
-
Operating Temperature:
-
-10 C~55
-
Frequency of ust:
-
0.5HZ

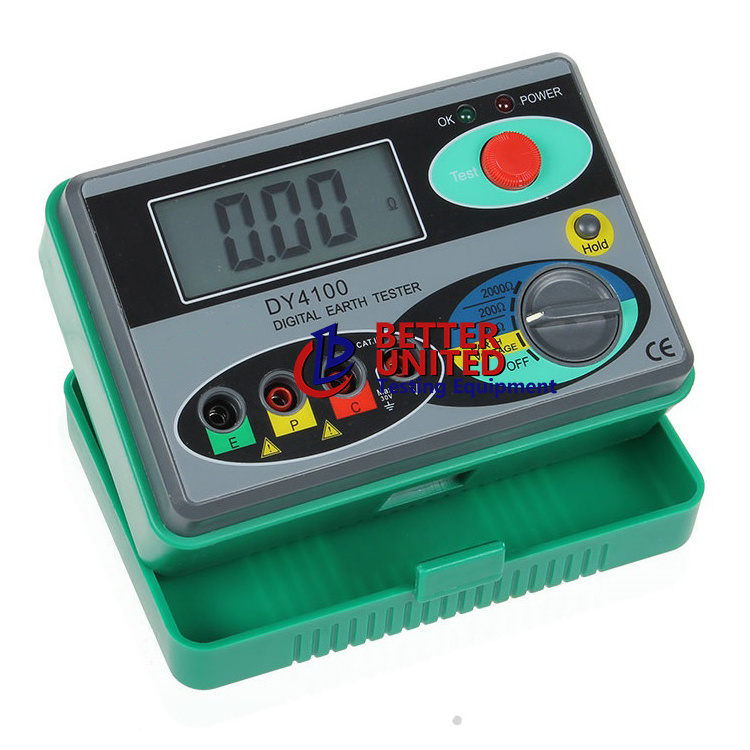

DY4100 Digital Ground Resistance Tester
can test earth resistance of various earth systems including power systems, electric equipments, lightning conductors as well as resistance value of low resistance conductor and AC voltage test.This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure.
DY4300
Digital Ground Resistance Tester
|
4 pole earth resistance measurement 0 to 20.99kΩ with min. resolution 0.01Ω
|
|
Auto ranging soil resistivity measurement 0 to 395.6kΩm
|
|
Series interference voltage Ust(AC only) 0~30Vrms
|
|
Measures frequency 400~500Hz
|
|
Measureing Voltage Um optional/auto-selected 10Vrms 94Hz, 105Hz, 111Hz, 128Hz
|
|
Test current maximum 80mA
|
|
Advance filtering method based on FFT(fast fourier transform) reduces noise interference
|
|
Compensation for residual resistance Rk
|
|
Data Memory 1000 sets
|
|
Conforms to CATIV 150V, CATIII 300V
|
