1200Lbs Waterproof Electromagnetic Door Lock 24V

1200Lbs Waterproof Electromagnetic Door Lock 24V

FOB Reference Price: Get Latest Price

≥1 Pieces

US $23.8

≥50 Pieces

US $23.5

≥100 Pieces

US $23

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: copper or CCA

lock size:: 266Lx67Wx39H(mm)

plate:: 185Lx57Wx13H(mm)

Finishes for Shell:: Anodized aluminum surface texture processing

Finishes for Magnetic:: Zinc

Holding Force:: 500kg(1200Lbs)

Voltage:: DC12V or DC24V (adjustable)

Weight:: 4.5kg

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: S4A

Model Number:: EL-1200SD

Material:: copper or CCA

lock size:: 266Lx67Wx39H(mm)

plate:: 185Lx57Wx13H(mm)

Finishes for Shell:: Anodized aluminum surface texture processing

Finishes for Magnetic:: Zinc

Holding Force:: 500kg(1200Lbs)

Voltage:: DC12V or DC24V (adjustable)

Weight:: 4.5kg

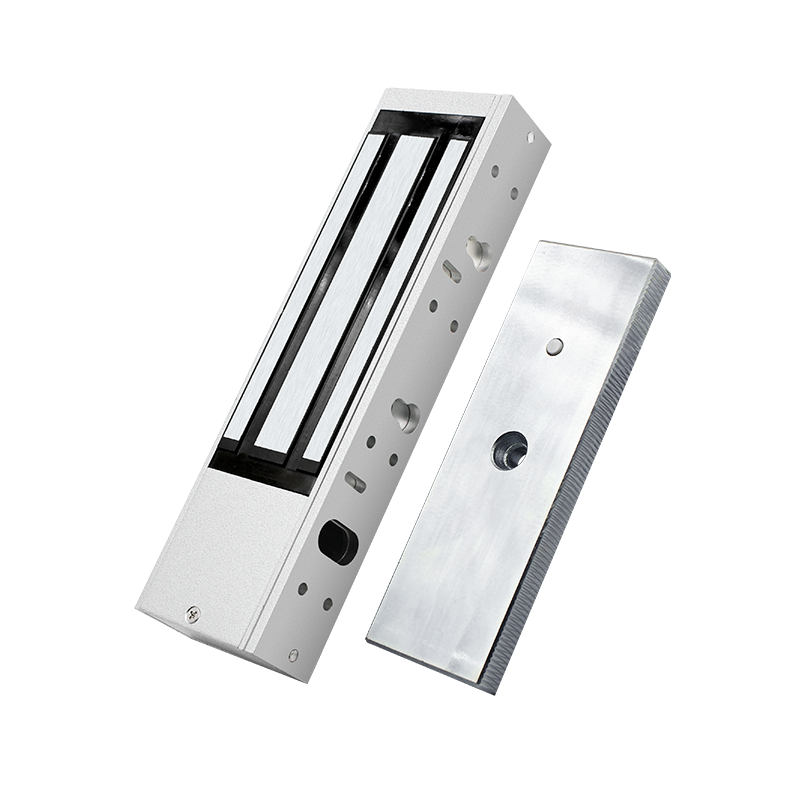

1200Lbs Waterproof Electromagnetic Door Lock

How Electromagnetic Locks Work?

Components

A magnetic lock, often referred to as a mag lock, consists of an electromagnet and an armature plate.
The magnet is mounted inside of the door opening, which prevents tampering, while the plate is installed on the face of the door.

When the magnet is connected to an electrical source, it produces a strong magnetic attraction that holds the magnet tight to the plate, effectively locking the door. The lock is typically powered using either the building's electrical system or a separate battery pack.

Because a mag lock can only be used with DC power, a converter unit must be added when relying on building power.
These locks are said to be "fail-safe," meaning that once the power goes out, the door will remain unlocked, allowing occupants to exit safely.

If you need to check more FAQ for Electromagnetic locks, pls browse our s4a-access website
