Quick Details
-
Brand Name:
-
JERQI
-
Model Number:
-
QS5-30
-
Max. Current:
-
15a 30a 63a 100a
-
Phase:
-
3
-
Number of Pole:
-
3
-
Electricity Type:
-
AC
-
Type:
-
CAM STARTER
-
Coil Voltage:
-
500V
-
Rated current:
-
15a 30a 63a 100a
-
Name:
-
QS5-30 CAM STARTER
-
Main Circuit Rating Voltage:
-
500v
-
Main Circuit Rating Current:
-
30a
-
Product Name:
-
30A QS5-30A motor rotary switch reverse switch plastic cam switch
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JERQI
-
Model Number:
-
QS5-30
-
Max. Current:
-
15a 30a 63a 100a
-
Phase:
-
3
-
Number of Pole:
-
3
-
Electricity Type:
-
AC
-
Type:
-
CAM STARTER
-
Coil Voltage:
-
500V
-
Rated current:
-
15a 30a 63a 100a
-
Name:
-
QS5-30 CAM STARTER
-
Main Circuit Rating Voltage:
-
500v
-
Main Circuit Rating Current:
-
30a
-
Product Name:
-
30A QS5-30A motor rotary switch reverse switch plastic cam switch
-
Certification:
-
CE

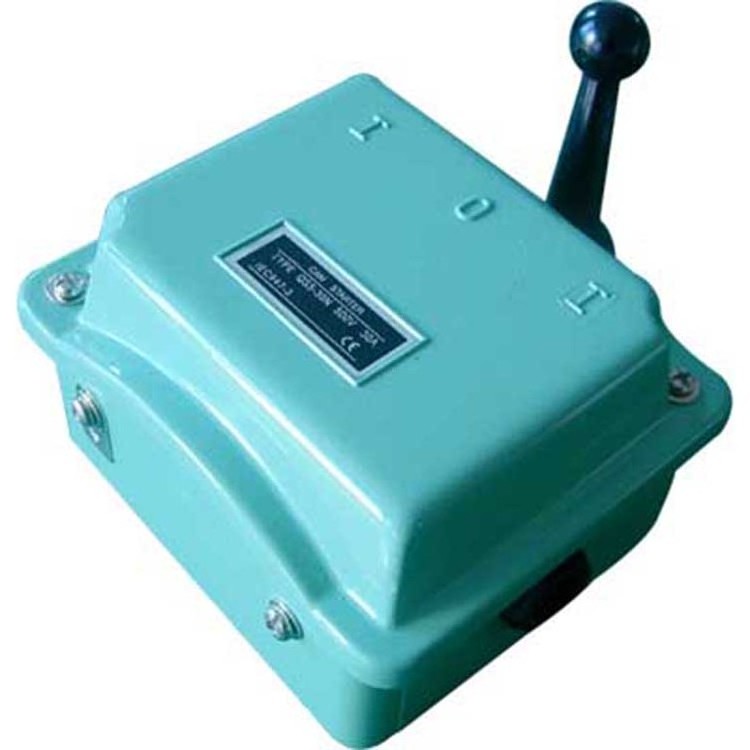

30A QS5-30 motor starter cam switch 63A Switch Cam Starter
Product Description
15A 30A 63A 3POLE QS5-30N cam starter
APPLOCANTION
QS5 cam starter is mainly used to start forward or backward and stop directly three-phase asynchronous electric motor with AC 50Hz, voltage up to 500V and capacity up to 7.5kW.It can also be used for changeover from one kind of circuit to another.
SPECIFICATION
| Model | Mark | Rated Current(A0 | Motor Control Capacity(hp) | Electrical Life(times) | Mechanical Life(times) | Frequency of Operation(per hr0 | Applications | Position of Level |
| QS5-15A | I-O | 15 | 5.5 | 100000 | 250000 | 200 | ON-OFF switching | 0-60 |
| QS5-30A | 30 | 10 | ||||||
| QS5-15N | I-O-I | 15 | 5.5 | Forward & Reverse | 60-0-60 | |||
| QS5-30N | 30 | 10 | ||||||
| QS5-15P/3 | I-O-II | 15 | 5.5 | For 3 phase 2 wire | 0-60 | |||
| QS5-30P/3 | 30 | 10 | ||||||
| QS5-63A | I-O | 63 | 22 | 80000 | 200000 | 180 | ON-OFF switching | 0-60 |
| QS5-100A | 100 | 30 | ||||||
| QS5-63N | I-O-I | 63 | 22 | Forward & Reverse | 60-0-60 | |||
| QS5-100N | 100 | 30 | ||||||
| QS5-63P/4 | I-O-II | 63 | 22 | For 3 phase 2 wire | 60-0-60 | |||
| QS5-100P/4 | 100 | 30 |
QS5 CAM STARTER 15A 30A 63A 100A cam starter
