Quick Details
-
Model Number:
-
ANT-6-4T
-
Type:
-
Pir Motion Sensor
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
Pir
-
Output:
-
0-10V dimming signal
-
Input Voltage:
-
10-28VDC,>30mA
-
Certificate:
-
UL
-
Mounting height:
-
40ft(12m) Max.
-
Warranty:
-
5 Years
-
Color:
-
White Black
-
Material:
-
Plastic
Quick Details
-
Use:
-
For commercial lighting automation
-
Mounting Type:
-
FIXTURE
-
Description:
-

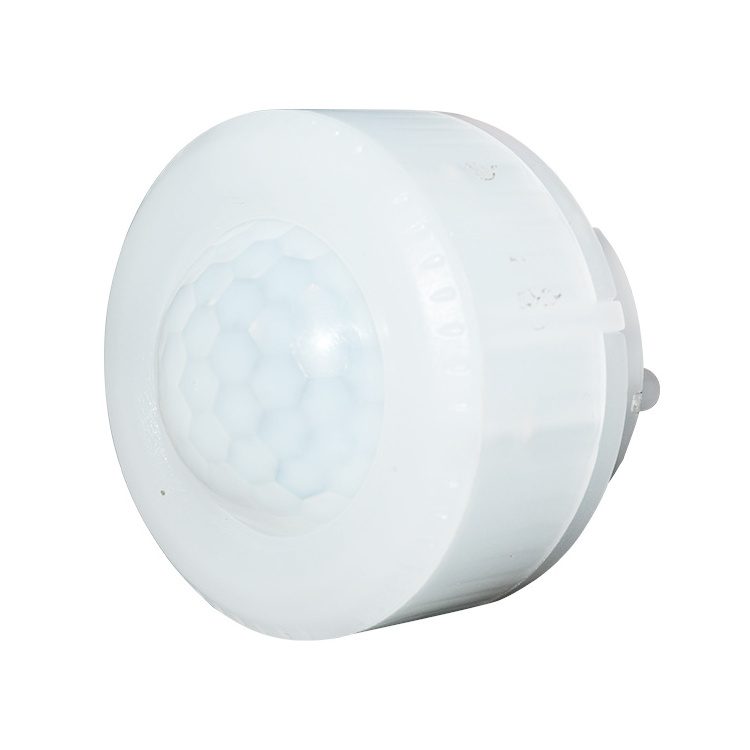

PIR SENSOR, ANT-6-4T
-
Model Number:
-
ANT-6-4T
-
Type:
-
Pir Motion Sensor
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
Pir
-
Output:
-
0-10V dimming signal
-
Input Voltage:
-
10-28VDC,>30mA
-
Certificate:
-
UL
-
Mounting height:
-
40ft(12m) Max.
-
Warranty:
-
5 Years
-
Color:
-
White Black
-
Material:
-
Plastic
Specifications
|
Power supply
|
12V-24V DC, >30mA
|
|
Dim control output
|
0-10V, max. 25mA sinking current
|
|
Rrmote range
|
50ft.（15）indoor，no backlight
|
|
Dim control output
|
0-10V
|
|
Detection radius
|
20%/50%/75%/100%(1-8m)
|
|
Mounting height
|
Max 50ft.(15meters)
|
|
Time setting
|
10s/1min/5min/10min/15min/20min/30min/60min
|
|
Light-control
|
24H/10LUX/30LUX/50LUX
|
|
IP rating
|
IP65
|
|
Temperature
|
-4°F ~ +140°F (-20°C ~ +60°C)
|
Products Description
COVERAGE PATTERNS
DIMENSION
FUNCTIONS
