Quick Details
-
Brand Name:
-
Taidacent
-
Output:
-
Linear output
-
Description:
-
current sensor relay
-
Working environment:
-
0-65℃,10~95%RH
-
Installation method:
-
DIN Rail
Quick Details
-
Usage:
-
over current detector
-
Model Number:
-
panel type over current protection relay
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Output:
-
Linear output
-
Description:
-
current sensor relay
-
Working environment:
-
0-65℃,10~95%RH
-
Installation method:
-
DIN Rail

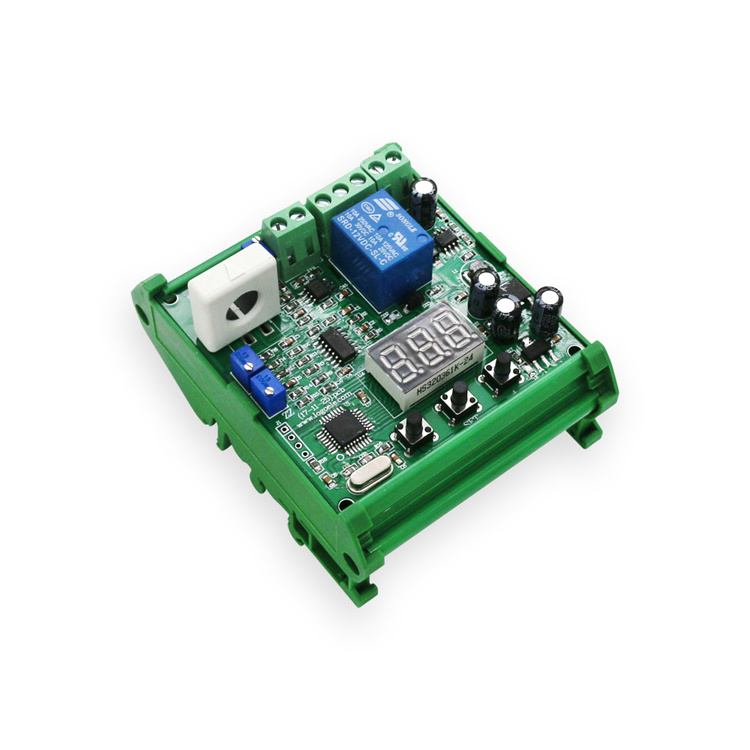

Taidacent DC 0-1A/5/10/50A Overcurrent Protection Relays Current Sensor Switch Current Sensing Relay DC Current Sensing Switch
Product Description
It is used to detect the current in the DC circuit, output the corresponding linear voltage value and display the current current value through the digital tube. If the detected current exceeds the preset value, the relay on the module will act and delay.
Specification
|
Output
|
①Analog signal: 0-10V (see Figure 1)
②Switch signal: relay output, the fastest response time (300mS)
③Delay time setting: Delay time setting range: 0-99.9S, module default: 3S
|
|
Working environment
|
Temperature range: 0-65℃ (-20~75℃ need to be customized, please contact onlinecustomer service)
Humidity range: 10~95%RH(non-condensing) |
|
Installation method
|
Module only: locate the mounting holes.
See Figure 2 for dimensions With base: C45 standard rail
|
Parameters
|
Wroking Voltage
|
|
Min
|
Type
|
Max
|
|
|
|
|
15V
|
24V
|
30V
|
|
|
Working current
|
Detect current
|
|
36mA
|
|
|
|
Working current
|
Relay working
|
|
65mA
|
|
|
|
Current Detect range
|
|
|
DC 0-1A
|
|
|
|
|
|
|
DC 0-5A
|
|
|
|
|
|
|
DC 0-10A
|
|
|
|
|
|
|
DC 0-50A
|
|
|
|
Measurment Difference
|
|
±1%F*S
|
±2.0%F*S
|
±2.5%F*S
|
|
|
Isolated voltage
|
DC 0-1A
|
|
DC 300V
|
DC 1000V
|
|
|
|
DC 0-5A
|
|
DC 300V
|
DC 1000V
|
|
|
|
DC 0-10A
|
|
|
DC 4000V
|
|
|
|
DC 0-50A
|
|
|
DC 4000V
|
|
|
Size
|
DC 0-1A/0-5A
|
Only Module
|
71.5mm*69mm*23mm
|
|
|
|
|
DC 0-10A/0-50A
|
|
71.5mm*69mm*25mm
|
|
|
|
|
DC 0-1A/0-5A
|
DIN Rail
|
89mm*71.5mm*50mm
|
|
|
|
|
DC 0-10A/0-50A
|
|
89mm*71.5mm*55mm
|
|
|
Setting method of threshold current and delay time
①Press and hold the SET button for 3-5S and release it, the digital tube enters the threshold current setting state, and the last digit of the digital tube is in the flashing state.
②Use the + key or - key to set the threshold current, and click the SET key to transpose (that is, the flashing state moves forward one digit)
③After the setting is completed, press and hold the SET button for 3-5S and then release, the digital tube returns to the initial interface (000), which means the setting is successful.
④Press and hold the SET button, the module will automatically enter the time setting interface, the setting method refers to 6.2 and 6.3. (The default time setting interface is displayed as: 03.0)
