Quick Details
-
Max. Loading Capacity:
-
1200L
-
Weight (KG):
-
2300 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SIEHE
-
Voltage:
-
220-600V
-
Dimension(L*W*H):
-
Depends
-
Power (kW):
-
15 kW
-
Marketing Type:
-
Hot Product
-
Motor Brand:
-
ABB.Siemens.Teco.Sew
-
Explosion Proof:
-
ATEX
-
Inverter:
-
DANFOSS / SCHNEIDER/ DELTA
-
Electric Control:
-
Button / PLC
-
Electric component:
-
SCHNEIDER / DELIXI
-
Heating / Cooling:
-
Jacket
Quick Details
-
Barrel Volume (L):
-
100-30000
-
Max. Loading Volume (L):
-
2000 L
-
Range of Spindle Speed(r.p.m):
-
0 - 47 r.p.m
-
Max. Loading Capacity:
-
1200L
-
Weight (KG):
-
2300 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SIEHE
-
Voltage:
-
220-600V
-
Dimension(L*W*H):
-
Depends
-
Power (kW):
-
15 kW
-
Marketing Type:
-
Hot Product
-
Motor Brand:
-
ABB.Siemens.Teco.Sew
-
Explosion Proof:
-
ATEX
-
Inverter:
-
DANFOSS / SCHNEIDER/ DELTA
-
Electric Control:
-
Button / PLC
-
Electric component:
-
SCHNEIDER / DELIXI
-
Heating / Cooling:
-
Jacket
Products Description

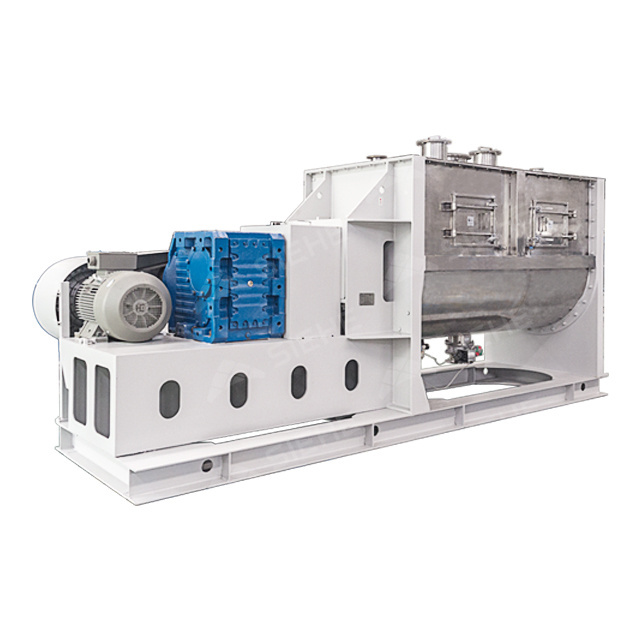

Horizontal Ribbon Mixer
is a late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The special design of double ribbon mixer the materials into high uniformity in a few minutes. On the other hand, ribbon mixer shows a wide application from powder mixing, powder-liquid, to paste or materials in high specific gravity (such as putty, really stone paint, metal powder and other materials) and becomes one of the most popular single shaft horizontal mixing equipment.
|
【Materials Specific Gravity】
|
≤5g/cm³
|
|
【Production Capacity】
|
100-30,000L
|
|
【Application Industry】
|
Suitable for the mixing of food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.
|
|
【Appilicable Materials】
|
Powders with fluidity whose specific gravity is up to 5g/cm³, liquid content is up to 20%, such as flavoring, pesticide, reactive dyes, water-free dirt, lithium cobalt oxides battery material and etc..
|
Wider Application, Less Crush:
Can be used widely from powder -powder, powder - granular, powder -liquid(such as putty, really stone paint, metal powder and etc.(material) mixing, with different bulk density. The designed radial speed of ribbon ranges from 1.8-2.2m/s, therefore, this is a flexibility mixing which have a low material destructiveness.
Higher Loading Rate, Better Sealing:
The machine can be designed for the materials temp. Around 180º-300º and the largest loading is 70%. Different sealing method are in option. Mechanical sealing can be used for good mobility materials.
Full Specification:
The mixer can be customized with spray, vacuum system, cover support, heating system, ex-proof, break ribbon and etc in SS304 or SS316. Lining of cylinder can be polyurethane or spraying wear-resistant material. In terms of valves, plum blossom valve, butterfly valve, flap valve, ball valve and etc. are in option.
Can be used widely from powder -powder, powder - granular, powder -liquid(such as putty, really stone paint, metal powder and etc.(material) mixing, with different bulk density. The designed radial speed of ribbon ranges from 1.8-2.2m/s, therefore, this is a flexibility mixing which have a low material destructiveness.
Higher Loading Rate, Better Sealing:
The machine can be designed for the materials temp. Around 180º-300º and the largest loading is 70%. Different sealing method are in option. Mechanical sealing can be used for good mobility materials.
Full Specification:
The mixer can be customized with spray, vacuum system, cover support, heating system, ex-proof, break ribbon and etc in SS304 or SS316. Lining of cylinder can be polyurethane or spraying wear-resistant material. In terms of valves, plum blossom valve, butterfly valve, flap valve, ball valve and etc. are in option.
