Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid
Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid

Hot Sale High Quality Food & Beverage Factory Farm Mushroom Compost Substrate Cosmetic Two-conical Mixer For Powder And Liquid

FOB Reference Price: Get Latest Price
≥1 Sets
US $8850
≥3 Sets
US $6500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Max. Loading Capacity:
5000L
Weight (KG):
2230 KG
Place of Origin:
Guangdong, China
Brand Name:
YaLian
Voltage:
220v/ 380v / 420v
Dimension(L*W*H):
as customeris requirments
Power (kW):
32 kW
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
soap making machine
Heating method:
steam/electric
Stirrer type:
scraper type/anchor/frame/scrapper
Control:
PLC/ Press-button
Motor Brand:
Siemens/ ABB
Homogenizer Speed:
0-3000R/MIN
Mixing speed:
0-65r/min
Customize:
Customizable

Quick Details

Barrel Volume (L):
5000
Max. Loading Volume (L):
5000 L
Range of Spindle Speed(r.p.m):
0 - 65 r.p.m
Max. Loading Capacity:
5000L
Weight (KG):
2230 KG
Place of Origin:
Guangdong, China
Brand Name:
YaLian
Voltage:
220v/ 380v / 420v
Dimension(L*W*H):
as customeris requirments
Power (kW):
32 kW
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
soap making machine
Heating method:
steam/electric
Stirrer type:
scraper type/anchor/frame/scrapper
Control:
PLC/ Press-button
Motor Brand:
Siemens/ ABB
Homogenizer Speed:
0-3000R/MIN
Mixing speed:
0-65r/min
Customize:
Customizable

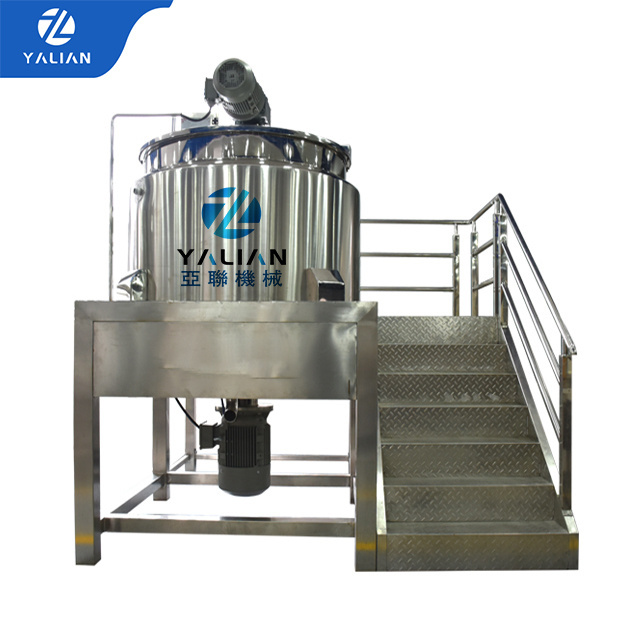

1. Chemical Washing Mixer - Series Stainless Steel Mixing Tank Manufacturers (Introduction)


YMC type stainless steel mixing tank (liquid washing homogeneous mixer) heating and emulsifying mixing tank is mainly suitable for mixing and stirring of different materials, mucus mixing, dissolving,stirring of uniform mixing, etc.

It is an indispensable equipment in various industries.

It integrates frequency conversion It is an ideal equipment for domestic and foreign manufacturers to configure materials.

2.Chemical Washing Mixer - Series Stainless Steel Mixing Tank Manufacturers (General performance)


1. The all-round scraping wall stirring paddle(scraper agitator) adopts frequency converter speed regulation, which reduces the formation of air bubbles when the temperature is low and the consistency is high. High-quality products with different processes can be produced according to customer requirements.

2. High-speed shearing homogenizer , 3800 revolutions per minute, powerfully mixes insoluble materials such as solid and liquid raw materials, which saves energy consumption and greatly shortens the production cycle.

3. The material can be heated or cooled according to the process requirements, and the heating method can be steam or electric heating according to customer requirements.

4. The pot body is composed of three layers of stainless steel plates welded, and the pot body and pipes are mirror polished, which fully meets the requirements of GMP.

5. The material is imported AISI304 or AISI316L stainless steel, and the tank body and pipes are mirror polished.

6. It can be equipped with a vacuum pump for vacuum pumping (optional).

7. Bottom-mounted dispersing head or FLUKO pipeline emulsifying head(homogenizer) can be selected to accelerate the dissolution and emulsification of materials.

8. The stainless steel electric control cabinet can fully monitor the operation of the equipment, and can display data such as temperature, stirring speed, and emulsification time (all show in control panel) .

9. It is convenient to discharge the material, which can be directly discharged or equipped with a delivery pump to discharge the material.

10. The outlet /discharge to the ground hight can be made according to customer needs.

11. The main scraper mixer adopts frequency conversion and speed change device, and the speed can be adjusted arbitrarily from 0-65 rpm.

12. The platform can be mounted on the front or side (customized as customer's factory size ) .

13. There are a variety of stirring paddles , which are suitable for the production of different types of products; the paddles can be selected from frame scraping paddles, paddle paddle paddles, propellers, three-blade propulsion paddles or two-way stirring.

3. Chemical Washing Mixer - Series Stainless Steel Mixing Tank Manufacturers (Scope of application)


1. Cosmetics industry: skin cream, shaving cream, sunscreen, facial cleanser, nutritional honey, dye cream, ion perm, hydrogen peroxide milk, etc., essence, moisturizing cream, hand cream, etc.

2. Daily chemical industry: liquid soap, detergent, shampoo, shower gel, hair conditioner, laundry detergent, hand sanitizer, toilet cleaner, car glass water, detergent, tire wax, cleaning cream, etc.

4. Food industry: jam, chili sauce, food slurry, seasoning, cheese, nutrient solution, baby food, chocolate, sugar, etc.

5. Chemical industry: latex, saponified products, paints, coatings, resins, adhesives, etc.

6. Comprehensive: resin coating, paint, shoe polish, chemical fiber, etc.

4. Chemical Washing Mixer - Series Stainless Steel Mixing Tank Manufacturers (The main technical parameters)


Working capacity (L) Scraper Agitator power (kw) Speed (rpm) Homogenizer power (kw) Speed (rpm) Heater method (option)

50

0.37

0~65

1.5

0~3800

steam heating / electric heating

100

0.75

0~65

2.2

0~3800

steam heating / electric heating

200

1.5

0~65

4

0~3800

steam heating / electric heating

500

2.2

0~65

5.5-7.5

0~3800

steam heating / electric heating

1000

4

0~65

11-15

0~3800

steam heating / electric heating

...

...

0~65

...

0~3800

steam heating / electric heating

3000 11 0~65 22 0~3800 steam heating / electric heating
... ... 0~65 ... 0~3800 steam heating / electric heating

4. Chemical Washing Mixer - Series Stainless Steel Mixing Tank Manufacturers (The function in machine can be customized)


Stainless Steel Mixing Tank can be customized with Vacuum system (Vacuum suction, vacuum degassing, the whole process is completed in a vacuum state, no cell infection, prolonging the shelf life of products), with extra 2set of pre-mixing tank (for pre-mixing and heating products of water tank and oil tank), lid lift system (hydraulic lift),... ( All can be customized as your idea )
