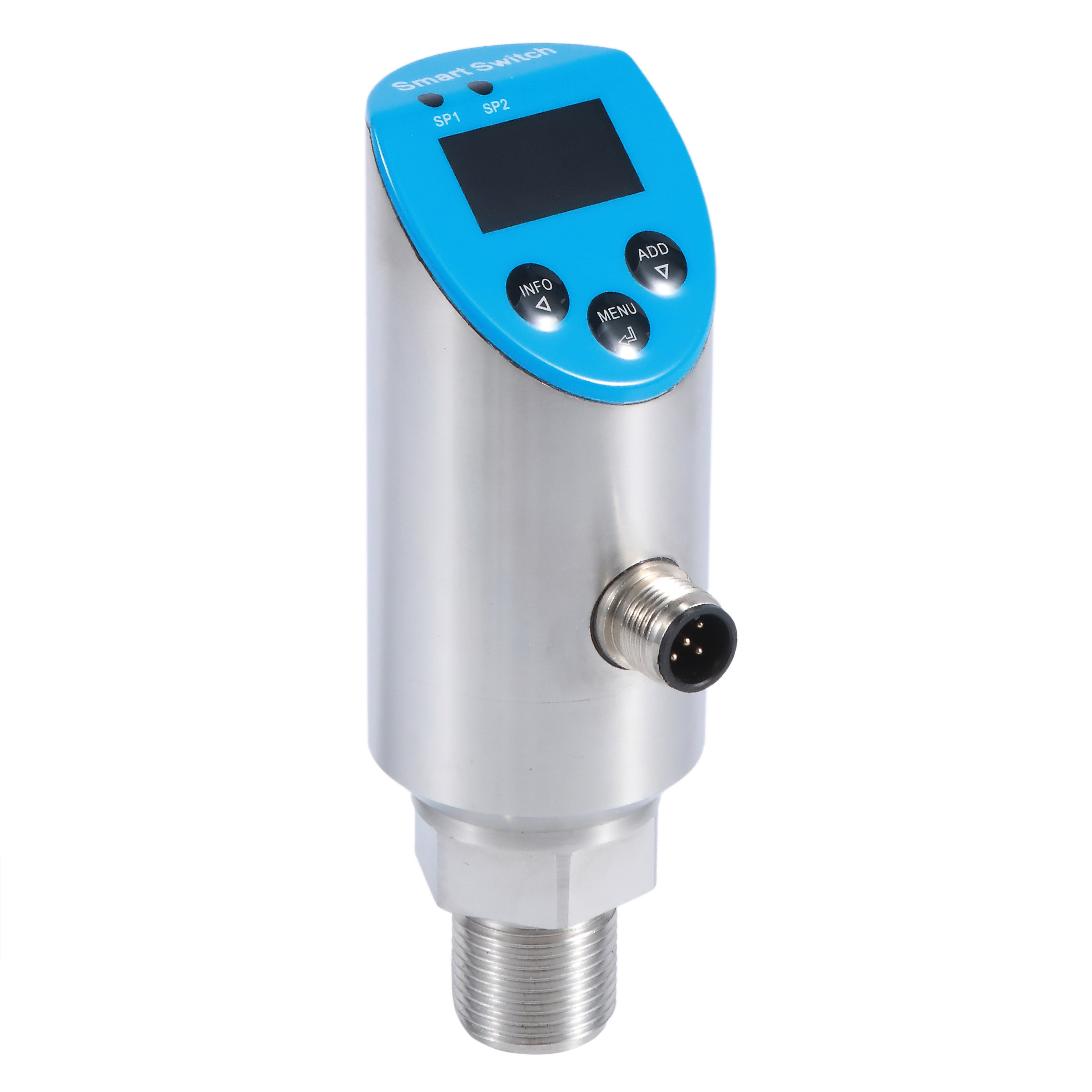

Quick Details
-
Model Number:
-
HPM5010
-
Max. Current:
-
1A
-
Max. Working Pressure:
-
24V
-
Measuring Medium:
-
Gas Liquid
-
Accuracy:
-
±0.5%FS
-
Pressure Range:
-
-0.1...0~0.1MPa...60MPa
-
Supply voltage:
-
24DCV (9 ~ 30DCV)
-
Switch Type:
-
PNP
-
Operating temperature:
-
-30~80℃
-
Medium Temperature:
-
-30~80℃
-
Output signal:
-
4~20mA 0~5V
-
Electrical connection:
-
M12*1
-
Protection:
-
IP65
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HIGHJOIN
-
Model Number:
-
HPM5010
-
Max. Current:
-
1A
-
Max. Working Pressure:
-
24V
-
Measuring Medium:
-
Gas Liquid
-
Accuracy:
-
±0.5%FS
-
Pressure Range:
-
-0.1...0~0.1MPa...60MPa
-
Supply voltage:
-
24DCV (9 ~ 30DCV)
-
Switch Type:
-
PNP
-
Operating temperature:
-
-30~80℃
-
Medium Temperature:
-
-30~80℃
-
Output signal:
-
4~20mA 0~5V
-
Electrical connection:
-
M12*1
-
Protection:
-
IP65
Features:
|
Measuring Medium
|
Liquid and gas compatible with 304 stainless steel
|
|
Pressure Range
|
-0.1...0~0.1MPa...60MPa
|
|
Accuracy
|
≤0.5%FS
|
|
Supply Voltage
|
24VDC
|
|
Temperature Error
|
±0.02% FS/℃（zero scale / full scale）
|
|
Long-term Stability
|
±0.3%FS/year
|
|
Switch+Voltage+Communication
|
2×PNP + 0V～5VDC/10VDC + MODBUS
|
|
Switch+Current+Communication
|
2×PNP + 0mA/4mA～20mA + MODBUS
|
|
Switching Current
|
1.0A(Max.)
|
|
Switch Type
|
Normally open、normally close（settable）
|
|
Switch Reaction
|
<10ms
|
|
Switch Delay
|
0.00s～1000.0s
|
|
Switch Motion Mode
|
Hysteresis mode or window mode
|
|
Screen Display
|
OLED
|
|
Menu Language
|
English
|
|
Switch Indicator
|
2×red LED
|
|
Display Unit
|
psi、bar、mbar、Pa、kPa、MPa
|
|
Key
|
3×blue backlight touch key-press
|
|
Instrumental Variable Display
|
Environment temperature、analog output value、minimal peak value、maximal peak value
|
|
Working Temp
|
-30~80℃
|
|
Medium Temp
|
-30℃～80℃
|
|
Storage Temp
|
-40℃～80℃
|
|
Electromagnetic Compatibility
|
GB/T 17626.2/3/4-2006
|
|
Vibration
|
≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
|
|
Impact
|
≤50g/11ms(IEC 60068-2-27-2008)
|
|
Protection of Shell
|
IP65
|
Q: Are you manufacturer or trading company？
A: We are manutacturer wtich focuses on sensor for 10 years.
Q: What's your quality control system？
A: MC，ISO9001，CE Certificated.
Q: What is the warranty of your products？
A: Our warranty tirme is 18 months after shipment。
Q: What is lead time of your product？
A: Normally，our factory lead time is within 10-15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
Q: Do you provide customized products？
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
Q: What is your MOQ？
A: We have no MOQ limt，small quantity order is acceptable.
Q: What's the transport？
A: EXpress uch as DHL，FedEx，TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight colloct.For more goods we can arrange by air or by Sea.
Q: What is your terms of payment？
A: We could acoept T / T，Paypal，WU.
Q: What's your quality control system？
A: MC，ISO9001，CE Certificated.
Q: What is the warranty of your products？
A: Our warranty tirme is 18 months after shipment。
Q: What is lead time of your product？
A: Normally，our factory lead time is within 10-15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
Q: Do you provide customized products？
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
Q: What is your MOQ？
A: We have no MOQ limt，small quantity order is acceptable.
Q: What's the transport？
A: EXpress uch as DHL，FedEx，TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight colloct.For more goods we can arrange by air or by Sea.
Q: What is your terms of payment？
A: We could acoept T / T，Paypal，WU.
