Quick Details
-
Warranty:
-
6 months
-
Brand Name:
-
Feiyinsi
-
Model Number:
-
DX512-1604-3500
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
6w
-
Cable Length:
-
0
-
Outlet Size:
-
6.5mm
-
Power:
-
5A
-
Flow rate:
-
9 LPM
-
certification:
-
CE,Rohs,ISO
-
Brush or brushless:
-
brush
-
weight:
-
300g
-
Materials:
-
PPS or PC, Nylon,Nylon with fiber,Hardware,rubber
-
color:
-
grey
-
Working way:
-
Continuous or intermittent
-
Size(mm):
-
93*65*40
-
Vacuum and pressure:
-
-65Kpa vacuum and 160Kpa pressure
-
Fuel:
-
dc power supply
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
6V/9V/12V/24V
-
Warranty:
-
6 months
-
Brand Name:
-
Feiyinsi
-
Model Number:
-
DX512-1604-3500
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
6w
-
Cable Length:
-
0
-
Outlet Size:
-
6.5mm
-
Power:
-
5A
-
Flow rate:
-
9 LPM
-
certification:
-
CE,Rohs,ISO
-
Brush or brushless:
-
brush
-
weight:
-
300g
-
Materials:
-
PPS or PC, Nylon,Nylon with fiber,Hardware,rubber
-
color:
-
grey
-
Working way:
-
Continuous or intermittent
-
Size(mm):
-
93*65*40
-
Vacuum and pressure:
-
-65Kpa vacuum and 160Kpa pressure
-
Fuel:
-
dc power supply

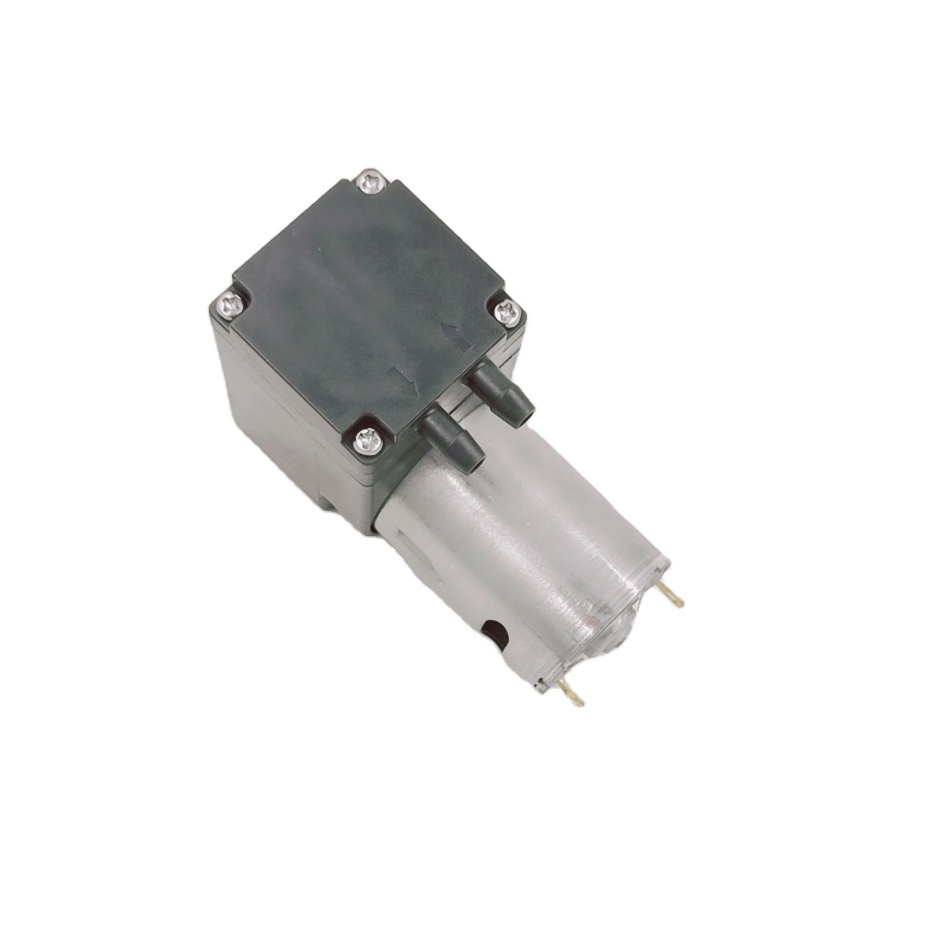

Highest performance smart integrated bidet toilet seat micro pump
24v brush air pump
mini pump has the following advantages:
compact structure, maintenance free
oil free,low power consumption, corrosion resistance
high pressure,high flow, low noise
long life and other characteristics
| Model | DX512-1604-3500 |
| Size(mm) | 93*65*40 |
| Voltage(DC/V) | 6V,9V,12V,24V |
| Power(W) | 6 |
| Pressure(Kpa) | 160 |
| Vacuum(Kpa) | 65 |
| Free Flow rate(L/M) for air | 9 |
| Weight(G) | 300 |
Remark:
Usually
our pump has 4 kinds of voltage:6V, 9V,12V and 3
V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
Unlabeled tolerance is ± 0.1mm.
Pump Size:93*65*40mm
Pump Weight:300g;
Outlet:OD 6.5mm, silicone hose suggestion:ID 6mm
Materials:pump body: PC/PPS/Nylon, diaphragm: EPDM
Because we use imported ball bearing,the pump ’ s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.
Our company offers multiple component configurations allowing pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow can deliver up to 3 L/min and 11 L/M.
Usually our pump has 4 kinds of voltage:6V, 9V ,12V and 24 V .
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.
1.Electronic products,agriculture,finishing,light industry products
2.Analytic-al instruments
3.Chemical and production engineering
4.Various ancillary equipment
We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others. The fastest, but most expensive.
You can choose according to your needs.
So we are professional in producing pump.
Please remember our name: Shenzhen Yanhua Faith Pump
