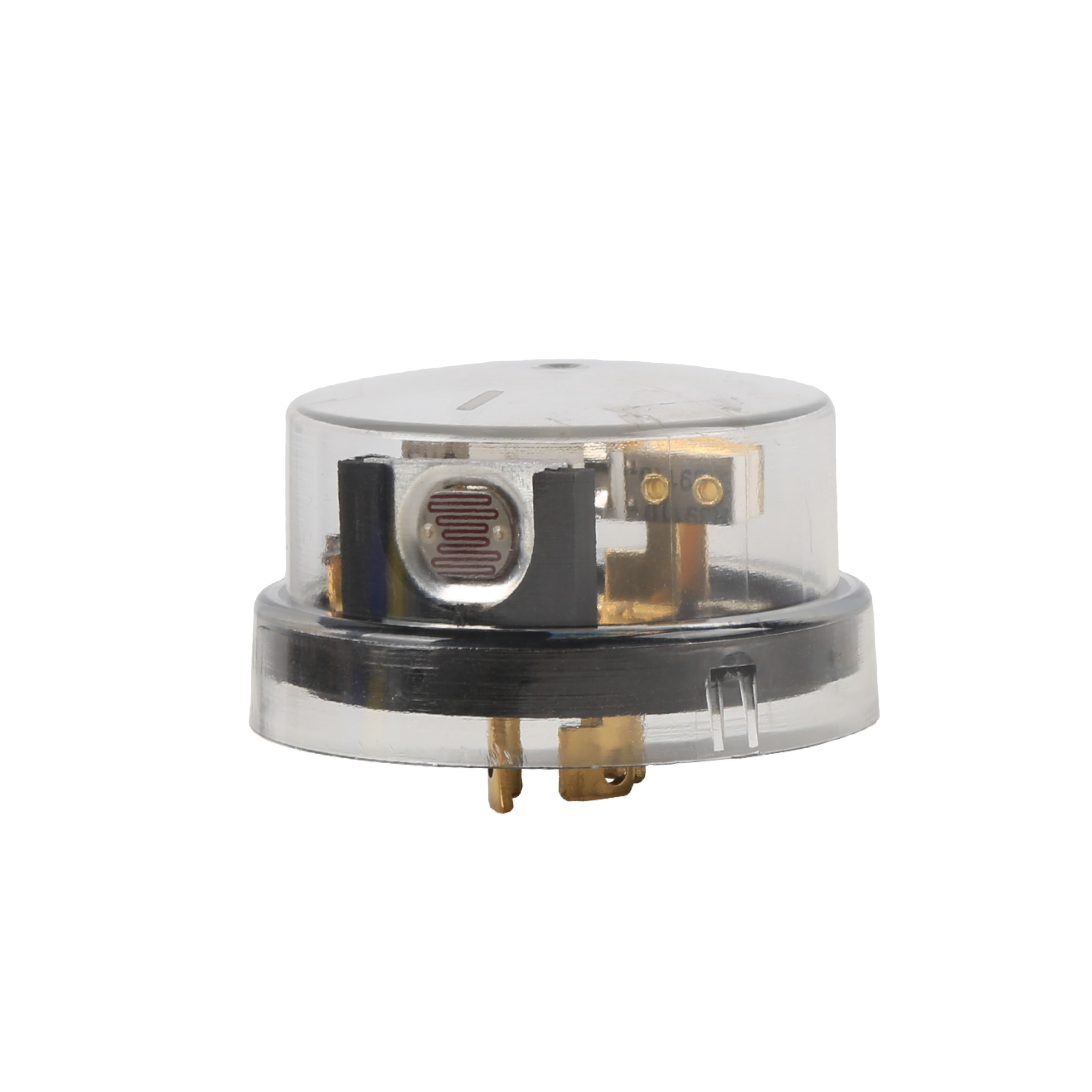

208-277V Photo Control LED Streetlight Photocell Sensor Lighting Sensor Control Photocontrol Photoelectric Sensor Switch

208-277V Photo Control LED Streetlight Photocell Sensor Lighting Sensor Control Photocontrol Photoelectric Sensor Switch

FOB Reference Price: Get Latest Price

≥3000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: LEAD TOP

Theory:: Optical sensor

Output:: Switching Transducer

Standard:: ANSI C136.10 & UL773

Rated Voltage:: 208-277V

Rated Load:: 2000W/1800VA

Frequency:: 50-60 Hz

Time Delay:: 30-180 Seconds

Operating Temperature:: -40℃ to +70℃

Cover:: Anti-UV Impact Resistance Polycarbonate (PC)

Base:: High Temperature ResistancePolybutylene Terephthalate (PBT)

Quick Details

Use:: Street Light

Model Number:: LT113-CR

Place of Origin:: Zhejiang, China

Brand Name:: LEAD TOP

Theory:: Optical sensor

Output:: Switching Transducer

Standard:: ANSI C136.10 & UL773

Rated Voltage:: 208-277V

Rated Load:: 2000W/1800VA

Frequency:: 50-60 Hz

Time Delay:: 30-180 Seconds

Operating Temperature:: -40℃ to +70℃

Cover:: Anti-UV Impact Resistance Polycarbonate (PC)

Base:: High Temperature ResistancePolybutylene Terephthalate (PBT)

PRODUCT DESCRIPTION

Technical Specification:

Standard: ANSI C136.10 & UL773
Rated Volts:208-277V
Rated Load:2000W/1800VA
Frequency:50-60 Hz
Turn-On Light Levels:10-16 Lux
Turn-Off Light Levels: 65 Lux
ON/OFF Ratio: 1:5
Time Delay: 30-180 Seconds
Operating Temperature: -40℃ to +70℃
Switch: >5000 ON/OFF Operations at Rated Load
Fail Mode: ON
Light Sensor: Cadmium Sulfide (Cds) Cell
Power Consumption: ≤ 0.7 watts at 120VAC
Cover: UV stabilized impact resistant polycarbonate (PC)
Base: High temperature polyester (PBT)
Ingress Protection: IP65 or IP66

DIMENSION
