Quick Details
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
4-72-5A/3.6A/4.5A, 6-30-5A/5.5A, 9-26-5.6A/4.5A/5A
-
Voltage:
-
220V/380V
-
MOQ:
-
1 set
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
4-72-5A/3.6A/4.5A, 6-30-5A/5.5A, 9-26-5.6A/4.5A/5A
-
Voltage:
-
220V/380V
-
MOQ:
-
1 set

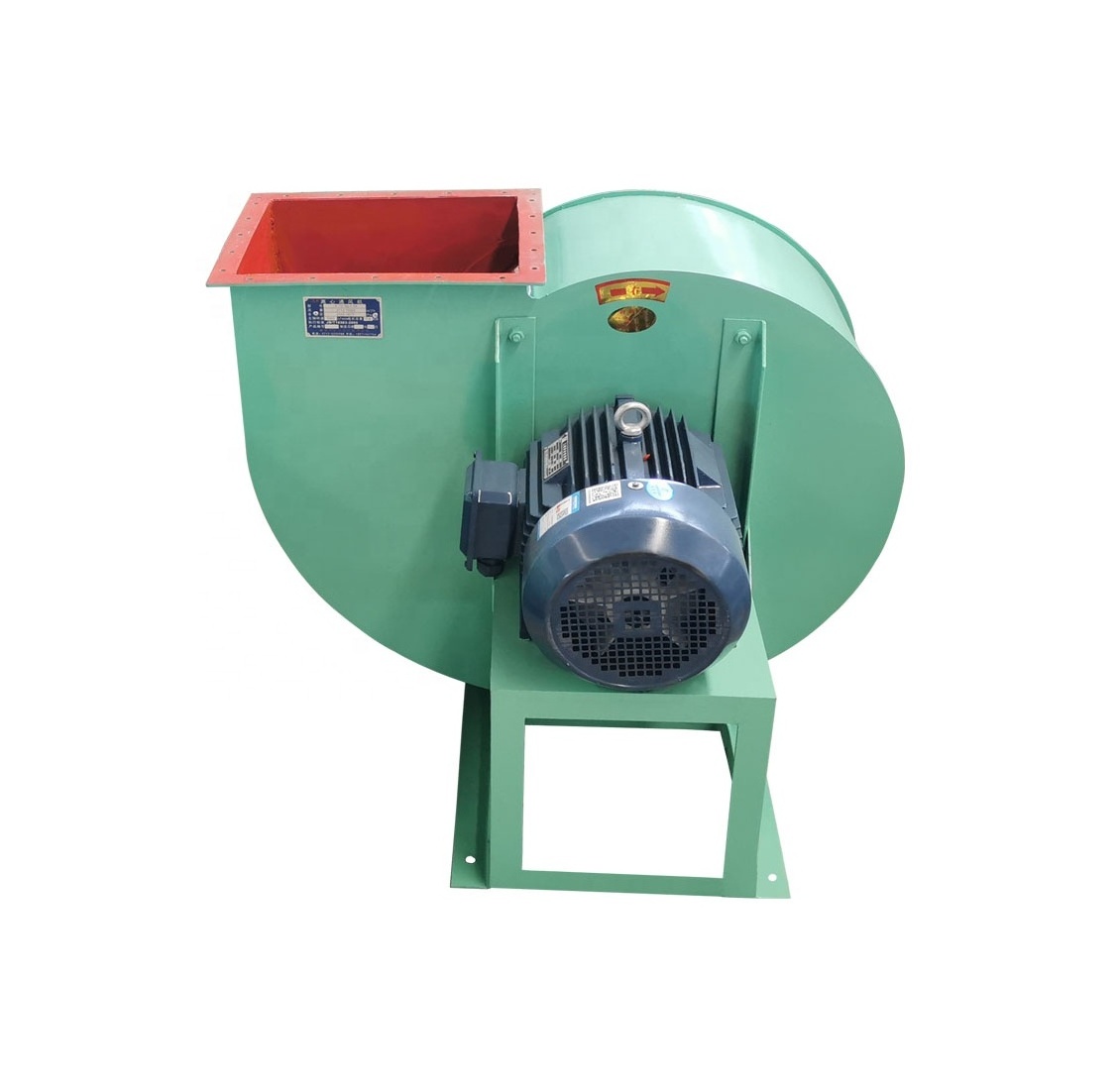

Low pressure 4-72 New Design High Quality inline duct centrifugal blower fan
This 4-72 centrifugal fan can convey air and other non spontaneous, harmless and non corrosive gases to steel. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150mg / m3.
The gas temperature shall not exceed 80 ° C. The fan is characterized by good aerodynamic performance, balanced operation, small vibration, high efficiency and long service life. Widely used in industrial and mining enterprises, large buildings, hotels, restaurants and other indoor ventilation.
Material: Cast Iron casing and impeller, 100% copper wire motor.
Votage: 220V/50Hz, single phase; 380V/50Hz, three phase.
Features
Technical Parameters:
| 4-72 Air Blower | ||||
| Model | 5A | 5.5A | 3.6A | 4.5A |
| Motor Type | 160M6-2 | y160l-2 | Y100L-2 | Y132S2-2 |
|
Power (kw) |
15 | 18.5-22 | 3 | 7.5 |
| Air Volume (m3/h) | 7728-15455 | 10285-20570 | 2664-5268 | 5712-10562 |
| Air pressure(Pa) | 3178-2019 | 4040-2443 | 1578-989 | 2554-1673 |
| Size (m) | 0.9x1x0.8 | 1x1x0.9 | 0.6x0.7x0.7 |
0.7x0.8x0.8 |
