Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
zhongguohebei
-
Brand Name:
-
shishang
-
Type:
-
glsaa wool
-
Product Name:
-

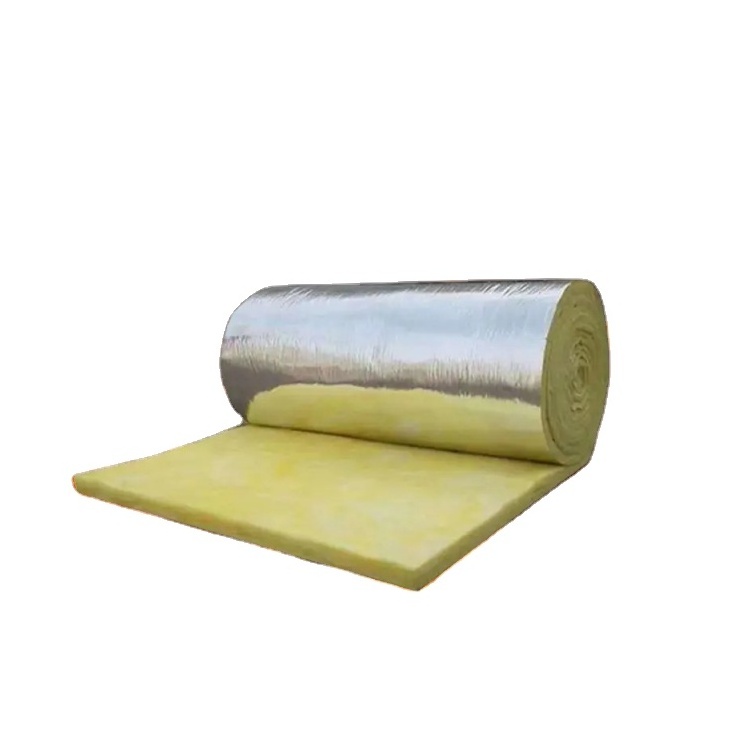

glass wool
-
Thickness:
-
25-200mm
-
Density:
-
10-96kg/m3
-
Length:
-
5-30mcustomizable
-
Width:
-
20cm-1250cmcustomizable
-
Thermal Conductivity:
-
0.034~0.042w/.k
-
fire rating:
-
A-grade non combustible
-
maximum service temperature:
-
440 degrees Celsius
-
fiber diameter:
-
≤7um
-
Color:
-
Yellow White pink
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
zhongguohebei
-
Brand Name:
-
shishang
-
Type:
-
glsaa wool
-
Product Name:
-
glass wool
-
Thickness:
-
25-200mm
-
Density:
-
10-96kg/m3
-
Length:
-
5-30mcustomizable
-
Width:
-
20cm-1250cmcustomizable
-
Thermal Conductivity:
-
0.034~0.042w/.k
-
fire rating:
-
A-grade non combustible
-
maximum service temperature:
-
440 degrees Celsius
-
fiber diameter:
-
≤7um
-
Color:
-
Yellow White pink
|
glass wool Technical Parameter
|
|
|
|
|
|||
|
project
|
unit
|
|
index
|
standard
|
|||
|
density
|
KG/m³
|
|
10kg-96kg/m³
|
GB/T 5480.3
|
|||
|
average fiber diameter
|
micron
|
|
5-8micron
|
GB/T 5480.4
|
|||
|
Flammability level
|
|
|
A-grade non combustible
|
GB 8624-1997
|
|||
|
water content
|
%
|
|
≤1
|
GB/T 16400-2003
|
|||
|
Operating temperature
|
℃
|
|
250-400℃
|
GB/T 11835-2007
|
|||
|
thermal conductivity
|
W/m.k
|
|
0.034-0.06
|
GB/T 10294
|
|||
|
hydrophobic
|
%
|
|
≥98
|
GB/T 10299
|
|||
|
moisture content
|
%
|
|
≤5
|
GB/T 5480.7
|
|||
|
Sound absorption coefficient
|
|
|
1.03 Product reverberation method 24kg/m3 2000Hz
|
GBJ 47-83型
|
|||
|
Content of slag inclusions
|
%
|
|
≤0.3
|
GB/T 5480.5
|
|||
|
Product specifications and models
|
|
|
|
|
|
|||
|
Product Name
|
length（mm）
|
|
Width（Diaeter）（mm）
|
Thickness（mm）
|
Density(kg/m³）
|
|||
|
Blanket
|
8000-30000
|
|
1150-1250
|
25-150
|
12kg-60kg
|
|||
|
Board
|
1000-3000
|
|
600-1200
|
15-150
|
24kg-96kg
|
|||
|
Shell
|
1000
|
|
27-325
|
30-200
|
45kg-64kg
|
|||
|
Batt
|
1160-1200
|
|
410-610
|
75-200
|
12kg-48kg
|
|||
