Small-scale IP65 Banner Photoelectric Sensors 5v 24v DC Infrared Ray Photoelectric Sensors Switch For AGV trolley

Small-scale IP65 Banner Photoelectric Sensors 5v 24v DC Infrared Ray Photoelectric Sensors Switch For AGV trolley

FOB Reference Price: Get Latest Price

≥1 Pieces

US $16.36

≥100 Pieces

US $13.77

≥500 Pieces

US $10.36

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SAKADY

Output:: NPN, PNP, Relay NO, Relay NC

Description:: Photoelectric switch

Power supply:: 12 ~ 24V DC

Certificate:: ISO,CCC,CE

Protection degree:: IP 65

Connection:: Connection

Quick Details

Usage:: Protection Security

Model Number:: GL25-D-NSD-1C

Place of Origin:: Zhejiang, China

Brand Name:: SAKADY

Output:: NPN, PNP, Relay NO, Relay NC

Description:: Photoelectric switch

Power supply:: 12 ~ 24V DC

Certificate:: ISO,CCC,CE

Protection degree:: IP 65

Connection:: Connection

Features

Ultra-small sensor: 10mm*20mm*30mm.
Using integrated IC manufacturing, strong anti-jamming performance.
Detection distance adjustable, NO and NC available.
Response fast.
Updated sensor with stronger anti-jamming performance.

Product Description

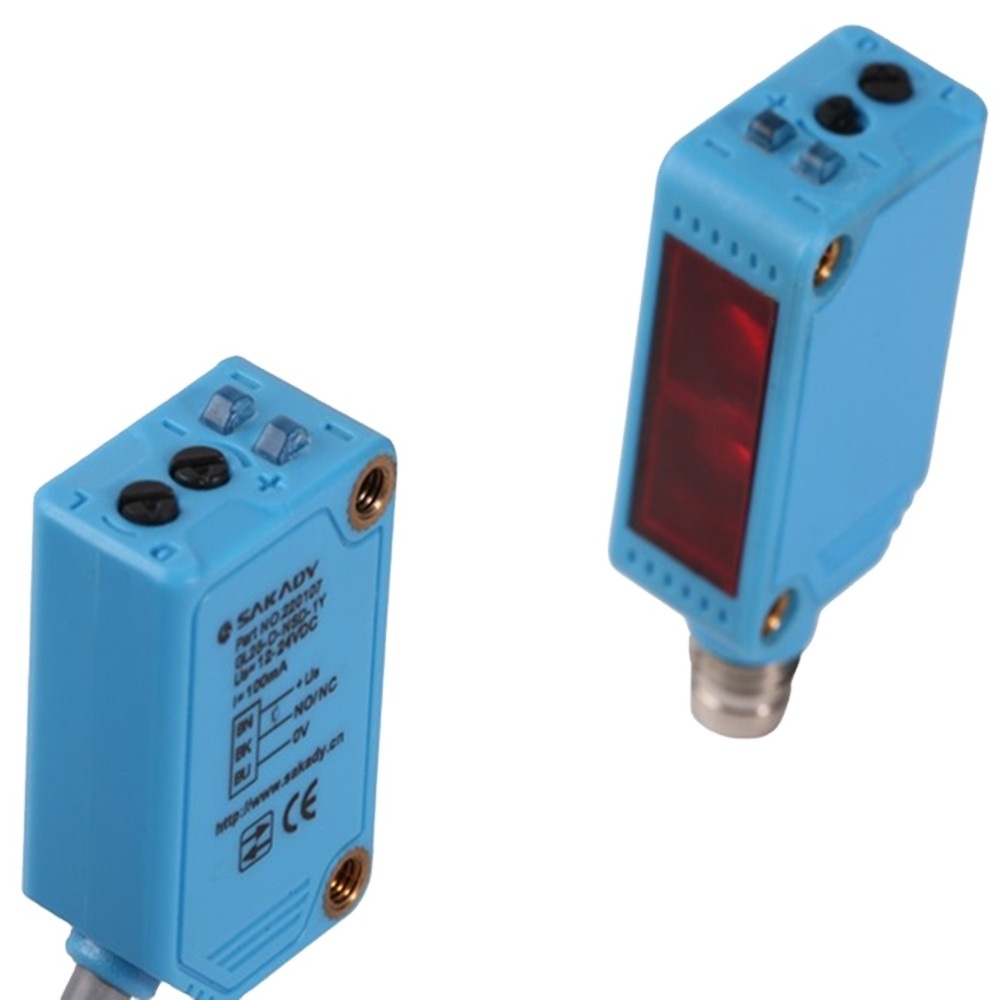

photo sensor light switch

Type		Through-beam type		Mirror reflection type		Diffuse reflection type
Connection		Lead type	Plug-in type	Lead type	Plug-in type	Lead type	Plug-in type
Model	NPN	GL25-D-NST -1 2Y	GL25-D-NST -12C	GL25-D-NSM -3Y	GL25-D-NST-3C	GL25-D-NSD -1Y	GL25-D-NSD -1C
	PNP	GL25-D-PST -12Y	GL25-D PST - 12C	GL25-D-PSM -3Y	GL25-D-PST-3C	GL25-D-PSD -1Y	GL25-D-PSD -1C
Sensing range		12m		3m(Note 2)		1m(Note 3)
Minimum sensing object		Ø18mm or more opaque object (Setting distance between emitter and receiver is12m)		Ø54mm or more opaque, translucent or transparent object(note2,4)		Opaque, translucent or transparent object(note4)
Deviation		—		—		3%～15% of operation distance(Note 3)
Supply voltage		12 ～ 24V DC±10%, Pulsation(P-P): less than 10%
Current consumption		Emitter: less than 25mA Receiver: less than 20mA		Less than 20mA		Less than 25mA
Output		NPN transistor Maximum sink current: 200mA Applied voltage: 24V DC or less(between output and 0V) Residual voltage: 1.5V or less PNP open-collector transistor Maximum sink current: 200mA Applied voltage: 24V DC or less(between output and +V) Residual voltage: 1.5V or less
Short-circuit protection		Incorporated
Sensitivity adjustment		—				Single direction knob
Response time		Less than 1ms
Operation indicator		Yellow LED lights up when the output is ON, incorporated on the receiver for Through-beam type
Power indicator		Green LED lights up when the power is ON
Environmental resistance	Population degree	3(industrial environment)
	Protection	IP65(IEC)
	Temperature	-25 ～+55℃(No dew condensation or icing allowed), Storage: -40 ～+70℃
	Humidity	50% RH (70℃)
	Light intensity	Incandescent light: less than 5,000Lux/Sunlight: less than 10,000Lux
	EMC	EN60947-5-2
	Voltage resistance	500V AC for one min. between all supply terminals connected together and enclosure
	Vibration resistance	10~55Hz frequency,0.5mm amplitude in X,Y and Z directions for 1.5 hours each
	Shock resistance	294m/s acceleration (30G approx) in X,Y and Z directions for three times each
Emitting element		Red LED(peak emission wavelength 850nm, modulated)
Material		Enclosure：ABS Lens:PMMA
Cable		One 3-core(rubber cable, 2m)
Attachment		A set of mounting screws
