Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIENM
-
Dimension(L*W*H):
-
Can be customized
-
Weight:
-
250KG
-
Usage:
-
Filling air fresher,paint,pesticide,cosmetic liquid, etc
-
Filling volume:
-
0-500ml
-
Capacity:
-
400-800 cans / hour
-
Suitable can diameter:
-
35-70mm
-
Working pressure:
-
0.5-0.7MPA
-
Suitable can height:
-
60-315mm
-
Filling accuracy:
-
±1%
-
Material:
-
SUS304/316
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO9001
-
Marketing Type:
-
Hot Product 2020
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
plywood
-
Filling Material:
-
Water, Oil
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIENM
-
Dimension(L*W*H):
-
Can be customized
-
Weight:
-
250KG
-
Usage:
-
Filling air fresher,paint,pesticide,cosmetic liquid, etc
-
Filling volume:
-
0-500ml
-
Capacity:
-
400-800 cans / hour
-
Suitable can diameter:
-
35-70mm
-
Working pressure:
-
0.5-0.7MPA
-
Suitable can height:
-
60-315mm
-
Filling accuracy:
-
±1%
-
Material:
-
SUS304/316
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO9001
-
Marketing Type:
-
Hot Product 2020

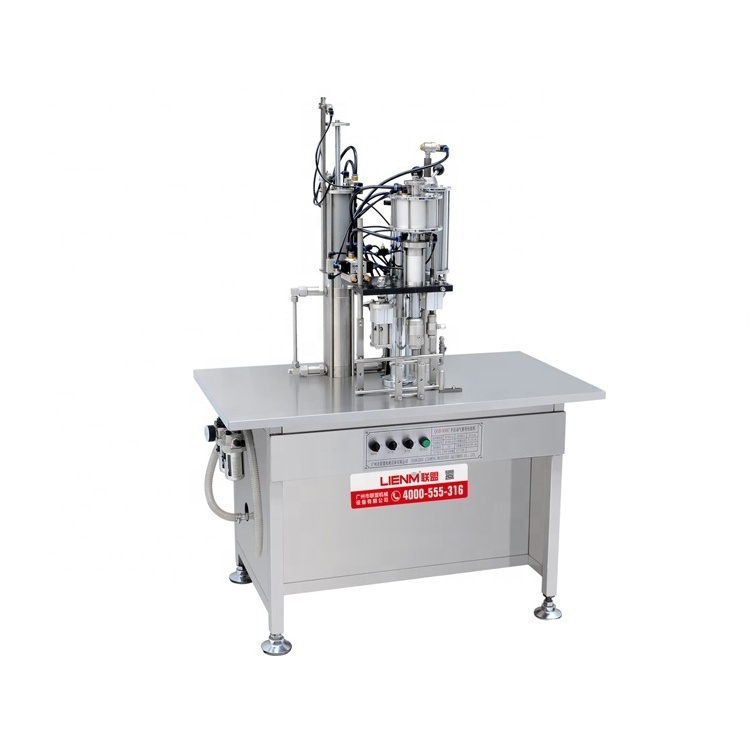

Semi Automatic Spray Paint Aerosol Tin Can Filling Machine Gas Filler Cans filler
Introduction: Semi Automatic Spray Paint Aerosol Tin Can Filling Machine Gas Filler
Semi Automatic body perfume Aerosol Filling Machine for Spray Cans filler is composed of gas filling-sealing machine, liquid filling machine, PLC control system, and workbench. It is applicable for binary(bag-on-valve) aerosol packing products making, this machine filling gas under-cap and crimping at the same working position, then filling liquid trough valve. The whole machine adopts PLC and touch screen control system, easy operation, security, precise metering, high precision filling volume.
Technical parameter : Semi Automatic Spray Paint Aerosol Tin Can Filling Machine Gas Filler
|
Filling Capacity |
400-800 cans / hour |
|
Filling Accuracy |
± 1% |
|
Applicable Aerosol Can Height |
60-315mm |
|
Applicable Aerosol Can Diameter |
35-70mm |
|
Filling Volume |
0-500mm |
|
Working Pressure |
0.5-0.7MPA |
|
Driving Type |
Pneumatic & electric type |
|
size |
L1200*W650*H1670mm
|
|
weight |
250kg |
Feature Semi Automatic Spray Paint Aerosol Tin Can Filling Machine Gas Filler
Semi Automatic body perfume Aerosol Filling Machine for Spray Cans filler
This machine is semi-automatic, there is a single working table seated on the working table which combines the function of vacuum, propellant filling and crimping, more economic propellants are optional for customer such as N2, Co2, DME,PLG.Ar or even compressed air.
Material Information:
Semi Automatic body perfume Aerosol Filling Machine for Spray Cans filler 80% of the main parts of our products are provided by world famous suppliers.
|
Wooden box , ( with fumigation ) , match 1 packing list , 1 set wrench , 1pc English manual and some easy damage parts. |
| Delivery Time | Shipped in 30 days after payment |
