Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Canhua
-
Voltage:
-
customized as clients local voltage
-
Dimension(L*W*H):
-
3680*1800*2400mm
-
Marketing Type:
-
Ordinary Product,New Product 2022
-
Weight (KG):
-
3200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Vibration force:
-
40kn
-
Intensity pressure:
-
15-20Mpa
-
Molding cycle:
-
15-20s
-
Control system:
-
Hyraulic PLC conctrol
-
Pallet size:
-
850*550*30mm
-
Needed Worker:
-
3-4people
-
Power of host machine:
-
16.35kw
-
Machine color:
-
According to your request
-
Block mould size:
-
According to your request
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Canhua
-
Voltage:
-
customized as clients local voltage
-
Dimension(L*W*H):
-
3680*1800*2400mm
-
Marketing Type:
-
Ordinary Product,New Product 2022
-
Weight (KG):
-
3200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Vibration force:
-
40kn
-
Intensity pressure:
-
15-20Mpa
-
Molding cycle:
-
15-20s
-
Control system:
-
Hyraulic PLC conctrol
-
Pallet size:
-
850*550*30mm
-
Needed Worker:
-
3-4people
-
Power of host machine:
-
16.35kw
-
Machine color:
-
According to your request
-
Block mould size:
-
According to your request
PRODUCT DESCRIPTION

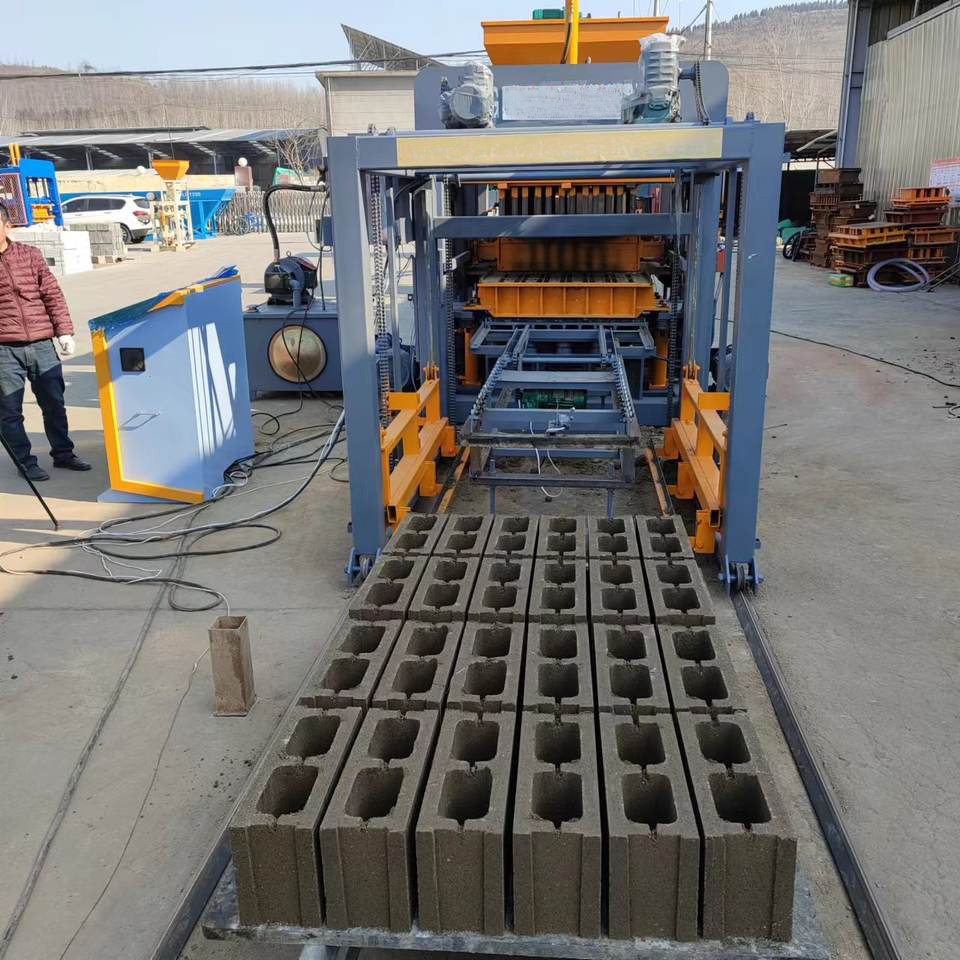

QT4-15 automatic concrete brick making machinery hollow block machine
QT4-15
Fully Automatic Stacking Brick Making Machine Plant use PLC intelligent control, make the man-machine interface as true, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function，adopting advanced hydraulic pressure technology and vibration technology, can ensure the block quality is very strong. We cooperated with SIEMENS, SCHNEIDER, OMRON , YUKAN and so on to make sure our block machine with high quality and keep our machine work more stable.
1).Workers:
Three to Five.
2).
Area:
Workshop area: 80-160m2, all factory area 1500-3000m2, the bigger, the better.
3). Ratio of raw material:
cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5
4). Hollow block weight:
(400*200*200) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5). Raw material consumption per day:
50-70T,Water consumption per day:3%-5% of raw material Weight.
6). Block plant investment amount range:
12000-23000 USD
|
Main Technical Specifications
|
|
|
|
Overall Dimension
|
3600×1800×2800mm
|
|
|
Vibration force
|
40KN
|
|
|
Main vibration form
|
Platform vibration, mould vibration etc.
|
|
|
Cycle Time
|
15-20s
|
|
|
Power
|
28.55KW
|
|
|
Pallet Size
|
850 ×550 ×30mm
|
|
|
Intensity of pressure
|
15-20mpa
|
|
|
Raw Materials
|
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
|
|
|
Applied Products
|
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
|
PRODUCT ADVANTAGE
PRODUCT CAPACITY
CUSTOMIZED SERVICE
All the machine color and mould type can be customized! Free design brick factory for you!
OUR CUSTOMER
OUR FACTORY
Shandong Canhua International Trade Co.,Ltd
Shandong Canhua International Trade Co.,Ltd
is the professional manufacturer and exporter for block machine technology. Our company is located inLinyi city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers. We cooperate with SIEMENS for Motors and PLC intelligent control system,Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad. We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
1. Professional R&D Team
Company owns research,design,manufacture,sale after-sales service.
2.Excellent Service
Multiple payment method,provide free training,free spare parts,24 hours online service,provide intergrated block making solutions
3.European technical standards,Strict quality control
Every machine before delivery,need be carefully checked to meet domestic quality standard and export standard.
Welcome to the video inspection at any time！
