Quick Details
-
Application:
-
Formwork Scaffolding Steel Prop, Supporting Formwork Scaffolding System
-
Design Style:
-
Light Duty Heavy Duty Steel Prop
-
Place of Origin:
-
CHN
-
Brand Name:
-
HB TRICO
-
Model Number:
-
D0472
-
Product name:
-
Galvanized Steel Pop Acrow Prop Shoring Prop
-
Material:
-
Q235
-
Surface treatment:
-
Hot Dip Galvanized, Electric Galvanized, Painted
-
Type:
-
Light Duty, Heavy Duty
-
Standard:
-
Middle East/Italian/Europe
-
Size:
-
40/48mm, 48/60mm, 63/76mm
-
Packing:
-
Bundle, Pallet
-
Usage:
-
Concrete Construction Support
-
MOQ:
-
100 Sets
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Formwork Scaffolding Steel Prop, Supporting Formwork Scaffolding System
-
Design Style:
-
Light Duty Heavy Duty Steel Prop
-
Place of Origin:
-
CHN
-
Brand Name:
-
HB TRICO
-
Model Number:
-
D0472
-
Product name:
-
Galvanized Steel Pop Acrow Prop Shoring Prop
-
Material:
-
Q235
-
Surface treatment:
-
Hot Dip Galvanized, Electric Galvanized, Painted
-
Type:
-
Light Duty, Heavy Duty
-
Standard:
-
Middle East/Italian/Europe
-
Size:
-
40/48mm, 48/60mm, 63/76mm
-
Packing:
-
Bundle, Pallet
-
Usage:
-
Concrete Construction Support
-
MOQ:
-
100 Sets

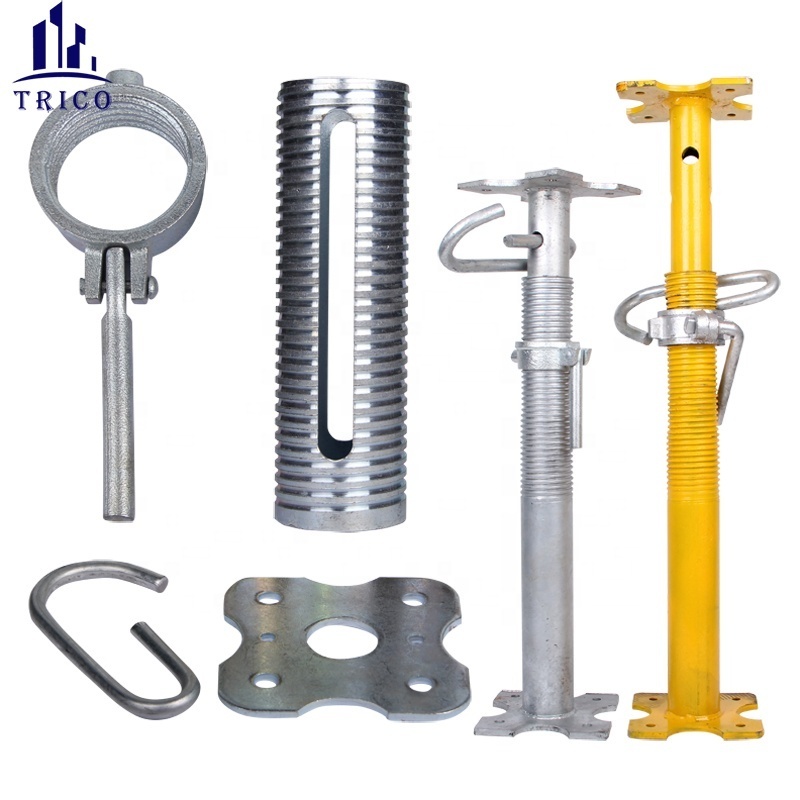

Adjustable Steel Prop/Acrow Prop/Shoring Prop
1. A complete set of steel prop consists of Top Plate, Base Plate,Inner pipe,outer pipe,Prop Sleeve, Prop Nut, Support Pin or G Pin, Tripod and Fork Head.
2.The steel prop is easy to assemble and disassemble due to its simple structure.
3. Can be adjusted to any length within its range;it can be reused.
4. Widely used in proping system such as construction,plants and bridge etc.
| Picture | Commodity | Specification | Surface |
|
Prop Sleeve |
Diameter: 60mm,76mm Length: 195mm,210mm,250mm Thickness: 2.75mm,3.0mm,3.25mm,3.5mm Other Sizes are Available |
Black, Galvanized |
|
Prop Nut |
Diameter: 60mm,76mm Weight: 270g, 380g,450g,670g,1220g, etc. Other Sizes are Available |
Black, Galvanized |
|
Flat Type |
120*120mm, 150*150mm, etc Other Sizes are Available |
Black, Galvanized |
| Flower Type | |||
|
Wire Pin |
Diameter: 11mm,12mm Material: Q195, Steel #45 |
Painted, Galvanized |
| Chain Pin | |||
| G Pin | Diameter: 11mm,12mm, 16mm | Galvanized | |
| Fork Head |
Weight; 2.2kgs, 2.5kgs Other Sizes are Available |
Galvanized | |
| Tripod |
Weight:5.5kgs Other Sizes are Available |
Painted, Galvanized |
| Acrow Prop | ||||
| Commodity | Adjust Length | ID/OD | Plate Size | Packing |
| Acrow Prop-1 | 1040mm-1830mm | 48mm/60mm | 150mmx150mm | 50pcs/pallet |
| Acrow Prop-2 | 1750mm-3120mm | |||
| Acrow Prop-3 | 1980mm-3380mm | |||
| Acrow Prop-4 | 2950mm-3960mm | |||
| Acrow Prop-5 | 3200mm-4860mm | |||
| Other Size is Available | ||||
| Italian Type Prop | ||||
| Adjust Length | ID/OD | Tube Thickness | Surface Treatment | Packing |
| 1600mm-2900mm | 48mm/56mm | 1.6mm/1.8mm/2.0mm/2.2mm | Galvanized or Painted | pallet as demend |
| 1800mm-3200mm | ||||
| 2000mm-3600mm | ||||
| 2200mm-4000mm | ||||
| Other Size is Available | ||||
| Spanish Type Prop | ||||
| Adjust Length | ID/OD | Tube Thickness | Surface Treatment | Packing |
| 1600mm-2900mm | 40mm/48mm | 1.6mm/1.8mm/2.0mm/2.2mm | Galvanized or Painted | pallet as demand |
| 1800mm-3200mm | ||||
| 2000mm-3600mm | ||||
| 2200mm-4000mm | ||||
| Other Size is Available | ||||
Formwork Tie Rod System
It is important for Wall Concrete Construction. Accessories include Tie Rod, Tie Nut, Wing Nut, Water Stopper, Hex Nut, Steel Cone and Washer Plate, etc. Tie Nuts can be OEM.
Aluminum Forming System
Wall Tie Nominal&Full Tie
Round Head Pin, Flat head Pin, Comboo Pin and OEM Supporting
Straight Wedge, Curved Wedge is available
