Quick Details
-
Model Number:
-
HY200ZH-F
-
Size:
-
Standard Size
-
Color:
-
Red/Yellow/Orange/Green/Blue
-
Engine:
-
200cc Lifan Engine
-
Cargo Size:
-
1500*1000*1000mm
-
Max speed(km/h):
-
60km/h
-
Tire size:
-
5.00-12,5.00-12 (interchange)
-
Rear axle:
-
Chang'an car rear axle
-
Brake:
-
drum brake
-
Max loading capacity:
-
800kg
-
Rear shocker:
-
7 lever steel plate with spring
Quick Details
-
Displacement:
-
201 - 250cc
-
Brand Name:
-
HY/OEM
-
Place of Origin:
-
Chongqing, China, China (Mainland)
-
Model Number:
-
HY200ZH-F
-
Size:
-
Standard Size
-
Color:
-
Red/Yellow/Orange/Green/Blue
-
Engine:
-
200cc Lifan Engine
-
Cargo Size:
-
1500*1000*1000mm
-
Max speed(km/h):
-
60km/h
-
Tire size:
-
5.00-12,5.00-12 (interchange)
-
Rear axle:
-
Chang'an car rear axle
-
Brake:
-
drum brake
-
Max loading capacity:
-
800kg
-
Rear shocker:
-
7 lever steel plate with spring

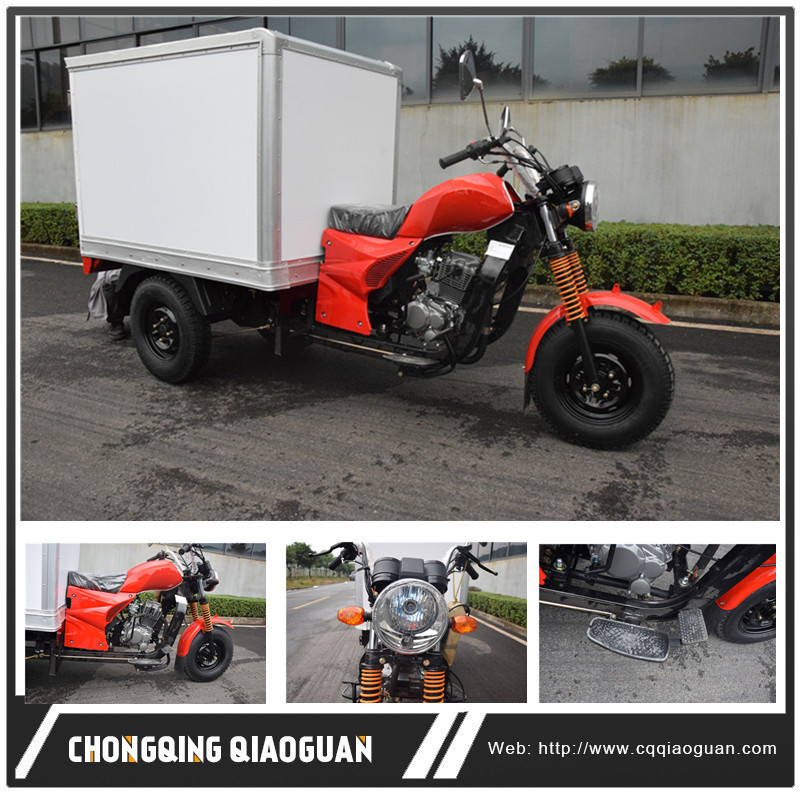

150cc/200cc/250cc engine Berang three wheel tricycle motorcycle in Afghan
1. Features
1. Lifan/Zongshen/Yinxiang air cooled or water cooled engine, high performance
2. Chasis and cargo box, all using pickling and phosphoating, electrophorectic painting.
3. OEM is acceptable
4. Original factory located at Chongqing, mature supplying manufacturing system
2. Product Specification:
|
ENGINE AND TANSMISSION |
|
|
Engine |
200CC single cylinder, air-cooled, 4- stroke, manual clutch. |
|
Engine Brand |
LIFAN |
|
Total displacement |
197.0ml |
|
Bore x Stroke |
63.5X62.2MM |
|
Compression ratio |
10.16:1 |
|
Max Power |
≥11.5KW/8000 r/min |
|
Max Torque |
≥15.0N.m/6000 r/min |
|
Idling speed |
1500 r/min |
|
Ignition |
C.D.I |
|
Lubrication |
Pressure splash |
|
Transmission |
5 speed with reverse |
|
Starter |
Kick start&electric start |
|
Final drive |
Shaft drive |
|
Oil consumption |
≤2.8L in 100KM |
|
PARTS AND COMPONENTS |
|
|
Chassis |
40*80Chassis |
|
Front suspension |
High arm absober |
|
Rear suspension |
7 lever steel plate with spring |
|
Rear axle |
Chang'an car rear axle |
|
Brake system |
Drum brake |
|
Tyre |
5.00-12,5.00-12 (interchange) |
|
DIMENSIONS AND CAPACITY |
|
|
N.W |
400KG |
|
Max loading |
800kg |
|
Dimension |
3400*1500*1550MM |
|
Max speed |
60km/h |
|
Ground clearance |
200mm |
|
Axle base |
1950mm |
|
Wheel base |
2050mm |
|
FUEL TANK |
12L |
|
Cargo box |
1500*1050*1000mm |
|
Cabin Material |
No |
|
CONTROLS |
|
|
Control |
Handle Bar |
|
CLUTCH |
Manual, wet, multiple |
|
PACKING |
|
|
Loading Capacity:40’HQ container in CKD |
55units |
|
20’GP container in CKD |
20units |
1.Q: Can I order a sample?
A: Yes, we accept sample for trial order.
2. Q: What’s the delivery time?
A: It usually takes about 15 to 20 days. But the exact delivery time vary based on the order quantity and our current production plans.
3. Q: Which colors will be available?
A: Normally, we will introduce the most popular color to customers. And we are able to make colors according to customer’s demands.
4. Q: Can I use my logo on the product?
A: Yes, we can make the customers’ logo on any tricycle.
5. Q: How to delivery to foreign buyer?
A: For full container order, usually by sea.
