Quick Details
-
Power:
-
2.2kw
-
Rated Loading Capacity:
-
250kg
-
Min. Lifting Height:
-
80mm
-
Max. Lifting Height:
-
4m
-
Table Size:
-
1200*1000mm
-
Overall Dimensions:
-
4.8*1.3*0.8m
-
Weight:
-
600kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Speed:
-
60mm/s
-
Power Output:
-
1.5kw
-
Power Input:
-
220V/50HZ/25A (or customized for local power supply)
-
Materials:
-
Stainless steel
-
Application:
-
Wheelchair Lift
-
Product name:
-
Vehicle Wheelchair Lift
-
Color:
-
Customers' Requirements
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Certification:
-
CE certificate
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WL
-
Power:
-
2.2kw
-
Rated Loading Capacity:
-
250kg
-
Min. Lifting Height:
-
80mm
-
Max. Lifting Height:
-
4m
-
Table Size:
-
1200*1000mm
-
Overall Dimensions:
-
4.8*1.3*0.8m
-
Weight:
-
600kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Speed:
-
60mm/s
-
Power Output:
-
1.5kw
-
Power Input:
-
220V/50HZ/25A (or customized for local power supply)
-
Materials:
-
Stainless steel
-
Application:
-
Wheelchair Lift
-
Product name:
-
Vehicle Wheelchair Lift
-
Color:
-
Customers' Requirements
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Certification:
-
CE certificate
used home elevators for sale vertical platform lift for disabled
Introduction

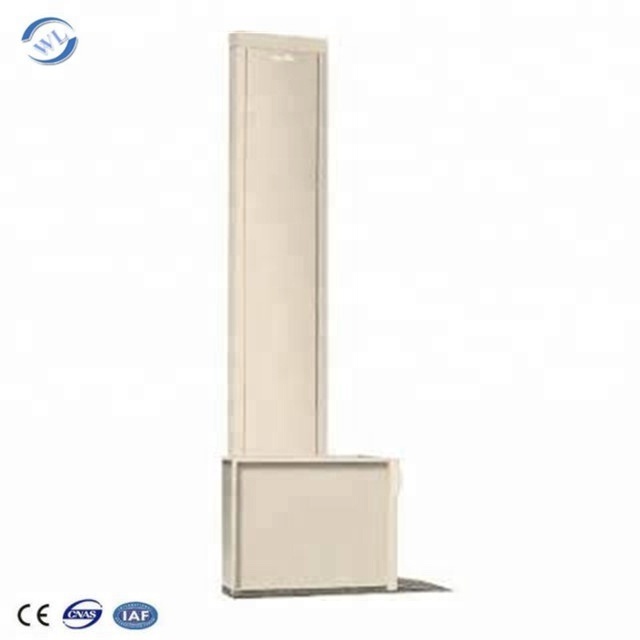

Lift Mechanism wheelchair lift
Drive system: Two chain hydraulic operated systems available.
Height of Platform Lift
- Height of lifts may be from a few steps, to three floors.
- Number of stops – up to three.
Roll-on Access
- Access to the platform is typically either a fixed access ramp, or optional ramp for applications where there is no pit.
Call Buttons
- Call Buttons may be mounted in gate frame, surface mounted on wall, or flush mounted into the wall.
Safety Features
- The under-platform sensor detects when an object is blocking the lift’s path, helping to prevent damage to the item or lift.
- Platform controls use a constant pressure rocker switch, with key operation, emergency stop, and alarm buttons.
- High guard panels with grab rail.
Weight Capacity
- Rated load: up to 320kg.
Dimensions
- The interior of the lift is a non-skid platform. Lifts are available in different dimenions, with platform sizes of 36”x 48”, 36”x54”, 36”x60”, as well as other custom sizes.
Materials and Colours
- Many lifts have a powder coat finish, a more durable treatment than paint.
- Special order colors are available on some models – choose from over 180 colors to perfectly match your home or facility.
Location / Usage wheelchair lift
- Wheelchair lifts may be installed indoor or outdoor. Outdoor lifts have features to protect the lift from weather elements.
- We install safety-regulation-approved lifts for both residential and commercial use. Our lifts and installations meet or exceed the CSA codes for both commercial and residential installations.
Machine show Small elevators for homes, stair lift wheelchair lift
Specification
| Model |
Travel Height (m) |
Load Capacity (kg) |
Platform size (mm) |
Overall dimension (m) |
Self weight (kg) |
| WLW-1 | 1 | 250KG | 1200*1000 | 1.6*1.3*0.8 | 200 |
| WLW-1.5 | 1.5 | 2.3*1.3*0.8 | 250 | ||
| WLW-2 | 2 | 2.7*1.3*0.8 | 320 | ||
| WLW-2.5 | 2.5 | 3.2*1.3*0.8 | 400 | ||
| WLW-3 | 3 | 3.8*1.3*0.8 | 450 | ||
| WLW-3.5 | 3.5 | 4.3*1.3*0.8 | 520 | ||
| WLW-4 | 4 | 4.8*1.3*0.8 | 600 | ||
| WLW-5 | 5 | 5.8*1.3*0.8 | 720 | ||
| WLW-6 | 6 | 6.8*1.3*0.8 | 850 |
Usage
Packing and delivery
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Remarks:
1. All of the products will be full tested before delivery.
2. Payment: By T/T in advance
3. Delivery: within 15 days after receipt of T/T payment
4. Min. order: I unit
5. Validity: 30 days
After-sale service
1. We provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price from us.
3. Email/ Skype/ MSN/ Trade manager online to support.
4. Life-long Technical Support and After-sale Service free of charge.
5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
6. Free and Professional Training at our Factory under the relaxed condition.
1. How about the delivery time?
Within 10 working days after we receive the payment.
2. What kind of payments do you support?
T/T in advance, L/C, Western Union, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, OEM is also available.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u. At the same time, pls rest assured that your information is also safe here
