Quick Details
-
Model Number:
-
DTCN
-
Voltage:
-
customized
-
Rated Power:
-
customized
-
Dimension(L*W*H):
-
standard
-
Weight (KG):
-
2000 KG
-
Year:
-
2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing:
-
container
-
Certification:
-
CE
-
Rails span:
-
4000-6000mm
-
Effective cutting width:
-
3200-5200mm
-
CNC Min.cutting width:
-
230mm
-
Strip Min.cutting width:
-
80mm for cnc turning machine
-
Thinckness of steel plate-cutting:
-
6-100mm
-
Speed of steel plate-cutting:
-
005-1m/min
Quick Details
-
Dimensions:
-
standard
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATANG
-
Model Number:
-
DTCN
-
Voltage:
-
customized
-
Rated Power:
-
customized
-
Dimension(L*W*H):
-
standard
-
Weight (KG):
-
2000 KG
-
Year:
-
2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing:
-
container
-
Certification:
-
CE
-
Rails span:
-
4000-6000mm
-
Effective cutting width:
-
3200-5200mm
-
CNC Min.cutting width:
-
230mm
-
Strip Min.cutting width:
-
80mm for cnc turning machine
-
Thinckness of steel plate-cutting:
-
6-100mm
-
Speed of steel plate-cutting:
-
005-1m/min
|
Model
|
DTCN-4000
|
DTCN-4500
|
DTCN-5000
|
DTCN-5500
|
DTCN-6000
|
||||
|
Rail distance(mm)
|
4000
|
4500
|
5000
|
5500
|
6000
|
||||
|
Valid Cutting Width(mm)
|
3200
|
3700
|
4200
|
4700
|
5200
|
||||
|
Rail length(mm)
|
15000(Can be designed as required)
|
|
|
|
|
||||
|
Valid cutting length(mm)
|
12500(Can be designed as required)
|
|
|
|
|
||||
|
Cutting speed(mm/min)
|
50-1000(Speed adjust as per thickness)
|
|
|
|
|
||||
|
Back speed(mm/min)
|
4000
|
|
|
|
|
||||
|
Cutting thickness(mm)
|
6-100(Single cutting torch 100mm)
|
|
|
|
|
||||
|
Cutting precision(mm/m)
|
±0.5
|
|
|
|
|
||||
|
Roughness of surface
|
Ra 12.5-25
|
|
|
|
|
||||
|
Cutting gas source
|
Oxygen and Acetylene or propane
|
|
|
|
|
||||
|
Voltage
|
220V-1PH-50HZ (Other voltage can customized)
|
|
|
|
|
||||

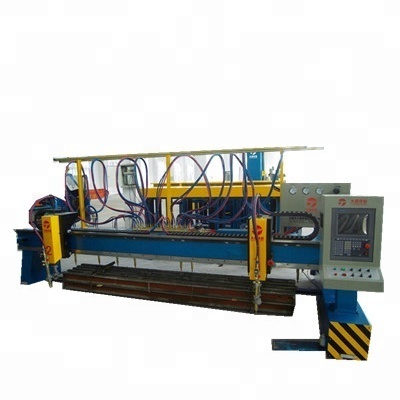

This series of cutting machine is of gantry. All the stricture members are annealed, shot-blasted integrally and painted. Guide-rail in the frame are treated with high-frequency, then ground and paneled together.
Precise Positioning
![]()
The advantage is: Good rigidity, high precision, stable structure and so on. Linear triple-tocvh, infinite-revolving triple torch and plasma torch can be equipped based incustomer requirement.
Torch elevation unit it adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hang-type or drag-chain type.
