Quick Details
-
Installation:
-
Internal
-
Brand Name:
-
Syncotek
-
Model Number:
-
SK-288
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Manual Insert Card Reader
-
Optional components:
-
Power-down protection plate and PASM board (4 / 8 bits).
-
Two anti-skimming ways:
-
software and hardware
-
IC Card standard:
-
ISO7816-2
-
RFID Card standard:
-
ISO/14443-M one
-
Applocation:
-
Vending machine
-
Operation:
-
0~50oC/0~90%RH(No condensing)
-
Power supply:
-
DC 5V +/-5%
-
Weight:
-
350g
Quick Details
-
Type:
-
Other Type
-
Interface:
-
usb
-
Card Slots:
-
All in 1 / Multi in 1
-
Installation:
-
Internal
-
Brand Name:
-
Syncotek
-
Model Number:
-
SK-288
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Manual Insert Card Reader
-
Optional components:
-
Power-down protection plate and PASM board (4 / 8 bits).
-
Two anti-skimming ways:
-
software and hardware
-
IC Card standard:
-
ISO7816-2
-
RFID Card standard:
-
ISO/14443-M one
-
Applocation:
-
Vending machine
-
Operation:
-
0~50oC/0~90%RH(No condensing)
-
Power supply:
-
DC 5V +/-5%
-
Weight:
-
350g

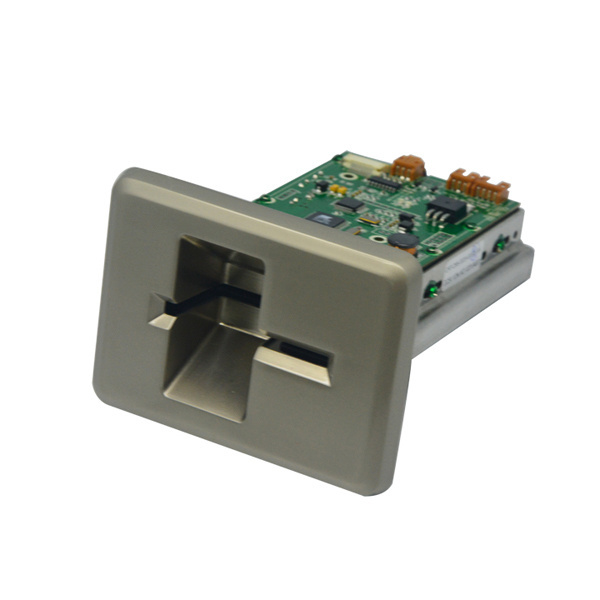

Locking Function Manual Insert Card Reader
Features:
*2 in 1: IC/RF card read/write, the two features can be used alone or simultaneously.
*Lock, Manual/Auto eject card: Auto lock card after insert, Manual/Auto eject card by release.
*Eyewinkers prevention: Half landing IC card contact with powerful self-cleaning function, one side open design, automatically obviate eyewinkers and broken card.
*Multi-bezel option: A, B, C, E types of bezel in metal and plastic material option.
*Durability: Each component with over 500,000 cycles durability.
*Customized service.
Applications:
*Multimedia kiosk
*Access control system
*Vending machine
*Gaming machine
*Refueling terminal
Specifications:
|
Model |
SK-288 |
|
Features |
EMV certified |
|
IC/RFID card read/write |
|
|
Mechanical lock structure |
|
|
Manual /auto card ejection |
|
|
Diversified bezels ,bracket and SAM slot |
|
|
Provide customized service |
|
|
Application |
Multimedia kiosk |
|
Access control system |
|
|
Vending machine |
|
|
Gaming machine |
|
|
Specification |
|
|
Card standard |
IC Card : ISO7816
|
|
Weight |
350g |
|
Mechanical life |
IC card Contact:300,000 cycles min
|
|
Communication |
RS-232/TTL |
|
Power supply |
DC 5V +/-5% |
|
Temperature/Humidity |
Operation:0~50
o
C/0~90%RH(No condensing)
|
