Quick Details
-
Brand Name:
-
Beacon
-
Model Number:
-
BP-A2
-
Motor:
-
7.5kw
-
Rotating speed:
-
0-4000
-
Temperature Control System:
-
Include
-
Hydraulic pump (MPa):
-
0-15
-
Torque (N.m):
-
0-4200
-
Number of turns:
-
0-9999.9
-
Corner:
-
±45°
-
Weight:
-
800KG
-
Size:
-
170*120*175cm
Quick Details
-
Warranty:
-
12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beacon
-
Model Number:
-
BP-A2
-
Motor:
-
7.5kw
-
Rotating speed:
-
0-4000
-
Temperature Control System:
-
Include
-
Hydraulic pump (MPa):
-
0-15
-
Torque (N.m):
-
0-4200
-
Number of turns:
-
0-9999.9
-
Corner:
-
±45°
-
Weight:
-
800KG
-
Size:
-
170*120*175cm

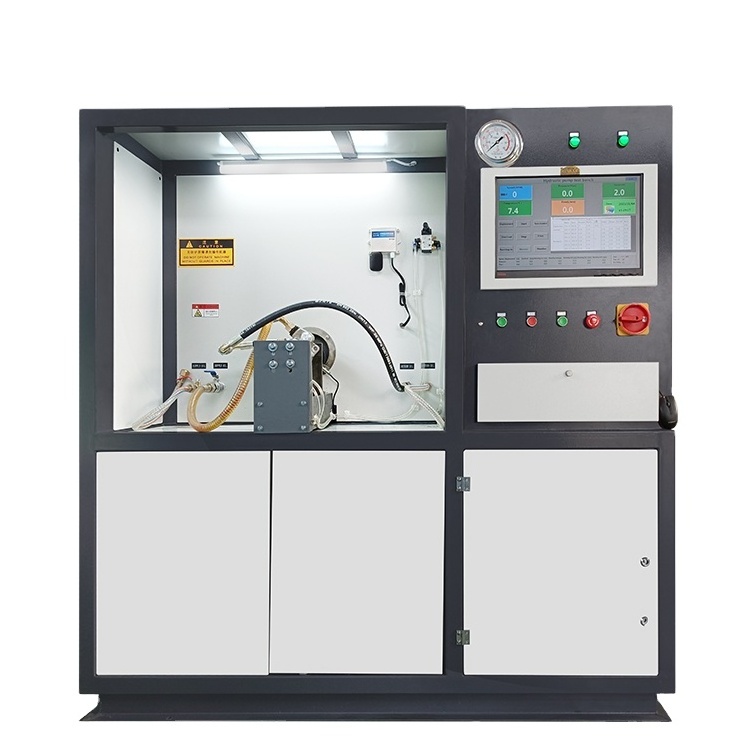

BP-A2 Electric power steering test bench hydraulic pressure testing pump test machine
Product Description
Product description:
Function:
Mainly detect the symmetry of the steering gear, left and right torque, internal leakage, steering, and unilateral heaviness. Various hydraulic steering system failures such as the working pressure, flow rate, tightness of the power steering pump and the tightness of related valves. The hydraulic pump can be used to adjust the working conditions of the hydraulic system at any time to detect various parameters of the components. It is especially suitable for the detection and testing of hydraulic steering and working performance of heavy-duty vehicles. The machine uses pressure gauges to display various parameters such as torque and working pressure. Adjustment items: Heavy steering, shock vibration, unstable steering, steering rebound, steering noise, oil leakage.
Technical parameters:
|
1. Motor
|
7.5KW
|
|
2.
Power
|
380V
|
|
3.
Rotating speed
|
0-4000
|
|
4. Temperature Control System
|
Include
|
|
5.
Hydraulic pump
|
0-15MPA
|
|
6.
Torque（N.m）
|
0-4200
|
|
7.
Number of turns
|
0-9999.9
|
|
8.
Corner
|
±45°
|
Specification
Use the newest Beijing Electronic Diesel System
