1.Application
***Rated current: 125A, 160A, 200A, 250A, 400A, 630A,1000A ,1250A,1600A,2500A,3000A
***Making and breaking circuit or electric isolate.
***switch conforms to IEC60947-3 and GB/T14048.3
2.Innovation structure:
***more compact and aesthetically
***Intergration can be installed more easier
***Easier to increase or decrease of function
3. Basic Specification and Main Parameters:
***Operation mode: 1)Direct operation 2) outside of cabinet
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GLOG-630A/4
-
Max. Current:
-
3200A
-

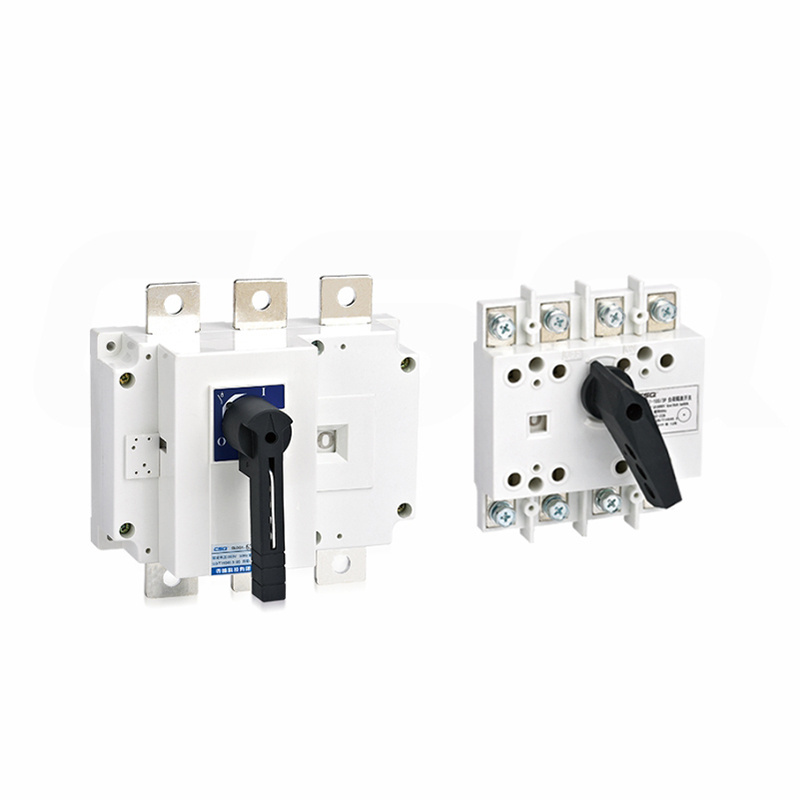

Product name:
-
Load Change Over Power Switch
-
Name:
-
isolator switch
-
Operating mode:
-
two type
-
Auxiliary contact:
-
available
-
Poles:
-
3 and 4
-
Use category:
-
AC-21, 22, 23B
-
design:
-
module
-
Symbol window:
-
yes
-
Pollution protection:
-
3 grade
-
Brand:
-
OEM & ODM
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
GLOG-630A/4
-
Max. Current:
-
3200A
-
Product name:
-
Load Change Over Power Switch
-
Name:
-
isolator switch
-
Operating mode:
-
two type
-
Auxiliary contact:
-
available
-
Poles:
-
3 and 4
-
Use category:
-
AC-21, 22, 23B
-
design:
-
module
-
Symbol window:
-
yes
-
Pollution protection:
-
3 grade
-
Brand:
-
OEM & ODM
-
Certification:
-
CE
Products Description
Product Paramenters
|
Current
|
160A
|
250A
|
630A
|
1600A
|
3200A
|
||||
|
Rated insulation voltage Ui
|
690V
|
|
|
|
|
||||
|
Rated impaction withstand voltage Uimp
|
8KV
|
|
|
|
|
||||
|
Rated working voltage Ue
|
AC380V
|
|
|
|
|
||||
|
Rated working current Ie
|
160A
|
250A
|
630A
|
1600A
|
3200A
|
||||
|
Position
|
I-O
|
|
|
|
|
||||
|
Rated making capacity
|
10Ie
|
|
|
|
|
||||
|
Rated breaking capacity
|
8Ie
|
|
|
|
|
||||
|
Rated limting short-circuit current
|
50KA
|
|
|
|
|
||||
|
Rated short time withstand current Ie
|
7KA
|
|
|
|
|
||||
|
Poles
|
3p & 4p
|
|
|
|
|
||||
|
Voltage of control power supply
|
AC220V
|
|
|
|
|
||||
|
Energy consumption of the motor
|
40W
|
|
|
|
|
||||
|
Weight Kg
|
2
|
3
|
5
|
20
|
50
|
||||
