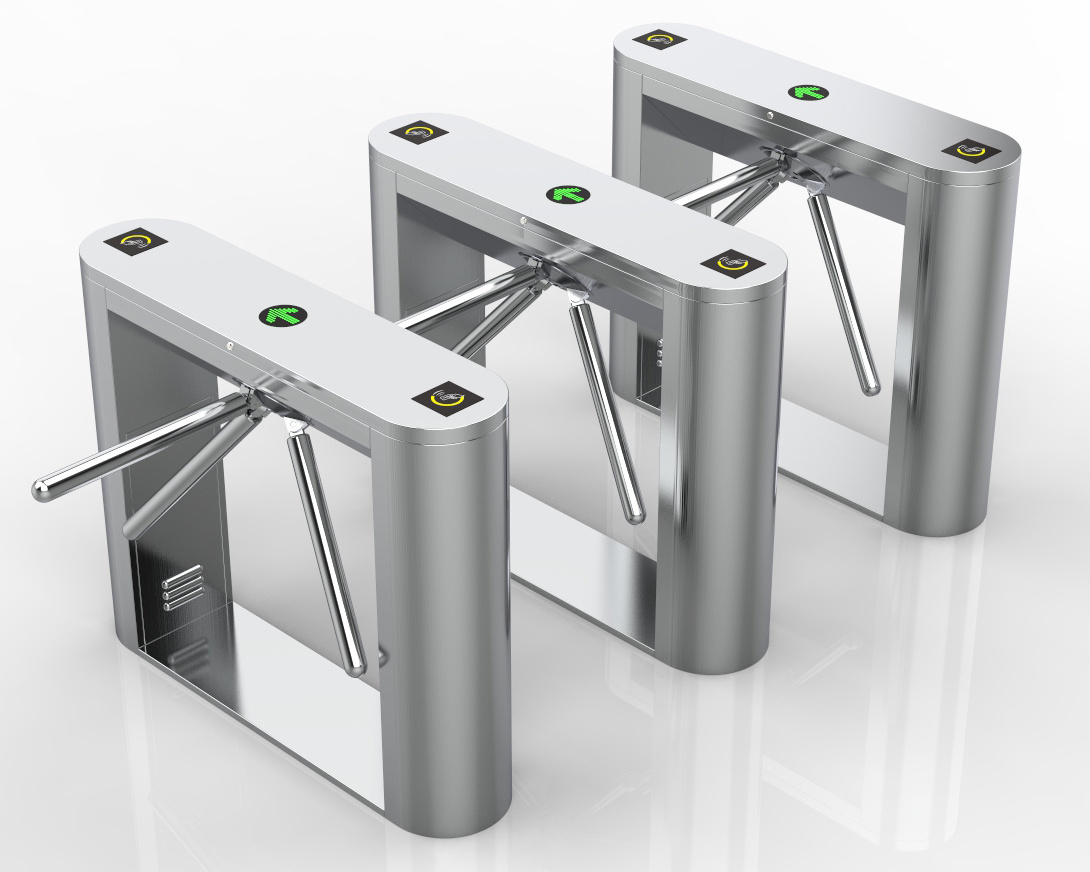

- Product Details
- {{item.text}}
Quick Details
-
Size(mm):
-
1200(L)*280(W)*980(H) standard
-
Cabinet material:
-
SUS304 stainless steel
-
Material thickness(mm):
-
1.2
-
Working environment:
-
Indoor Outdoor
-
Passing Speed:
-
25person/minutes
-
Rotary rod dimension(mm):
-
510(standard)
-
Warranty:
-
3 Years
-
Failure-free operation:
-
≥5,000,000 cycles
-
Power supply:
-
AC220V±, 50Hz
-
Operation temperature:
-
-30℃~60℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zecheng
-
Model Number:
-
ZC-S004
-
Size(mm):
-
1200(L)*280(W)*980(H) standard
-
Cabinet material:
-
SUS304 stainless steel
-
Material thickness(mm):
-
1.2
-
Working environment:
-
Indoor Outdoor
-
Passing Speed:
-
25person/minutes
-
Rotary rod dimension(mm):
-
510(standard)
-
Warranty:
-
3 Years
-
Failure-free operation:
-
≥5,000,000 cycles
-
Power supply:
-
AC220V±, 50Hz
-
Operation temperature:
-
-30℃~60℃
Products Description
Benefit and Advantages:
(1)Plexiglass is used in the swipe card area and status display area, and the base color is deep black
(2)Break-in alarm、Trailing alarm、Reversed break-in alarm
(3)Anti-pinch function、Infrared induction function and intelligent logic judgement
(4)Emergency evacuation function、Emergency-off function
(5)
Brushless
motor control system
(6)Intelligent deceleration braking system
(7)Stop when get blocked or reversible system
(8)Memory function of continuous swiping card
(9)Normally open/ normally closed/unidirection/setting free passage condition
(10)Checking working status and failure indication function when starting up
(11)Standard access interface, fire linkage and remote open-close function
Product Paramenters
|
Physical dimensions (mm):
|
1200(Length) * 280(width ) * 980 (height) customized optional
|
|
Cabinet material :
|
SUS304 stainless steel; Surface brushed treatment; Anti-fingerprint
|
|
Material thickness (mm):
|
1.2
|
|
Width of passage (mm):
|
550 (standard passageway)
|
|
Rotary rod dimension(mm)：
|
510(standard)
|
|
Rotary rod motion mode:
|
Double-way rotation
|
|
Gate open and close responding time:
|
＜0.1 seconds
|
|
Gate running speed:
|
Rad/s (adjustable)
|
|
Average times of failure-free operation :
|
≥5,000,000 cycles
|
|
Pass speed:
|
≥25/minutes (Normally closed type)
|
|
Application environment
|
Indoor/outdoor
|
|
Operation temperature:
|
- 30°C~60°C
|
|
Operation humidity :
|
≤90%, none condensation
|
|
Power supply:
|
AC220V±，50Hz
|
|
Average power consumption (W):
|
60
|
