Quick Details
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
1.5 GG, 3 GG, 7 GG, 12 GG, 14 GG, 2 GG, Other, 16 GG, 9 GG, 5 GG, 10GG, 2.5GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TL
-
Power:
-
2 W
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2750*8500*1800MM
-
Marketing Type:
-
New Product
-
Standard:
-
CE standard
-
Intarsia:
-
available
-
Yarn feeder qty:
-
16
-
Voltage:
-
220
-
flat knitting machine style:
-
shima seiki or stoll style
Quick Details
-
Type:
-
jacquard
-
Production Capacity:
-
speed: max 1.2m/s
-
Knitting Style:
-
knitting
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
1.5 GG, 3 GG, 7 GG, 12 GG, 14 GG, 2 GG, Other, 16 GG, 9 GG, 5 GG, 10GG, 2.5GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TL
-
Power:
-
2 W
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2750*8500*1800MM
-
Marketing Type:
-
New Product
-
Standard:
-
CE standard
-
Intarsia:
-
available
-
Yarn feeder qty:
-
16
-
Voltage:
-
220
-
flat knitting machine style:
-
shima seiki or stoll style
We have 20 years for knitting machine sweater patterns

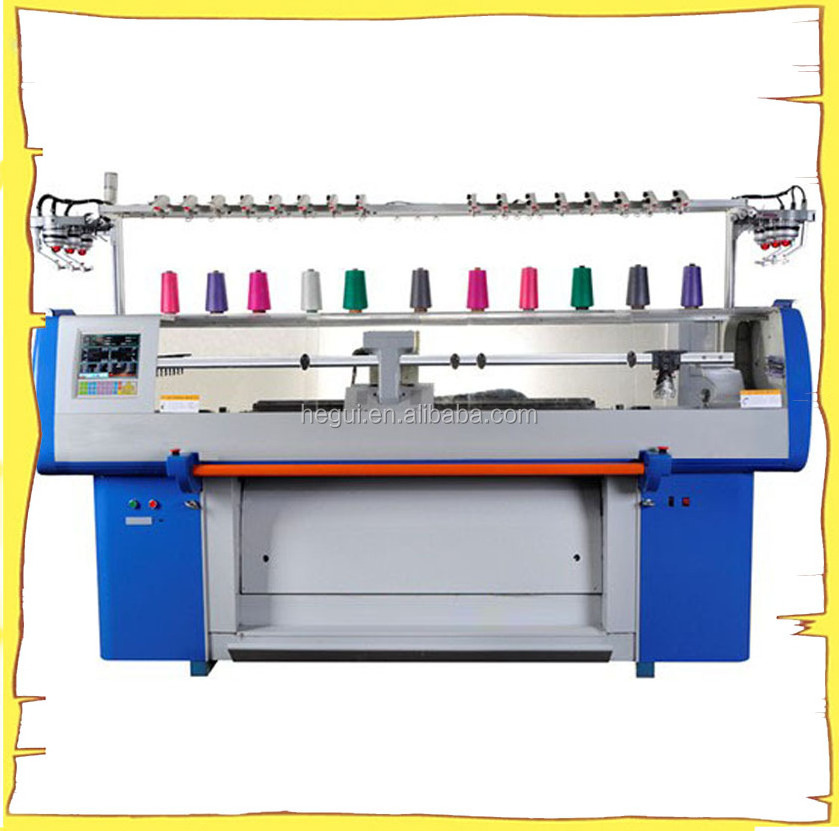

knitting machine sweater patterns, 52", with comb or without comb,
computerized sweater knitting machine parameters:
| 1 | Guage: | 5.7(Multi-gauge),5G,7G,8G,10G,12G,14G |
| 2 | Knitting width: | 52”=132CM |
| 3 | Knitting speed: | max 1.2m/s (it depend the pattern and yarn quantity) |
| 4 | Knitting system: | single carriage with double system. |
| 5 | Knitting function: | transfer, tuck, pointer, intarsia, jacquard, hide, or apparent shaping and other regular or irregular patterns. |
| 6 | Racking: | controlled by servo motor racking within 2 inches and with fine adjusting function. |
| 7 | Encoder: | advanced encoder adopted. |
| 8 | Detect alarm system: | the safety alarm detect device, achieve to up-down and left-right swing function, which surmount the normal flat knitting machine with detect simply left-right swing only and great increase the detect protect function. |
| 9 | Transfer cam: | the transfer is compose designed, single or double cam system an other cam system for knitting which will achieve to high production efficiency knit. |
| 10 | Stitch density: | controlled by stepping motor with 24 sections, adjustable to different knitwear, have various of shaping and patterns. The adjustable range from 0-650. |
| 11 | Sinker system: | controlled by stepping motor, adjustable to different knitwear, have various of shaping and patterns. |
| 12 | Fabric rolling system: | controlled by stepping motor, 24 section force selection adjustable range from 0 to 100. |
| 13 | Yarn feeder: | 2*8 yarn feeders on each side of 4 guide rails, shift able on any needle position ( special intarsia carriers optional if you need intarsia). |
| 14 | Protection: | The machine will auto alarm if yarn-breaking, knots, floating, yarn rewind, end of knitting, fail of racking, needle breakage and error programming occur. Also set up the safety auto-lock protect device. |
| 15 | Screen: | Adopt LCD touch screen and figure interface, input device: USB internal storage 1G, A great amount of design files can be stored at the same time and they can be fetches out for use at any time as per production requirement. |
| 16 | Monitoring menu: | Each kind of operation parament can be shown and it can be adjust at any time when the machine is running. Making conveniences for operations as much as possible. |
| 17 | Language version: | Chinese, English |
| 18 | Power; | single-phase 220V, adopt advanced CMOS technology, recovery of memory function as power shock stop (=0.6 KW/H) |
| 19 | Easy repair | The back door open by key, easy for repair. |
| 20 | Comb system | The comb moving by servo, so the force much steady. |
| 21 | Anti-interference | Use isolation transformer, prevent the power interference. |
| 22 | Measurement: | 2750*8500*1800MM |
| 23 | Net weight: | 1090KG |
| 24 | Goss weight: | 1120KG |
We also produce the collar machine, we have sold over 600 colllar machine in the world. We sold 400 sets collar machine in Bangladesh.
We also produce
1.the hand machine
2.semi-auto machine
3.placket machine
4.re-winding machine
5.1 system, 2 system, 3 system, 4 sytem, 6 system, stoll and shima style
6.linking mahcine
7.collar machine
8.winding machine
FAQ
-
1. What is your main products?
- Our main product is computerized flat knitting machine.
-
2. What products can flat knitting machine produce?
- Our machine can usually produce sweaters, hats, scarves, knee pads and so on.
-
3. What other product does your company offer?
- In addition to computerized flat knitting machine, we also provide soft winding machine, linking machine, placket machine.
-
4. What is your advantages?
- (1) We are 20 years old factory.
- (2) We have sold over 40 coutries.
-
5. How long is the delivery time?
- The exact delivery time depends on the quantity of the order. Usually 25~30 days after receive the deposit.
-
6. How do you provide after-sales service?
- We have agents overseas to help after sales maintenance. And if the problem is difficult to handle, we will send the engineers to help you.
