Quick Details
-
Brand Name:
-
xfdz
-
Name:
-
Electric Irrigation Water Solenoid Valve
-
Material:
-
Nylon
-
Voltage:
-
3vdc~12vdc
-
Connector:
-
Female Thread
-
Usage:
-
Farm Garden Agriculture
-
Working pressure:
-
0-10bar
-
Flow Rate:
-
0~50m³(Economic Flow)
-
Working Temperature:
-
1℃~75℃
-
Waterproof Grade:
-
IP67
Quick Details
-
Port Size:
-
G3/4'', 3/4 INCH
-
Place of Origin:
-
Wenzhou
-
Model Number:
-
GGF-AT34
-
Brand Name:
-
xfdz
-
Name:
-
Electric Irrigation Water Solenoid Valve
-
Material:
-
Nylon
-
Voltage:
-
3vdc~12vdc
-
Connector:
-
Female Thread
-
Usage:
-
Farm Garden Agriculture
-
Working pressure:
-
0-10bar
-
Flow Rate:
-
0~50m³(Economic Flow)
-
Working Temperature:
-
1℃~75℃
-
Waterproof Grade:
-
IP67

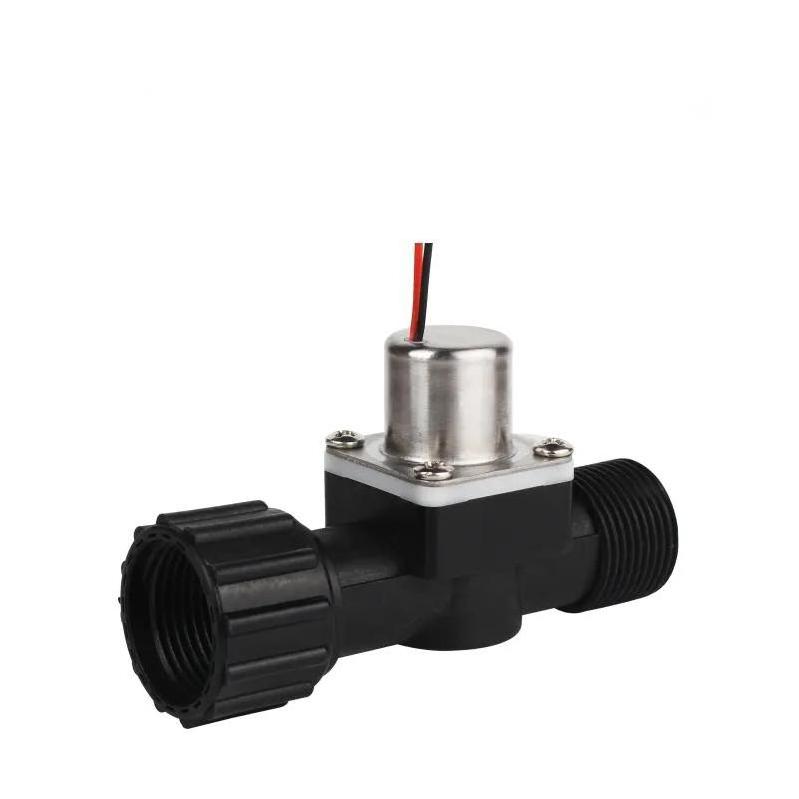

3/4'' inch female thread DN20 φ25mm port size irrigation water solenoid valve 6vdc pulse latching valve
Feature:
1.Pilot operated diaphragm structure.
2.Dubble filtration to protect the solenoid coil.
3.water-proof sealing coil.
4.Little water-head lose by straight line flow.
5.Manual operated flow control handle.
1.Pilot operated diaphragm structure.
2.Dubble filtration to protect the solenoid coil.
3.water-proof sealing coil.
4.Little water-head lose by straight line flow.
5.Manual operated flow control handle.
|
Name
|
Lactching Pulse irrigation water solenoid valve
|
|
|
||
|
Port size
|
3/4 inch
|
|
|
||
|
Port thread
|
Female-male Thread
|
|
|
||
|
Orifice
|
DN20
|
|
|
||
|
Pressure
|
0--0.8 MPa
|
|
|
||
|
Flow rate
|
0~50 m³/h
|
|
|
||
|
Body material
|
Reinforced nylon
|
|
|
||
|
Sealring material
|
NBR
|
|
|
||
|
Temperature
|
Water Temp≤42℃ Surround Temp≤82℃
|
|
|
||
|
Voltage
|
DC Latching 3~12V
|
|
|
||
Products Series
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us ortell us in your mail, so that we could regard your inquiry priority.
