Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
dreamland
-
Copper Thickness:
-
0.5-4OZ / 1 Oz / 2Oz or Custom
-
Min. Hole Size:
-
T/2mm / 0.2 Mm / 0.15mm or Custom
-
Min. Line Width:
-
0.15mm / 0.1mm or Custom
-
Min. Line Spacing:
-
0.15mm / 0.1mm/4mil or Custom
-
Surface Finishing:
-
HASL,Immersion gold,Flash gold, plated silver, OSP
-
Product name:
-
Circuit Board
-
Service:
-
One-stop Service
Quick Details
-
Base Material:
-
FR4
-
Board Thickness:
-
0.2~6mm
-
Model Number:
-
pcb, PCB
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
dreamland
-
Copper Thickness:
-
0.5-4OZ / 1 Oz / 2Oz or Custom
-
Min. Hole Size:
-
T/2mm / 0.2 Mm / 0.15mm or Custom
-
Min. Line Width:
-
0.15mm / 0.1mm or Custom
-
Min. Line Spacing:
-
0.15mm / 0.1mm/4mil or Custom
-
Surface Finishing:
-
HASL,Immersion gold,Flash gold, plated silver, OSP
-
Product name:
-
Circuit Board
-
Service:
-
One-stop Service

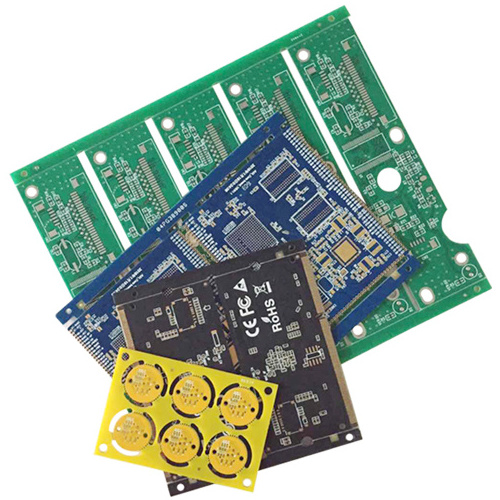

We produce 1-30 layers PCB, 1-14 layers flexible PCB, and 2-12 layer flex-rigid pcb.
|
Item
|
specification
|
|
Printed circuit boards
|
1-20 layer rigid PCB boards; HASL, Carbon oil, ENIG, Hard gold plated, BGA, COB, HDI, Impedance, etc.
|
|
Min. board thickness
|
0.15mm, 0.2mm super thin FR4 PCBs
|
|
Featured crafts
|
HASL, carbon oil, hard gold plated, BGA, COB, HDI, impedance, blind and buried vias, half holes, immersion tin plating, etc
|
|
Fast PCB
|
24/36H fast PCB prototype
|
|
Flex-rigid pcb
|
2-12 layer rigid flex pcb boards
|
|
Other service
|
PCB design, PCB +BOM clone, PCB assembly(SMT, DIP...)
|
48/72H fast turn pcb
Surface treatment: Carbon ink, Thick copper plating, ENIG,OSP,HASL with lead,HASL Lead free
BGA/Impedance
Via process: Tenting vias, vias not covered, plugged vias, Resin plug-hole, Blink&Buried Vias, PTH, step hole, etc
Special oil: transparent, matte(red, black, green, blue...)
Min. hole size: 0.15mm; Min. spacing: 0.075mm
|
NO
|
Item
|
Process capability
|
|
1
|
product type
|
FR-4, High Tg, Aluminium, Copper PCB, Ceramic PCB, Polyimide PCB, Rigid-flex PCB
|
|
2
|
Max layer count
|
20 layers
|
|
3
|
Min base copper thickness
|
1/3 OZ (12um)
|
|
4
|
Max finished copper thickness
|
10 OZ (350um)
|
|
5
|
Min trace width/spacing(Inner layer)
|
2/2mil (0.05mm)
|
|
6
|
Min trace width/spacing(Outer layer)
|
2/2mil (0.05mm)
|
|
7
|
Min spacing between hole to inner layer conductor
|
6mil (0.15mm)
|
|
8
|
Min spacing between hole to outer layer conductor
|
6mil (0.15mm)
|
|
9
|
Min annular ring for via
|
4mil (0.1mm)
|
|
10
|
Min annular ring for component hole
|
4mil (0.1mm)
|
|
11
|
Min BGA diameter
|
4mil (0.1mm)
|
|
12
|
Min BGA pitch
|
4mil (0.1mm)
|
|
13
|
Min hole size
|
0.15mm(CNC); 0.1mm(Laser)
|
|
14
|
Max aspect ratios
|
8.01
|
|
15
|
Min soldermask bridge width
|
4mil (0.1mm)
|
|
17
|
Min thickness for insulating layer
|
1mil (0.025mm)
|
|
18
|
HDI & special type PCB
|
HDI(1-3 steps), R-FPC(2-16 layers), High frequency mix-pressing(2-14 layers), Buried capacitance & resistance, 0.14mm to 0.2mm
extra thinner pcb,high heat conducting thermoelectric separation copper based pcb, etc |
|
19
|
Surface treatment type
|
ENIG, HAL, HAL lead free, OSP, Immersion Sn, mmersion silver, Plating hard gold,Plating silver, carbon oil, ENIG immersion tin
plating |
|
20
|
Max PCB size
|
Multi-layer: 600*550mm 1-2 layer: 500*1200MM
|
Dreamland Electronics is the group company, one of the most dynamic manufacturing company in high-tech Printed Circuit Board production in Shenzhen, China. We rapidly expand in terms of capacity and technology in recent years, especially in the areas of 1-12 layer pcb, led pcb, 1-12 layer flex PCB etc.
Our manufacturing facilities cover over an area of 1500 square meters, with 80-100 employees including 10% management and engineers who have professional experience in the field of flex PCB fabrication with 10 years at least. We very tightly controls the quality of the products with ISO system, and many raw material have attained UL and Rosh.
Q1, What needs to be provided for quote?
1, PCB
file：
gerber, .pcbdoc, CAD, or DDB.
2, Quantity.
3, Special technique.
PCB board thickness：0.15mm, 0.2mm, 0.4mm, 0.6mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, etc
FPC board thickness：0.05mm, 0.1mm, 0.2mm, 0.25mm, etc
IMS board thickness：0.2mm, 0.4mm, 0.6mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm, etc
Copper thickness：18um, 35um, 50um, 72um…
Surface treatment：HASL, HASL-LF, ENIG, OSP, Tin immersion, Gold plating.
Solder mask：White, Black, Green, Blue, Yellow…
4, Special services.
SMT PCBA assembly, BOM, components provide by customer or Dreamland.
PCB copy: please provide the sample.
PCB design: please provide the schematic diagram
Q2, About lead time?
Sample: 3-5 days for production
Mass production: 8-12 days for production
SMT assembly: 2-5 days
Fast PCB: 42/72 hour
Q3, What’s the MOQ?
1PCS, we custom made pcb from your requests.
Q4, How to pack up the goods, and the shipment methord?
Normal/Vacuum package;
Small quantity delivery by DHL, FedEX, TNT, SF-express in 3-5 days
Batch quantity is delivery by air, train, sea.
Q5, May I know your products meet the environmental protection?
We custom made pcb boards, which can be produced according to customers' environmental protection requirements.
Q6, Do you offer guarantee for the products?
Yes, we offer 1-3 years warranty to our products.
Q7, How to deal with the faulty?
1st, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2nd, We requests all PCBs must be fly-probe test, or tested by test tooling.
3rd, During the guarantee period, if it's our fault, we will repair them and resend to you or we can discuss the detail, and find the final solution.
Q8, What’s the main market of Dreamland?
Our team has 12 years domestic production & sales experience, and 7 years export experience, with registered export qualification. Welcome your inquiry.
