Quick Details
-
Brand Name:
-
HongYu
-
Model Number:
-
HY
-
Product name:
-
3D Fence Panels Curved Fencing Garden Wire Mesh Fence With V Folds
-
Material:
-
Q235 high quality low carbon steel wire
-
Wire diameter:
-
2.5 mm - 6.0 mm
-
Aperture:
-
50 mm X 100 mm, 60 mmx120mm, 75 mmx150mm, 80x160mm, 50X200mm.
-
Fence size:
-
800 x 3000 mm, 1000x3000mm, 1200x3000mm, etc
-
Post types:
-
round column, square column
-
Surface treatment:
-
plastic spraying, PVC coated, galvanized +PVC, powder coated
-
Color:
-
green, black or as your requirement.
-
Accessories:
-
rain hat, clip, bolt, chassis
-
Bending offered:
-
one bending, two bending, three bending, four bending
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, FSC, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HongYu
-
Model Number:
-
HY
-
Product name:
-
3D Fence Panels Curved Fencing Garden Wire Mesh Fence With V Folds
-
Material:
-
Q235 high quality low carbon steel wire
-
Wire diameter:
-
2.5 mm - 6.0 mm
-
Aperture:
-
50 mm X 100 mm, 60 mmx120mm, 75 mmx150mm, 80x160mm, 50X200mm.
-
Fence size:
-
800 x 3000 mm, 1000x3000mm, 1200x3000mm, etc
-
Post types:
-
round column, square column
-
Surface treatment:
-
plastic spraying, PVC coated, galvanized +PVC, powder coated
-
Color:
-
green, black or as your requirement.
-
Accessories:
-
rain hat, clip, bolt, chassis
-
Bending offered:
-
one bending, two bending, three bending, four bending

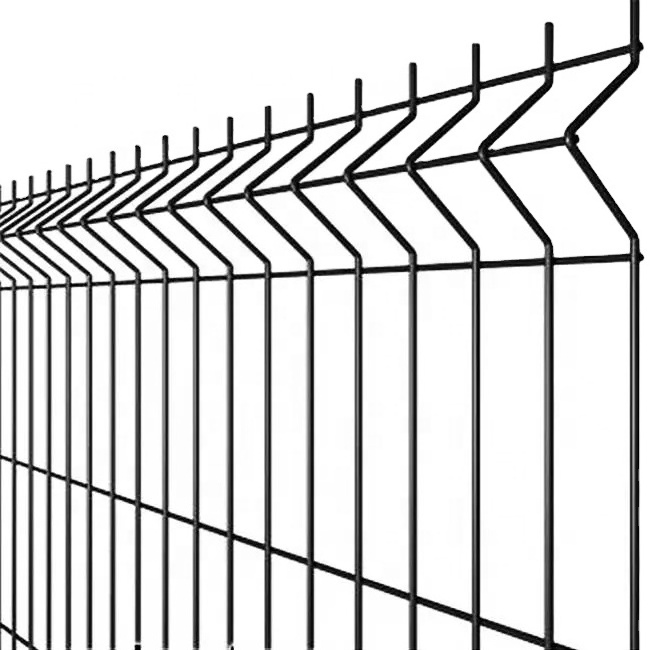

3D Fence Panels Curved Fencing Garden Wire Mesh Fence With V Folds
3D Panel fence heavy wires guarantee an extraordinary level of rigidity
Surface:Powder Coating, Hot Dip Galvanized, PE Coating
Color: Green RAL6005, Grey RAL7016, Black RAL9005, etc.
Opening: 100×50mm, 200x50mm
Panel Height: from 630mm to 2230mm
Panel Width: from 2000mm to 2500mm
Package: Packing by pallets
Assortments
Hot dipped galvanized before
Hot dipped galvanized after
Electro galvanized wire + powder coated
Hot dipped galvanized wire + powder coated
Electro galvanized wire + PE coated
Specification
| Mesh Size | Wire Dia. | Height | V | Width | V Distance |
| mm | mm | mm | No. | mm | mm |
| 3.2-5.0 | 630 | 2 | |||
| 3.2-5.0 | 830 | 2 | |||
| 3.2-5.0 | 1030 | 2 | |||
| 50×100 | 3.2-5.0 | 1230 | 2 | 2000 | 100 |
| 50×200 | 3.2-5.0 | 1530 | 3 | 2500 | 200 |
| 55×200 | 3.2-5.0 | 1730 | 3 | ||
| 3.2-5.0 | 2030 | 4 | |||
| 3.2-5.0 | 2230 | 4 |
Fittings
Post: Square / Rectangle post / Round Post
Clamp: Metal clamp/Plastic clamp
Post Cap: Metal cap/Plastic cap
Feature
1. V-shaped strengthen bending curves.
2. It could be assembled with a variety of posts.
3. Easily Assembled, Sustainable, ECO FRIENDLY
