* ATEX, IECEx certified
* Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
* Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db
* Stainless steel 304/316L
* Optional electropolished or corrosion resistant paint finish
* Enclosure Protection:IP66 IP68 (2m 2h) IP69
* Motorized vari-focal lens2.8 ~ 12mm
* 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps
* 1/2.7" progressive scan, CMOS
* Power input: POE power supply
* SmartIR,up to 60m (164ft) IR distance
* Ultra 265, H.265, H.264, MJPEG
* Support 9:16 Corridor Mode
* 120dB true WDR
* Supports 128 G Micro SD card
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZUOAN
-
Model Number:
-
CZ109
-
Style:
-
Explosion proof camera
-
Video Compression Format:
-
Ultra 265, H.265, H.264, MJPEG
-
Data Storage Options:
-
128GB Micro SD
Quick Details
-
Special Features:
-
Waterproof / Weatherproof, 1/2.7" progressive scan, CMOS, POE power supply, 9:16 Corridor Mode, Motorized vari-focal lens 2.8 ~ 12mm, IP66 IP68 (2m 2h) IP69, ATEX, IECEx certified
-
Function:
-
Wide Angle, Up to 60m (209.9ft) IR range, Defog, Motion Detection, Smart IR, HLC, BLC
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZUOAN
-
Model Number:
-
CZ109
-
Style:
-
Explosion proof camera
-
Video Compression Format:
-
Ultra 265, H.265, H.264, MJPEG
-
Data Storage Options:
-
128GB Micro SD
Product Description

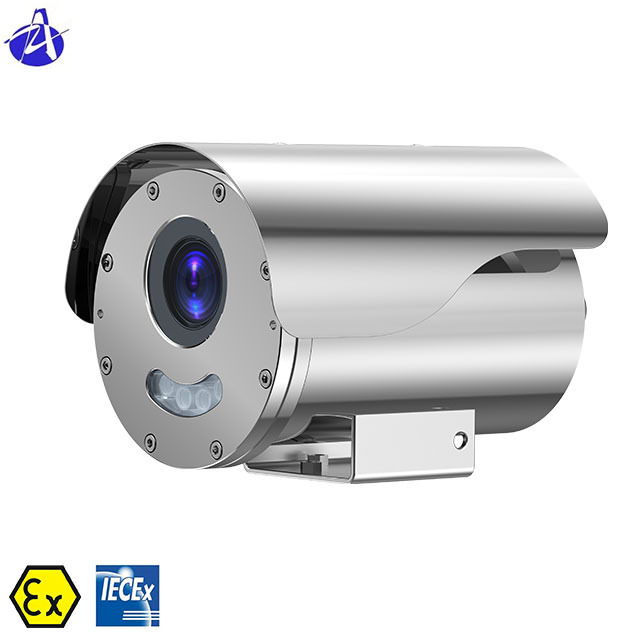

The ATEX & IECEx certified CZ109 are ZUOAN designed classic explosion-proof corrosion-proof camera, which can load various camera. This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment.
Features
Specification
|
Camera
|
|
|
|
|
|
|||||
|
Sensor
|
1/2.7", 2.0-megapixel, progressive scan, CMOS
|
|
|
|
|
|||||
|
Lens
|
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
|
|
|
|
|
|||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|||||
|
|
2.8
|
42
|
16.8
|
8.4
|
4.2
|
|||||
|
|
12
|
180
|
72
|
36
|
18
|
|||||
|
Angle of View (H)
|
108.05°~ 32.59°
|
|
|
|
|
|||||
|
Angle of View (V)
|
56.81°~ 18.36°
|
|
|
|
|
|||||
|
Angle of View (O)
|
111.91°~36.53°
|
|
|
|
|
|||||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
|
|
|
|||||
|
Minimum Illumination
|
Colour: 0.005Lux (F1.6, AGC ON)
0Lux with IR on |
|
|
|
|
|||||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
|
|
|
|||||
|
Digital noise reduction
|
2D/3D DNR
|
|
|
|
|
|||||
|
S/N
|
>52dB
|
|
|
|
|
|||||
|
IR Range
|
Up to 60m (209.9ft) IR range
|
|
|
|
|
|||||
|
Wavelength
|
850nm
|
|
|
|
|
|||||
|
IR On/Off Control
|
Auto/Manual
|
|
|
|
|
|||||
|
Defog
|
Digital Defog
|
|
|
|
|
|||||
|
WDR
|
120dB
|
|
|
|
|
|||||
|
Video
|
|
|
|
|
|
|||||
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
|
|
|
|||||
|
H.264 code profile
|
Baseline profile, Main profile, High profile, MJPEG
|
|
|
|
|
|||||
|
Frame Rate
|
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|
|
|
|
|||||
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
|
|
|
|||||
|
9:16 Corridor Mode
|
Supported
|
|
|
|
|
|||||
|
OSD
|
Up to 4 OSDs
|
|
|
|
|
|||||
|
Privacy Mask
|
Up to 4 areas
|
|
|
|
|
|||||
|
ROI
|
Up to 8 areas
|
|
|
|
|
|||||
|
Motion Detection
|
Up to 4 areas
|
|
|
|
|
|||||
|
|
|
||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
||
|
Digital Noise Reduction
|
2D/3D DNR
|
||
|
Smart IR
|
Supported
|
||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
||
|
Dewarping
|
N/A
|
||
|
HLC
|
Supported
|
||
|
BLC
|
Supported
|
||
|
Audio
|
|
||
|
Audio Compression
|
G.711
|
||
|
Suppression
|
Supported
|
||
|
Sampling Rate
|
8KHZ
|
||
|
Storage
|
|
||
|
Edge Storage
|
Micro SD, up to 128GB
|
||
|
Network Storage
|
ANR, NAS(NFS)
|
||
|
Network
|
|
||
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP
|
||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
||
|
Client
|
EZStation EZView EZLive
|
||
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
||
|
|
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
||
|
Interface
|
|
||
|
Network
|
10/100M Base-TX Ethernet
|
||
|
Built-in Mic
|
Supported
|
||
|
General
|
|
||
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
||
|
|
Power consumption: Max 8.5W
|
||
|
Dimensions (L × W × H)
|
270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)
|
||
|
Pigtail Cable
|
2meters standard combined cable (power+UTP)
|
||
|
Net Weight
|
5.6 kg (12.34 lb)
|
||
|
Gross Weight
|
6.5 kg (14.33 lb)
|
||
|
Ambient Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||
|
Storage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||
|
Surge Protection
|
6KV
|
||
|
Ingress Protection
|
IP66, IP68 (2m 2h), IP69
|
||
|
Reset Button
|
Supported
|
||
|
Bracket
|
ZAZ100B Wall bracket with adaptor
|
||
Dimension
Brackets
|
General
|
|
|
|
Material
|
Stainless steel 304 or 316L
|
|
|
Max Loading
|
20kg
|
|
|
Gross Weight
|
2.5kg
|
|
