Quick Details
-
Model Number:
-
Customized
-
Product Specification:
-
Depend on your sample or drawing design
-
Mould Cavity:
-
Multi-cavity
-
Mould Steel:
-
S50C/P20H/718/H13/S136/2316/2738etc
-
Mould Runner:
-
Cold/Hot Runner - point way, side way, follow way, direct gate way
-
Mould Base:
-
LKM,DME,HASCO standard etc, World standard
-
Mould Life:
-
at least 500,000 shots,Depend on mold steel
-
Mould Design Software:
-
UG, PROE, CAD, CAXA etc.
-
Mould Process Machine:
-
CNC,EDM,Grinding,Wire-EDM,Milling,et
-
Mould Surface Treatment:
-
Mirror polished
Quick Details
-
Shaping Mode:
-
Plastic Injection Mould
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DEYING MOULD
-
Model Number:
-
Customized
-
Product Specification:
-
Depend on your sample or drawing design
-
Mould Cavity:
-
Multi-cavity
-
Mould Steel:
-
S50C/P20H/718/H13/S136/2316/2738etc
-
Mould Runner:
-
Cold/Hot Runner - point way, side way, follow way, direct gate way
-
Mould Base:
-
LKM,DME,HASCO standard etc, World standard
-
Mould Life:
-
at least 500,000 shots,Depend on mold steel
-
Mould Design Software:
-
UG, PROE, CAD, CAXA etc.
-
Mould Process Machine:
-
CNC,EDM,Grinding,Wire-EDM,Milling,et
-
Mould Surface Treatment:
-
Mirror polished

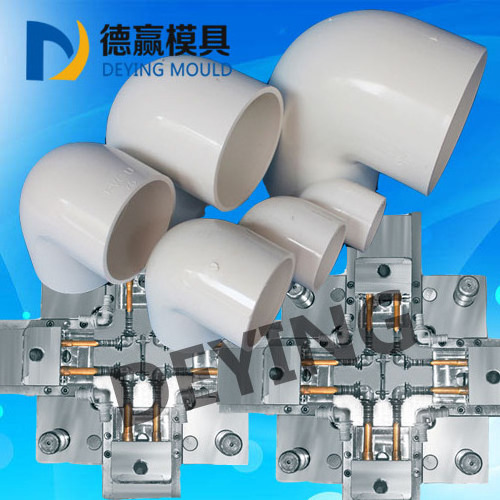

Plastic PVC Big Elbow/Bend Pipe Fitting Injection Mould
1. Plastic injection PVC pipe fitting Mold
2. Model: All
3. Size: Depend on Sample/3D Design drawing
4. Product Material: PP,ABS,PE ect.
5.Available for Customized
|
Product Name
|
Plastic PVC Big Elbow/Bend Pipe Fitting Injection Mould
|
|
Mould Cavity
|
Multi-cavity
|
|
Mould Steel
|
S50C/P20H/718/H13/S136/2316/2738etc
|
|
Steel Hardness
|
28-50HRC
|
|
Mould Base
|
LKM,DME,HASCO,self-made etc.
|
|
Mould Runner
|
Hot/Cold Runner
|
|
Hot Runner Type
|
China Hot Runner,YUDO, Husky, Synventive,Thermoplay,Ewikon, Mold Master,DME
|
|
Gate
|
Point Gate, Side Gate, direct gate way,Sub-Gate,Tab Gate, Fan Gate
|
|
Ejection
|
Stripper Plate, Ejection Block, Ejectors Pins,gas,Cylinder
|
|
Mould Life
|
》300,000 Shots ,Different steel with different mold life
|
|
Production Time
|
30-50days ,it depend on product
|
|
Mould Parts
|
China standard / SKD
|
|
Mould Quality Levels
|
Level A
quality(Highest Level Quality),
Level B
quality(Middle Level Quality),
Level C
quality(Lowest Level Quality) , different level with different price
|
|
|
When you send us the mould inquiry, please offer the following information:
1) Quality level you choose: Level A/Level B/Level C 2) Photo together with dimension/ drawing design |
|
|
For the Q/C of mould, there are 3 steps:
1.Mould Material Q/C - Mould Steel Checking,Standard Spare Parts Checking 2. Mould Making Process Q/C - Design checking ,Each part of mould's size checking after machining according to 2D drawing , Mould testing 3.Check with customer's requirement again before mould shipping. |
|
The Main Mould Steel and Hardness for you reference
|
|
|
|
|
|
|
|
|||||||
|
Steel Grade
|
S50C
|
P20
|
P20HH
|
718H
|
2738h
|
H13
|
S136
|
|||||||
|
Hardness(HRC)
|
17-22
|
27-30
|
33-37
|
33-38
|
36-40
|
48-52
|
48-52
|
|||||||
|
Mould Processing Detail Time Schedule
|
|
|
|
|
|
|
||||||
|
Prepare Mold Steel
|
CNC Machining
|
Precision CNC Machining
|
Drill
|
Polishing/Carving
|
Assembling and Fitting
|
T1 Mould Test
|
||||||
|
5 days
|
10 days
|
5 days
|
5 days
|
3-5 days
|
5 days
|
2 days
|
||||||
Related Product Show
Main Product Show
Taizhou Huangyan Deying Mould Co.,Ltd., is a professional production of plastic injection mould,fiber glass(SMC/BMC) compression mould more than 10 years experience. We're specilized in Elbow mold ,PPR Elbow fittings mold , Plastic PVC Big Elbow/Bend Pipe Fitting Injection Mould
Packing Details : Mould packaged by wooden case
Delivery Details : In general mold shippment by sea,but small mould also can be by air based on client request.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 30-50 after client payment deposit and also confirm drawing. Different mold with different delivery time.
Q: Can you help us with the design?
A: YES,We'll be free to help with you design based on your 3D/Sample .
Q: Do you provide samples ? is it free or extra ?
YES,we will be send free sample for you confirm after we finished mold and test it .
Q: What is your terms of payment ?
A: T/T(50% T/T first payment + 50% T/T at samples confirmation , before shipment.).
If you have another question, pls feel free to contact us as below:
