Quick Details
-
Brand Name:
-
A-BRT/OEM
-
Model Number:
-
BRT-D260
-
Mechanical Life:
-
3 years
-
Color:
-
white
-
Load Power:
-
150 W
-
Switch Weight:
-
81 g
-
Wiring:
-
Operates on a 2 wire system
-
Range of application:
-
All led lamps
-
name:
-
led triac dimmer
-
switch type:
-
European-style keypad
-
Application:
-
LED
-
size:
-
86mm*86mm
-
certification:
-
CE&RoHS
Quick Details
-
Max. Current:
-
0.68 A
-
Max. Voltage:
-
240 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
A-BRT/OEM
-
Model Number:
-
BRT-D260
-
Mechanical Life:
-
3 years
-
Color:
-
white
-
Load Power:
-
150 W
-
Switch Weight:
-
81 g
-
Wiring:
-
Operates on a 2 wire system
-
Range of application:
-
All led lamps
-
name:
-
led triac dimmer
-
switch type:
-
European-style keypad
-
Application:
-
LED
-
size:
-
86mm*86mm
-
certification:
-
CE&RoHS

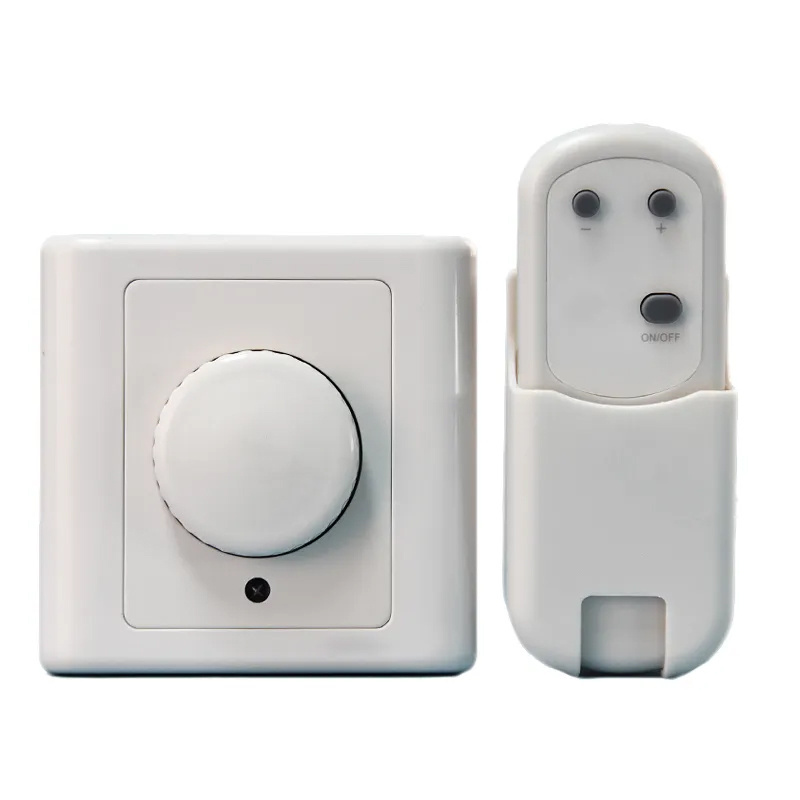

Button Rotary LED Triac Dimmer 220V
Features of Led triac dimmer:
Pressing the knob will turn on the light, and pressing the knob again will turn off the light. Rotating the knob clockwise will increase the brightness, and rotating the knob counter-clockwise will reduce the brightness.
- Operates on a 2 wire system, and fits in a standard wall box;
- Lights turn on at last brightness setting;
- Good for all kinds of LED lights;
- Wallplate uses flame resistance ABS-V0 material for safety;
- Classical 86 series design, and easy installation.
- Used with LED diver BRT-D281.
Specifications of Led triac dimmer:
|
Voltage |
220~240V(50Hz/60Hz) |
Operating Temperature |
0°c~55°c |
|
Maximum Wattage |
150W |
Relative Humidity |
Non-condensing 20-90% |
|
Mounting Hole Spacing |
60mm |
Matching Wall Box |
75mm*75mm*75mm |
|
Dimension |
86*86*38.7mm |
Weight |
81 g |
Wiring diagram of Led triac dimmer:
One Year Warranty Policy of Led triac dimmer :
If within one year from the date of purchase, this product fails due to a defect in material, Asia Bright will repair it, at its sole option, free of charge. This warranty does not apply to:
(a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;
(b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified;
(c) units not used in accordance with instructions;
(d) damages exceeding the cost of the product.
