Quick Details
-
Paper size recognition:
-
B6, A5, B5, A4, B4, A3
-
Paper size:
-
B6(128x182 mm) to A3(297x432 mm) or 5.0''x7.0'' to 11''x17''
-
Paper weight:
-
50-220 gsm(Up than 135 gsm, Single fold only)
-
Folding speed(A4 Single fold):
-
120-130 sheets/ minute
-
Paper stack capacity:
-
500 sheets(64 gsm)
-
Fold types:
-
Single, Letter, Zig-Zag, Gate, Double Parallel, Fold-out
-
Feeding system:
-
3 roller friction feeding system
-
Memory for normal folds:
-
6 paper size of 6 fold types each
-
Certification:
-
ce
Quick Details
-
Type:
-
Paper Folding Machine
-
Place of Origin:
-
Zhejiang, China
-
After-sales Service Provided:
-
Video technical support, Online support
-
Paper size recognition:
-
B6, A5, B5, A4, B4, A3
-
Paper size:
-
B6(128x182 mm) to A3(297x432 mm) or 5.0''x7.0'' to 11''x17''
-
Paper weight:
-
50-220 gsm(Up than 135 gsm, Single fold only)
-
Folding speed(A4 Single fold):
-
120-130 sheets/ minute
-
Paper stack capacity:
-
500 sheets(64 gsm)
-
Fold types:
-
Single, Letter, Zig-Zag, Gate, Double Parallel, Fold-out
-
Feeding system:
-
3 roller friction feeding system
-
Memory for normal folds:
-
6 paper size of 6 fold types each
-
Certification:
-
ce
Product Description

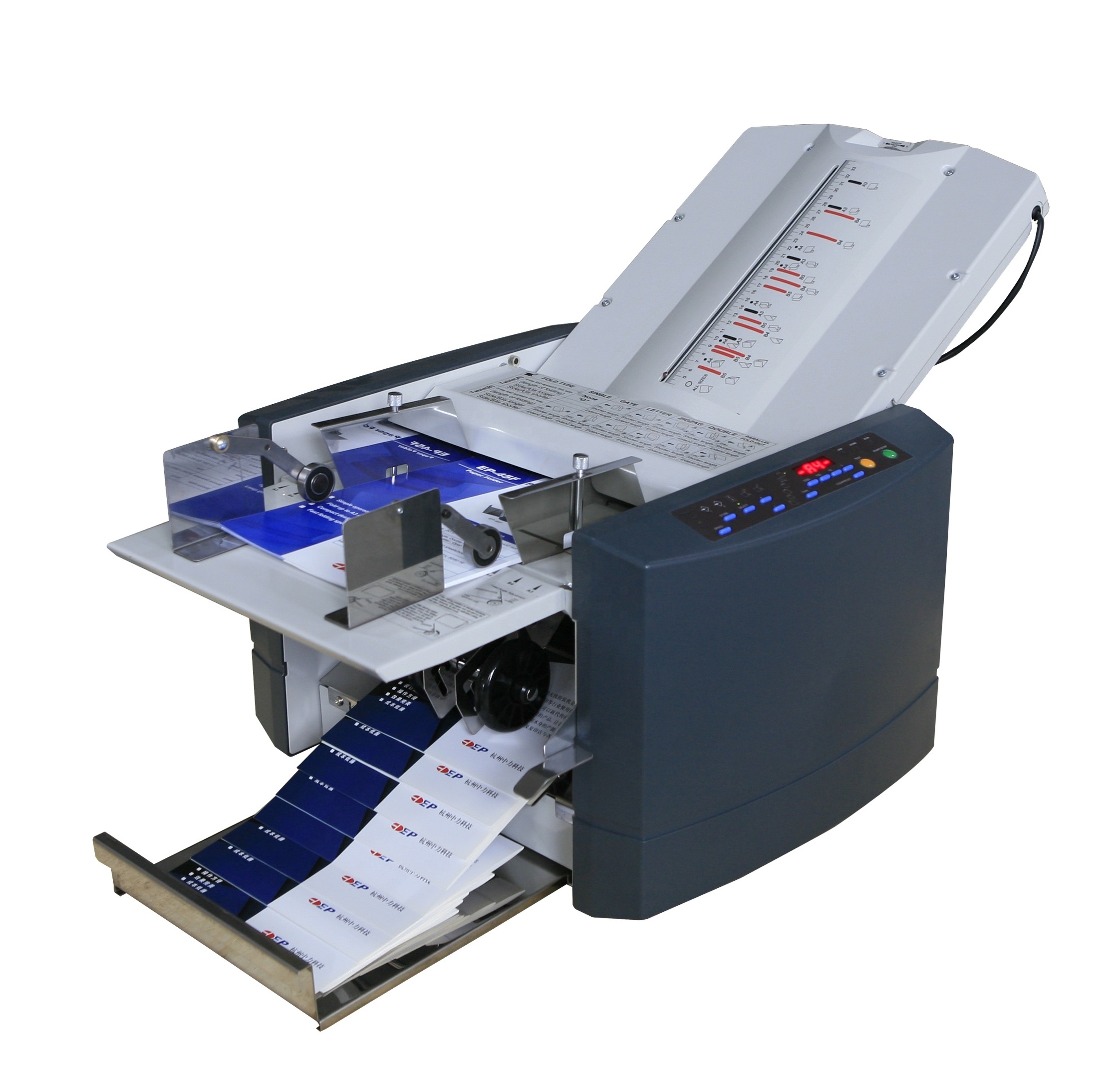

EP-45F A3 automatic paper folder machine
features:
- EP-45F is a fully featured friction folding machine, with automatic size recognition, digital
- ascending and descending counter.
- 6 pre-programmed folds and 2 customer folds can be stored.
-
It automatically sense, set and display 6 paper size on the stacker.
-
18 month warranty, longer guaranteed in same class.
- CE safety standard certification approval.
· 12 customs fold position(2 paper size with 6 fold types each)
· 36 normal fold position(6 paper size with 6 fold types each)
· Maximum for A3 size paper
· 4digital ascending and descending counter
· 500 sheets feed tray capacity
· Adjustable folding speed from 50-200 sheets per minute
Specification:
| Model | 45F |
| Paper size | B6(128x182 mm) to A3(297x432 mm) or 5.0 x 7.0 inch to 11 x 17 inch |
| Paper weight | 50-220 gsm(Up than 135 gsm, Single fold only) |
| Paper size recognition | B6, A5, B5, A4, B4, A3 |
| Folding speed( A4 Single fold) | 50 to 200 sheets / minute |
| Paper stack capacity | 500 sheets |
| Fold types | Single, Letter, Zig-Zag, Gate, Double parallel, Fold-out |
| Counter | 4 Digital ascending and descending counter |
| Detection functions | Jam, Opening/Closing top cover, Paper empty detections |
| Paper feed angle adjustment | Yes |
| Feeding system | Single roller friction feeding system |
| Memory for normal folds | 6 paper size of 6 fold types each |
| Memory for custom folds | 2 paper size of 6 fold types each |
| Ejection system | Conveyer belts( 3 roller position for different size paper) |
| Dimensions (Operation) | 800 x 565 x 510 mm |
| Dimensions (stored) | 610 x 580 x 450 mm |
| Gross weight(Package weight) | 35Kg |
| Net weight | 33Kg |
| Power supply | 220V, 50Hz/ 110V, 60Hz |
| Power consumption | 75W |
| Option | Double friction feed roller system |
