3d 5d Effect UV Wall/Floor/Ground Art Glass/Wood/Ceramic/Paper/Metal Direct Inkjet Printers Spraying Printing Painting Machine

3d 5d Effect UV Wall/Floor/Ground Art Glass/Wood/Ceramic/Paper/Metal Direct Inkjet Printers Spraying Printing Painting Machine

FOB Reference Price: Get Latest Price

≥10 Sets

US $6800

≥15 Sets

US $6000

≥50 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ink Type:: Water-based Ink & UV Ink

Place of Origin:: Hubei, China

Brand Name:: Perfect Laser

Voltage:: AC110V (90-132V) / AC220V (180-264V)

Dimensions(L*W*H):: 2820x535x390mm

Weight:: 35 KG

Marketing Type:: Latest Product

Machinery Test Report:: Provided CE Certificate

Core Components:: Ink system

Product Name:: Wall Printing Machine

Printing Heads:: Signal head

Ink:: Colorful water-based ink

The fastest painting speed:: 32㎡/h

Total body weight:: 35 kgs

Motherboard configuration:: 6-core CPU, 2GB DDR memory

Highest painting accuracy:: 9600 dpi

print head model:: Japan imported print head (industrial grade)

Ultrasonic sensor:: Double sensor

Ink tank capacity:: 400ML

Quick Details

Print Dimension:: Other

Condition:: New

Color & Page:: Multicolor

Ink Type:: Water-based Ink & UV Ink

Place of Origin:: Hubei, China

Brand Name:: Perfect Laser

Voltage:: AC110V (90-132V) / AC220V (180-264V)

Dimensions(L*W*H):: 2820x535x390mm

Weight:: 35 KG

Marketing Type:: Latest Product

Machinery Test Report:: Provided CE Certificate

Core Components:: Ink system

Product Name:: Wall Printing Machine

Printing Heads:: Signal head

Ink:: Colorful water-based ink

The fastest painting speed:: 32㎡/h

Total body weight:: 35 kgs

Motherboard configuration:: 6-core CPU, 2GB DDR memory

Highest painting accuracy:: 9600 dpi

print head model:: Japan imported print head (industrial grade)

Ultrasonic sensor:: Double sensor

Ink tank capacity:: 400ML

3d 5d Effect UV Wall/Floor/Ground Art Glass/Wood/Ceramic/Paper/Metal Direct Inkjet Printers Spraying Printing Painting Machine

(Model: PE-S10)

Contact:Sophie Wechat/Whatsapp:+8613659883308 Email : sophie(@)perfectlaser.net

Product Description

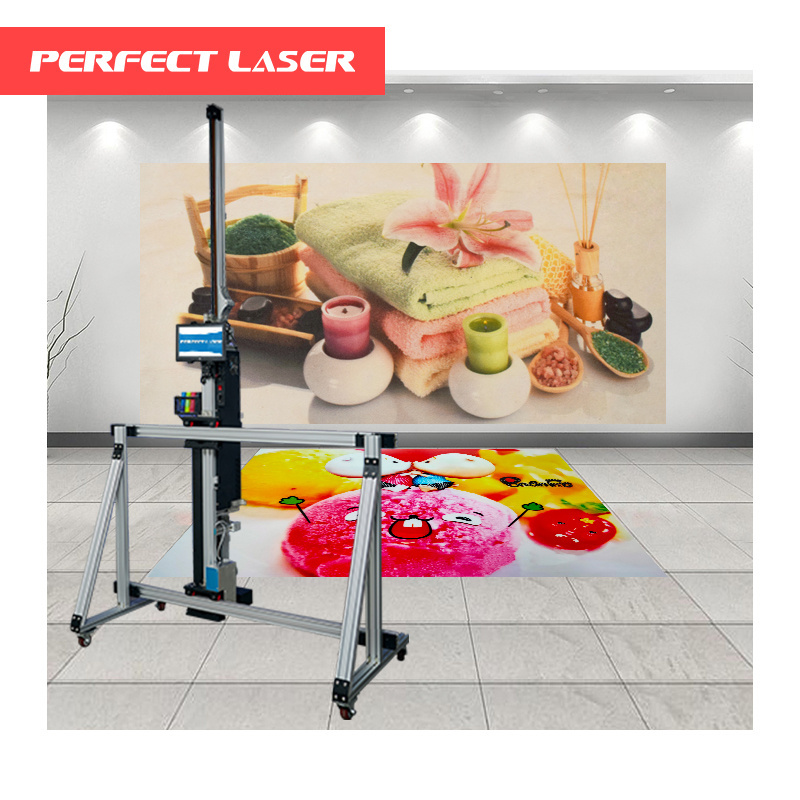

The wall printing machine is a new product strongly launched by Perfect Laser. It adopts imported Japan imported Epson high-definition print heads. The maximum spray speed can reach 64㎡/h. It’s fast, one-time imaging, with bright color, and will not get fade.

Machine Features

1.Equipped with dual ultrasonic sensors, up and down two-way inductive surface tracking, automatic positioning, and automatic solution to uneven surface and floor tilt. . 2.AI intelligent image processing speed is fast and efficient. 3.Comes with 11.6 inch touch panel, easy and clear operation. 4.Negative pressure automatic ink supply ensures the continuity of ink supply, prevents dust from entering the ink tube and nozzle, prolongs the service life of the nozzle, and is more suitable for outdoor environments. 5. The printing head is automatically cleaned with one button, no need to be disassembled, and it can be completed automatically, which effectively guarantees the smooth flow of the ink path. The printing head adopts an automatic protection device, which greatly reduces the risk of the printing head being affected by the external environment. 6.High precision: the highest painting precision can reach 9600 DPI. 7.Built-in power supply backup. The floor ground inkjet printing machine can work continuously for up to 10-12 hours without external power supply or power failure.

Samples

Machine Details

Technical Data

Product Name	PE-S10 Wall Printing Machine
Ink	Colorful water-based ink
Printing Heads	Signal head
The fastest painting speed	32㎡/h
Motherboard configuration	6-core CPU, 2GB DDR memory
Total body weight	35 kgs
Power-off endurance time	10 hours
Data transmission method	USB 2.0 / 3.0 / Bluetooth / Wireless control (optional)
Ultrasonic sensor	Double sensor
Host size	2820 x 535 x 390mm
Highest painting accuracy	9600 dpi
Ink consumption per square	6-10 ML
print head model	Japan imported Epson print head (industrial grade)
X axis folding	Optional
Print head guard	Yes
Head ink tank	Can be split and transported separately
Painting direction	Horizontal
X axis guide	2820mm
Y axis guide	Wheeled
Z axis guide	170mm
Display screen	11.6-inch touch panel
X axis effective stroke	2500mm
Print head cleaning	One-key automatic
Ink tank capacity	400ML
Certification	Green environmental protection certification, national standard testing qualified (GB18582-2001, GBT9756-2001), CE certification
power supply	AC110V (90-132V) / AC220V (AC180-264V) , 47-63HZ
Power consumption	No load 20W, generally 75W, up to 250W
Noise	Standby <20dBA, drawing <50dBA
Construction temperature	-10°C-60°C (14°F-140°F) 10%-80% relative humidity, non-condensing
Storage temperature	-30℃-60℃（-22°F-140°F) 10%-80% relative humidity, non-condensing
Language switch	Chinese and English (customized)
System platform	Windows XP / Win7 / Win8 / Win10
Flash spray test	Touch
Inkjet test	Touch
Automatic nozzle avoidance	√
Turn left and right	√
Print white	Optional
Painted mode	Two-way
Gallery type	Beautifully printed gallery book + mobile hard disk
Picture processing	AI intelligent image processing
Automatically block large images	Unlimited height / width size of painted pictures
Interrupt automatic marking	√
Auto-complement	√
Quiet zone calibration	√
Step calibration	√
Nozzle buffer	√
Spray distance	0.5-2.0cm
Ink supply method	Negative pressure automatic ink supply
Color processing	Automatic color matching
Painted medium	All floor
Integrated voltage regulator	Has
Laser positioning	Has
Magnetic limit	Has
Automatic white jump	Has
Power outage life	Has
Picture on demand	Has
PE-S10 Water-based colorful ink type(single head):	Process treatment: 1. The floor base must be treated as white. (The premise is that the floor must be able to adhere to the ink) 2. The machine will be equipped with a special white primer before leaving the factory. After the floor is treated with white primer, wait for the white paint to dry before printing. 3. After printing, the entire painting needs to be painted. It takes about 1 hour for the surface of the finish paint to dry, and it takes more than 4 hours for the finish to dry before this work is considered complete.
