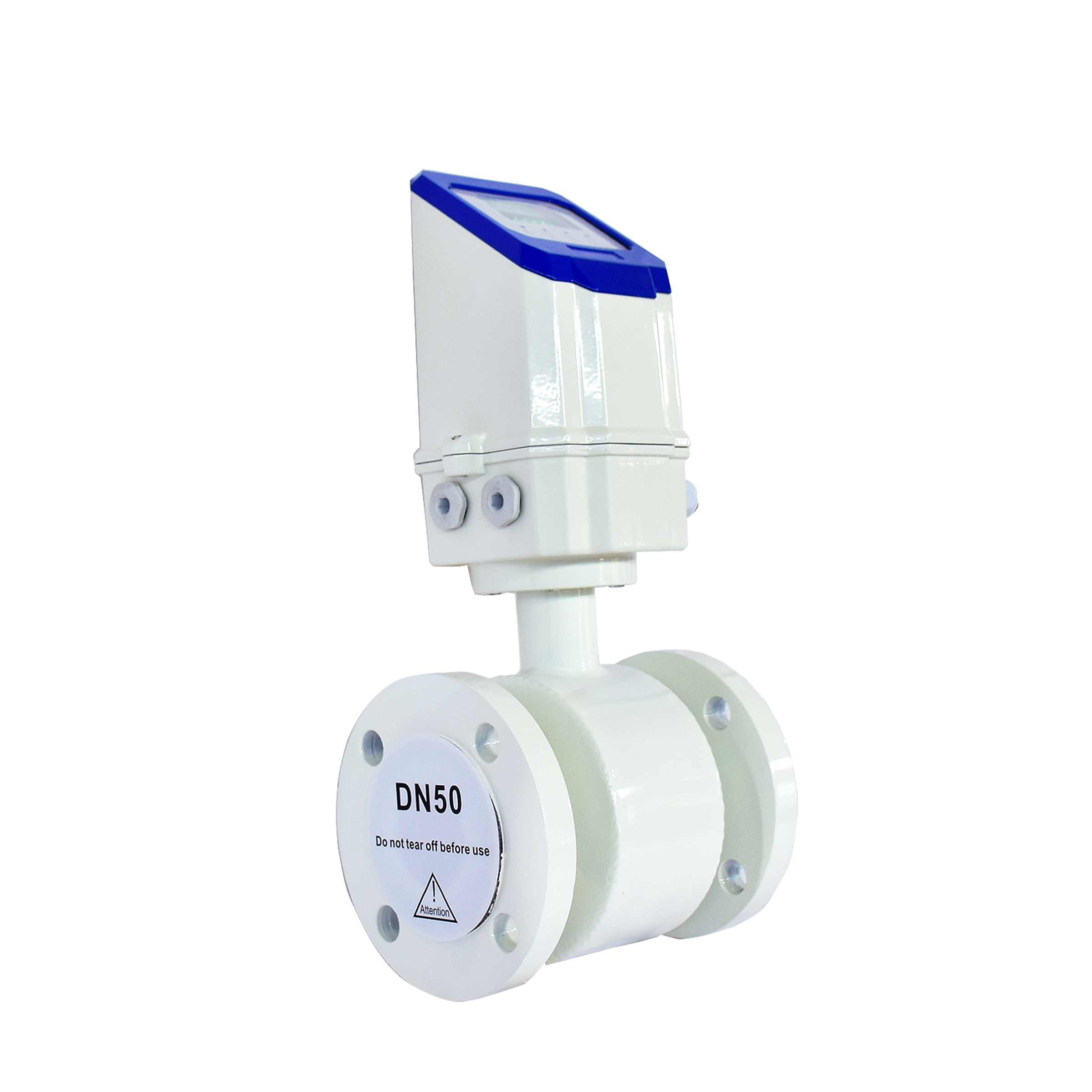

Quick Details
-
Brand Name:
-
HBYB
-
Model Number:
-
HBLD
-
Lining type:
-
Polychloroprene rubber, PTFE, F46, PFA
-
Medium:
-
Various conductive liquid
-
Caliber range:
-
DN3-DN3000 (DN3\DN4 is flange clamping type)
-
Electrode type:
-
316L, titanium, stainless steel tungsten carbide
-
Pressure range:
-
0.6~42Mpa; (high pressure needs to be customized)
-
Protection level:
-
Sensor IP65\IP67\IP68 (optional), converter IP65
-
Temperature resistance:
-
-25~80℃;
-
Power supply:
-
85~250V, 45~63Hz, 20VDC --- 36VDC
-
Accuracy:
-
±0.5% can be customized ±0.3%±0.2%
-
Certification:
-
CE,ISO
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters
-
Warranty:
-
18 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HBYB
-
Model Number:
-
HBLD
-
Lining type:
-
Polychloroprene rubber, PTFE, F46, PFA
-
Medium:
-
Various conductive liquid
-
Caliber range:
-
DN3-DN3000 (DN3\DN4 is flange clamping type)
-
Electrode type:
-
316L, titanium, stainless steel tungsten carbide
-
Pressure range:
-
0.6~42Mpa; (high pressure needs to be customized)
-
Protection level:
-
Sensor IP65\IP67\IP68 (optional), converter IP65
-
Temperature resistance:
-
-25~80℃;
-
Power supply:
-
85~250V, 45~63Hz, 20VDC --- 36VDC
-
Accuracy:
-
±0.5% can be customized ±0.3%±0.2%
-
Certification:
-
CE,ISO
Applicable Scenario
Product information
|
Main power :
|
AC220V 50HZ / DC24V / DC12V
|
|
|
|
Power consumption:
|
<15W (Supporting power consumption with sensors )
|
|
|
|
Display and buttons:
|
Display in Chinese and English, can display instantaneous flow, accumulated flow and alarm display (excitation open circuit alarm, empty pipe alarm, flow over limit alarm).
Four membrane touch switches for data setting
|
|
|
|
Counter:
|
Forward total, reverse total
|
|
|
|
Output signal:
|
Analog output:
|
Two-way two-way, fully isolated 0~10mA/4~20mA
|
|
|
Output signal:
|
Frequency output:
|
Load resistance: 0~1.5kΩ when 0~10mA; 0~750Ω when 4~20mA
|
|
|
|
Alarm Output:
|
Forward and reverse flow output, the upper limit of output frequency can be set within 1~5000Hz. Open collector bidirectional output of transistor with photoelectric isolation.
The external power supply is not greater than 35V, and the maximum current of the collector when it is turned on is 50mA
|
|
|
|
Pulse output:
|
Two-way open collector alarm output with photoelectric isolation transistor. The external power supply is not greater than 35V,
and the maximum current of the collector when it is turned on is 250mA. Alarm status: fluid empty pipe, excitation disconnection, flow overrun |
|
|
Matching accuracy:
|
±0.5% of indicated value, optional ±0.3% or ±0.2% of indicated value
|
|
|
|
Damping time constant:
|
Continuous variable from 0~100s (90%) time grading optional
|
|
|
|
Communication:
|
Optional RS485 serial communication interface
|
|
|
|
Protection class:
|
IP65
|
|
|
|
Explosion-proof mark:
|
Ex d ia [ia Ga]q IICT6Gb
|
|
|
Product Parameter
At
-40℃
, the comparison between our OLED display and the displays of other products in the same industry (
There will be no problems such as blurring of the display
);
