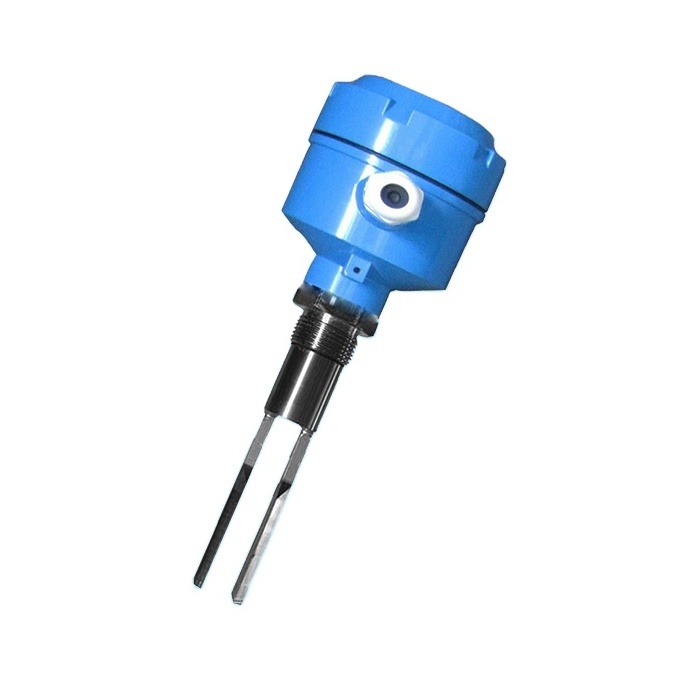

The Tuning Fork Type Level Switch with dual power supply.
The first DC24V ,Nest is AC220V.Which one dou you need?
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
CX-FLS
-
Ambient Temperature:
-
-25~60C Tuning Fork Type Level Switch
-
Material:
-
Copper alloy or stainless steel Tuning Fork Type Level Switch
-
Power supply:
-
AC220V50Hz DC24V
-
working temperature in vessel:
-
-20~200C Tuning Fork Type Level Switch
-
Max pressure:
-
1.0Mpa of Tuning Fork Type Level Switch
-
Frequency:
-
About 200Hz Tuning Fork Type Level Switch
-
Connection:
-
thread and flange
-
Output signal:
-
220VAC 5A,24VDC 10A,
-
Response time:
-
less than 5S Tuning Fork Type Level Switch
-
Max outline of metarial grain:
-
less than 10mm
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
China
-
Brand Name:
-
GN
-
Model Number:
-
CX-FLS
-
Ambient Temperature:
-
-25~60C Tuning Fork Type Level Switch
-
Material:
-
Copper alloy or stainless steel Tuning Fork Type Level Switch
-
Power supply:
-
AC220V50Hz DC24V
-
working temperature in vessel:
-
-20~200C Tuning Fork Type Level Switch
-
Max pressure:
-
1.0Mpa of Tuning Fork Type Level Switch
-
Frequency:
-
About 200Hz Tuning Fork Type Level Switch
-
Connection:
-
thread and flange
-
Output signal:
-
220VAC 5A,24VDC 10A,
-
Response time:
-
less than 5S Tuning Fork Type Level Switch
-
Max outline of metarial grain:
-
less than 10mm
Description
Germany Standard Tuning Fork Type Level Switch
--------- We are gold supplier in 9 consecutive years
Tuning Fork Type Level Switch is a versatile material level switch, since the tuning fork level switch element of inactivity, compared to float level switch, the structure can be avoided, bubbles, vibration. fork level switch with short fork technology, widely used in petroleum, light industry, food, water, environmental protection and other industries. Rem bit upper and lower alarm and control.
The Principle:
The use of piezoelectric crystals and the natural frequency of the forks and the drive rods feedback signal. Resonance tuning fork rod, when a material level contacts fork stick, fork rods will be fed back signal.
Parameters
Tuning Fork Type Level Switch
-------- without quality complaints in 3 consecutive years
|
Ambient Temperature
|
|
-25/+60C
|
|
||
|
Fork Body Material
|
|
copper alloy or stainless steel (order as user requirement)
|
|
||
|
Power Supply
|
|
AC220V/50Hz DC24V
|
|
||
|
Consumption
|
|
1.5W
|
|
||
|
Output Signal
|
|
2 groups of normal open and normal close contact: contact capacity: 220VAC 5A . 24VDC 10A. null has a 10/0mA output.
|
|
||
|
Maximum Outline of Material Grain
|
|
≤10mm
|
|
||
|
Maximum pressure in vessel
|
|
1.0MPa (it should specify pressure while ordering)
|
|
||
|
Working Temperature in Vessel
|
|
-20/+200℃ (it shouldspecify temperature while ordering) |
|
||
|
Vibration Frequency of Tuning Fork
|
|
about 200 Hz
|
|
||
|
Amplitude of Vibration at Tip of Tuning Fork
|
|
about 0.5mm
|
|
||
|
Damp Time Delay of Tuning Fork
|
|
about 2 S
|
|
||
|
Free Time Delay of Tuning Fork
|
|
about 7 S
|
|
||
|
Medium should be none viscous material
|
|
without the contain corrosive material to fork body
|
|
||
Details
Tuning Fork Type Level Switch
------- More 30 years’ technology to focus details
Dual power supply
Import tuning fork
The Import tuning fork and the working life is largr long.
With the best fork could control the accuracy .
Explosion-proof
The fork level switch also could customized the Explosion-proof.
As you see the head with a Ex Note.
Terminals
The Tuning Fork Type Level Switch with a better therminals.
The terminals with a signal light,and wiring location.
Advantages
80%
instruments is for exporting
MORE BETTER THAN OTHER SUPPLIERS
1) We are Alibaba Assessed
9 years Gold Supplier
.
2) We have about 30 years experience in production.
3) 80% Tuning Fork Type Level Switch is exported to
more more 100 countries
.
4) 100% QC inspection Before Shippment.
5)
ISO,CE,SGS
standard and factory price.
Pls Believe our company could provide the best services for you.
The Features of Tuning Fork Type Level Switch
1)Simple structure；
2)Import fork;
3)Dual power supply;
4)Customized the Explosion-proof;
5)Multi-connection: flange and thread.
Installation
The Installation as the picture shows. Pls check it and Installed correctly.So the switch could with a long life.
Dimensions
