Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZIMO
-
Model Number:
-
W6
-
Product name:
-
W6 Dual Moter Electric Scooter
-
Frame:
-
Aircraft-grade Aluminum Alloy
-
Rider Required Height:
-
160-200cm (5'3" - 6'6")
-
Max Payload:
-
150 kg ( 330 lbs )
-
Max. Climbing Angle:
-
Approx. 30°
-
Battery:
-
High Quality 18650 Lithium Ion Battery 52V 23Ah
-
Typical Mileage:
-
Approx. 50 km
-
Motor:
-
Front & Rear 52V 1000W BLDC Hub Motor
-
Max Speed (Km/h):
-
Approx. 60 km/h (37.27 mph )
-
Shock Absorber:
-
Front and Rear Spring Suspension
Quick Details
-
Foldable:
-
Yes
-
Range Per Charge:
-
50km
-
Max Speed:
-
51-65km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZIMO
-
Model Number:
-
W6
-
Product name:
-
W6 Dual Moter Electric Scooter
-
Frame:
-
Aircraft-grade Aluminum Alloy
-
Rider Required Height:
-
160-200cm (5'3" - 6'6")
-
Max Payload:
-
150 kg ( 330 lbs )
-
Max. Climbing Angle:
-
Approx. 30°
-
Battery:
-
High Quality 18650 Lithium Ion Battery 52V 23Ah
-
Typical Mileage:
-
Approx. 50 km
-
Motor:
-
Front & Rear 52V 1000W BLDC Hub Motor
-
Max Speed (Km/h):
-
Approx. 60 km/h (37.27 mph )
-
Shock Absorber:
-
Front and Rear Spring Suspension

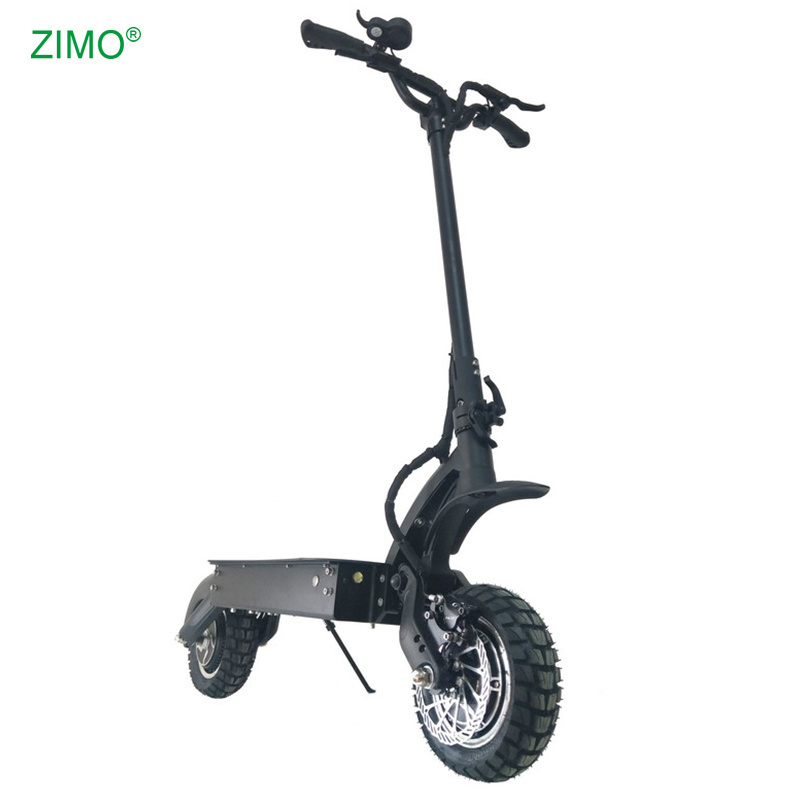

Dual Motor Electric Scooter W6
Two Wheels Wide Wheel Electric Scooter ZIMO W6
The ZIMO W6 is a new evolutionary e-scooter that has ridiculously wide 100mm tyres, although the very wide tyres look somewhat odd on an e-scooter, the amount of traction during turns as well as the upright stability of this e-scooter gives you a truly safe and stable ride, in addition, both the front and rear wheels have built in suspensions that are made of four individual alloy coil springs which makes your every ride incredibly smooth and comfortable.
The ZIMO W6 is fitted with a high powered 52V 1000W BLDC hub motor which provides a huge amount of torque for excellent climbs up steeper inclines as well as much improved riding performance for those demanding riding conditions. Proudly designed in Korea, the next generation controller box is customized to enhance the riding performance while prolonging the life of the motor with a smart heat controller. The main frame is forged with cutting edge die casting methods which gives this e-scooter excellent quality and strength while still maintaining beautiful esthetics.
For added safety, the ZIMO W6 has a built-in front LED light as well as a rear brake light, and for excellent stopping power, a 120mm big brake disc is built-in as well.Aircraft-grade Aluminum Alloy.
|
SPECIFICATION
|
W6 Dual Motor Electric Scooter
|
|
Frame
|
Aircraft-grade Aluminum Alloy
|
|
Dimension ( LxWxH )
|
1270x600x1170mm (unfold), 1350x450x340mm (fold)
|
|
Rider Recommended Age
|
16+ years
|
|
Rider Required Height
|
160-200cm (5'3 - 6'6)
|
|
Display
|
LCD Display with Mobile Phone USB Charging Port
|
|
Max Payload
|
150 kg ( 330 lbs )
|
|
Max. Climbing Angle
|
Approx. 30°
|
|
Operating Temperature
|
"-10°C ~ 40°C (14 ~ 104°F)
|
|
Storage Temperature
|
"-20°C ~ +50°C ( -4°F～122°F )
|
|
Battery
|
High Quality 18650 Lithium Ion Battery 52V 23Ah
|
|
Typical Mileage
|
Approx. 50km (Slightly different depending on the riding status)
|
|
Charger
|
AC100～240V input 50-60Hz, 78W
|
|
Charging Time
|
Approx. 15H
|
|
Motor
|
Front & Rear 52V 1000W BLDC Hub Motor
|
|
Max Speed (Km/h)
|
Approx. 60 km/h (37.27 mph )
|
|
Shock Absorber
|
Front and Rear Spring Suspension
|
|
Front & Rear Tire
|
10" Off Road Pneumatic Tires and Alloy Wheel Rim
|
|
Front & Rear Light
|
Front and Rear Lights
|
|
Front & Rear Brake
|
Front and Rear Disc Brake with EBS System
|
|
Net Weight
|
Approx. 37 kg ( 81.57 lbs )
|
|
Gross Weight
|
Approx. 43 kg ( 94.8 lbs )
|
|
Carton Size
|
1440*360*660 mm
|
|
Container Loading
|
72 pieces/20'GP, 192 pieces/40'HQ
|
Main Features
The High-powered 52V 1000W Brushless Hub Motor and Climbing Hill Torque
ZIMO W6 boasts high-powered 52V 1000W brushless hub motor which offer hill climbing torque and improves performance in more demanding driving conditions.
Two Independent Suspension System to Offer Unparalleled Riding Comfort
With two independent suspension, one in the front and one in the rear, ZIMO W6 offers maximum and unparalleled riding comfort even on the bumpy road. Furthermore, special alloy-made coil springs are designed to adjust shocks to road conditions and to control all of the unwanted motions that can occur in the ride.
The Wide Tires ever to Offer the Best Riding Experience
ZIMO W6 is equipped with the wide tires (100mm wide) in its class, which provide you greater driving comfort that you have never experienced before. These tires are filled with the polyurethance foam fluid and ready for all terrain that you might encounter. These tires are less puncture prone, long lasting.
Lightweight and Solid Aluminum Magnesium Alloy Wheel
The customized lightweight and solid aluminum-magnesium alloy wheels are paired with the pneumatic tires and high powered BLDC motor, which allow for stable drive on any road condtions.
Braking System with the Built-in 120mm Wider Brake Disc
120mm brake disc and first-class calipers are integrated into the braking system of ZIMO W6, which is the perfect solution to make it especially safe on steep slopes.
High-efficiency Lithium Ion Battery
ZIMO W6 is equipped with high efficient lithium ion battery, which provides the motor with optimal electricity in a variety of real life situations. ZIMO W6 is equipped with 1000Wh 18Ah battery pack (driving range: 40km) and you can choose optional battery for greater range (driving range: 50km).
Next-Generation Controller Box
Next-generation controller box is integrated into ZIMO W6, which was specially developed to cope with rough road types commonly. One of the main enhancements is to inrease the life cycle of motor by controlling overheating effectively.
All-in-one Compact Design
ZIMO W6's main parts have been integrated into aluminum alloy main body using cutting-edge die casting method. The all-in-one design offers improved quality by eliminating complex hardware specification.
The Most Advanced Steering Wheel
The steering wheel control module which is combined with tapered roller bearing, delivers accurate and precise steering capabilities. This module is specially designed not to vulnerable to shock from any road conditions.
High Liminance LED Hea Light and Brake Light
ZIMO W6 is equipped with a high luminace LED headlight and brake light, which allow user to ride this electric scooter safely at night.
