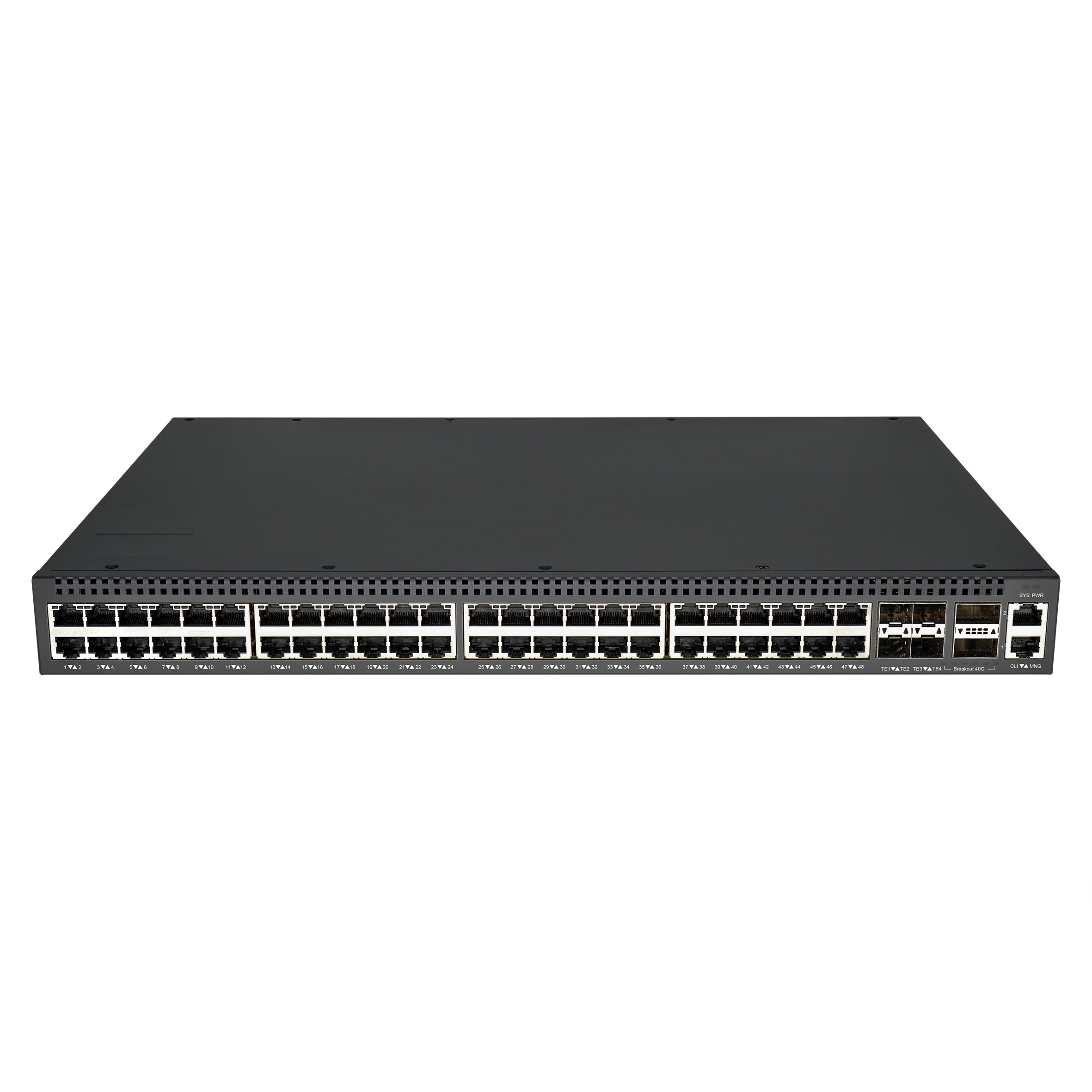

48-Port 2.5G network switch 40G uplink fiber optical switch same as C9300 series

48-Port 2.5G network switch 40G uplink fiber optical switch same as C9300 series

FOB Reference Price: Get Latest Price

≥1 Pieces

US $800

≥50 Pieces

US $696

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM/ODM

Model Number:: S4300-48M4XF2QF

Place of Origin:: Guangdong, China

Product status:: In stocked

Switching Capacity:: 1280Gbps

Keywords:: 48-Port 2.5G network switch 40G uplink fiber optical switch same C9300

Interface:: 48*2.5G+4*10G SFP+2*40G QSFP

Power Consumption:: 120W

Power input:: AC 100~240VAC, 50/60Hz

Flash memory:: 256MB

Environmental:: Operating Temperature: 0~40℃ Storage Temperature: -20~70℃

Dimensions (W x D x H):: 440(W) x 44(H) x 280(D)mm

Weight:: 4.85kg

Quick Details

Transmission Rate:: 48*2.5G+4*10G SFP+2*40G QSFP

Communication Mode:: Full-Duplex

Switch Capacity:: 1280Gbps

Brand Name:: OEM/ODM

Model Number:: S4300-48M4XF2QF

Place of Origin:: Guangdong, China

Product status:: In stocked

Switching Capacity:: 1280Gbps

Keywords:: 48-Port 2.5G network switch 40G uplink fiber optical switch same C9300

Interface:: 48*2.5G+4*10G SFP+2*40G QSFP

Power Consumption:: 120W

Power input:: AC 100~240VAC, 50/60Hz

Flash memory:: 256MB

Environmental:: Operating Temperature: 0~40℃ Storage Temperature: -20~70℃

Dimensions (W x D x H):: 440(W) x 44(H) x 280(D)mm

Weight:: 4.85kg

48-Port 2.5G network switch 40G uplink fiber optical switch same as C9300 series

Product Description

Products Datasheet

Product	Specifications
Physical Specification	Description
Performance	• Switching Capacity: 1280Gbps • Throughput: 630Mpps • MAC Capacity: 32K
Hardware	• Flash Memory: 256MB • DRAM: 4GB
Interface	• 48-Port 10/100/1000/2500Base-T • 4-Port 10G Base-R(SFP/SFP+) • 2-Port 40G Base-R(QSFP/QSFP+) • 1-Port Console(With RJ-45)
Power	• Input:AC 100~240VAC, 50/60Hz • Power Consumption: 120W
Environmental	• Operating Temperature: 0~40℃ • Operating Humidity: 20~85%RH (Non-Condensing) • Storage Temperature: -20~70℃ • Storage Humidity: 5~95%RH (Non-Condensing)
Mechanical	• Dimension: 440(W) x 44(H) x 280(D)mm • Weight:4.85kg
Air Flow	• FAN : Forced-Air Cooling

Features	Description
MAC switching	• Static allocation • Dynamic learning • IEEE 802.1AE MacSec Security Control • Aging time configuration • Mac address filtering • Quantitative limitation of learning • Black hole MAC entry • View and Clear
VLAN	• 4K VLAN ID • GVRP • 1：1 and N：1 VLAN Mapping • Port VLAN • Private VLAN • Basic QinQ and flexible QinQ functions
STP	• Support 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) • Supports BPDU protection, root protection, and loop protection
Multicast	• IGMP v1/v2/v3 • IGMP Snooping • IGMP Fast Leave • Policy and quantity constraints • PIM-SM、PIM-DM • Traffic is replicated across vlans
IPv4	• Static route, RIP v1/v2, OSPF, • BGP, IS-IS, BEIGRP • Policy routing • Equal-cost route • Realize load balancing • BFD for OSPF、BGP
IPv6	• ICMPv6、DHCPv6、ACLv6、 • IPv6 Telnet • IPv6 neighbor discovery • Path MTU discovery • MLD v1/v2 • MLD Snooping • IPv6 static route、RIPng、 • OSPFv3、BGP4+ • Manual ISATAP 6to4 tunnel
MPLS VPN	• LDP • MCE • P/PE requirements • MPLS TE • MPLS OAM
Qos	• L2/L3/L4 Traffic classification • CAR • 802.1P/DSCP • SP、WRR、SP+WRR • Tail-Drop、WRED • Traffic monitoring and shaping • Ingress和Egress ACL • L2/L3/L4 and IP quintuple • Hash
Security	• DDoS SYN Flood UDP Flood • unicast packets • ACL flow identification and filtering • Port isolation • IEEE 802.1x certification • Port security IP+MAC+ port bonding • Radius、BDTacacs+ uRPF • CLI cascade protection • DHCP Snooping DHCP Option 82
Reliability	• Power supply 1+1 backup • Link aggregation • EAPS ERPS HSRP VRRP • BFD for OSPF、BGP • GR for OSPF BGP • ISSU
Management	• Console、Telnet、SSH 2.0 • ZTP • SNMP v1/v2/v3 • TFTP • RMON • sFLOW
Green energy saving	• IEEE 802.3az Green Energy Efficient Ethernet

Packing&Shipping

Shipment

Company Introduction

PDnet has over 20 years of history in Shenzhen, China. We are a professional one-stop-solution manufacturer and supplier ofvarious Telecommunication Networking products. Our vision is to build innovative, easy-to-use, fast and reliable Network switches.From the network core to the periphery, PDnet's Telecommunication Networking solutions enable users to share broadband access,multimedia content, and network peripherals for true anywhere connectivity. PDnet's diverse product includes Desktop Switch, PoE Switch, non PoE Switch, Enterprise Switches, Ethernet network, especially the top-leading technology in the ODM/OEM. We can alsoproduce the goods according to clients' requirements. Our products are popular in Korea, Japan, Southeast Asia, USA, and Europe.Don't hesitate to contact us if you are interested, thanks!

FAQ

1. Business Type
-- Manufacturer located in ShenZhen, China
-- Factory is 3000 square
-- Employees: over 70 in office & workshops

2. Can you make the network switch with ODM/OEM?
-- YES. We have strong R&D capability, also a great term of technical engineers, each of them have many work years experience.

3. Do you provide the samples?
-- YES. We can offer sample to you.

4. Quality Control
-- 100% inspection before package
-- Spot inspection before shipment

5. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.

6. Why choose us?
-- Competitive Price & 7*24 after-sale services.
-- From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control
points, strict aging, finished product inspection.
-- Over 20years experience in the Telecommunication Networking field.
