Pneumatic rewinder automatic thermal paper roll making machine for paper roll

Pneumatic rewinder automatic thermal paper roll making machine for paper roll

FOB Reference Price: Get Latest Price

≥1 Sets

US $7235

≥2 Sets

US $7135

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V

Power:: 5.5KW

Dimension(L*W*H):: 2600mm*2500mm*2200mm

Weight:: 1350 kg

Width of jumbo paper roll:: 1600 mm

Diameter of jumbo paper roll:: 1200 mm

Diameter of rewinding roll:: 750 mm

Slitting width:: mini 30mm

Main Power:: 5.5KW

Slitting capability for paper:: 80~600g

Slitting knife:: 18 sets

Working speed:: 1~150 Meter/min

Power Input:: 380V/220V

Dimension:: 260*250*220cm

Quick Details

Production Capacity:: 0~150m/min

Place of Origin:: China

Brand Name:: JYD

Voltage:: 220V/380V

Power:: 5.5KW

Dimension(L*W*H):: 2600mm*2500mm*2200mm

Weight:: 1350 kg

Width of jumbo paper roll:: 1600 mm

Diameter of jumbo paper roll:: 1200 mm

Diameter of rewinding roll:: 750 mm

Slitting width:: mini 30mm

Main Power:: 5.5KW

Slitting capability for paper:: 80~600g

Slitting knife:: 18 sets

Working speed:: 1~150 Meter/min

Power Input:: 380V/220V

Dimension:: 260*250*220cm

Products Description

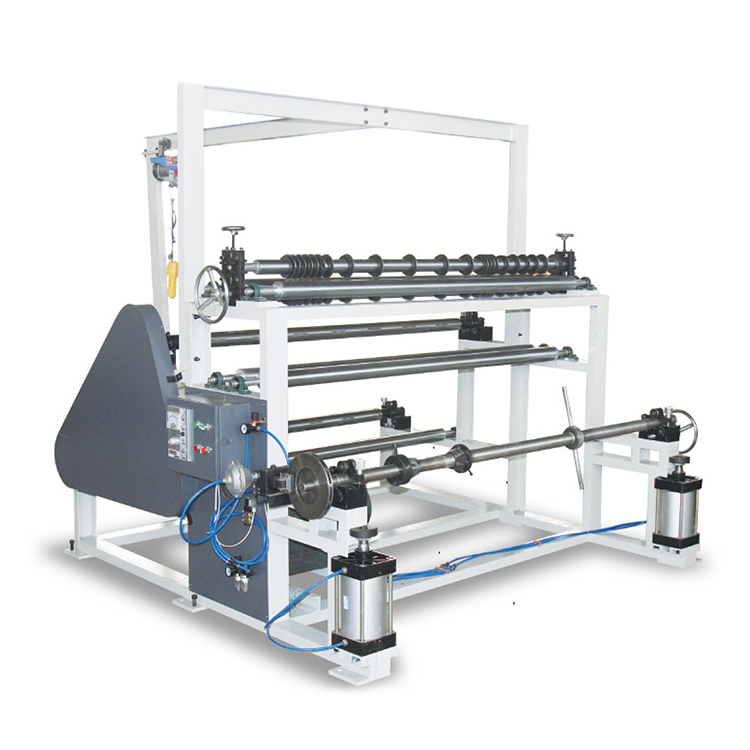

FQ-1600A Semi-auto Slitting Machine

FEATURE:

1.Double thickness blades cutting.

2.The two side of the paper will be smooth after the cutting,without any burring.

3.Tray paper will be tidy with two sides feat.

4. With the computer rectified system and it can rectified automatically.

5.With high capacity, the 1pc machine can meet 3 sets paper tube making machines

6. Stainless steel body and beautiful.

7. Pneumatic discharge with easy operation.
8.Double magnetic powder brake control, and with equally tension.

Parameter Sheet

Item#	Specification	Details
01	Width of Jumbo Paper Roll	1600（mm）
02	Diameter of Jumbo Paper Roll	Φ1200（mm）
03	Diameter of rewinder roll	Φ750mm
04	Slitting width	>30(mm)
05	Slitting capability	80-600g
06	Motor power	5.5kw
07	Slitting knife	18sets
08	Rewinding way	Gas up outside the closed
09	Speed of adjust and control	Magnetic force
10	Speed of Slitting	1-150（m/min)
11	Power input	380V/220V
12	Dimension: LWH	2600mm2500mm2200mm
13	Total weight	1310kg

Details Images

After-sales service

* All of our equipment contain ONE(1) year warranty.

* Spare parts could be replaced with fast delivery and within 3 work days.

* Online guide to installation and commission, on-site service is also available if need.
* 24 hours/day and 7 days/week for after-sales service, online guide etc.
* Any problem once you have, get in touch with us anytime.
