Quick Details
-
Weight:
-
50 kg
-
Dimension(L*W*H):
-
650*380*650
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Santai
-
Power:
-
0.75KW
-
Weight:
-
50 kg
-
Dimension(L*W*H):
-
650*380*650
Products Description
Factory Applicable Industries New Condition Stainless Steel Juice Filter Press Food Grade for Food & Beverage

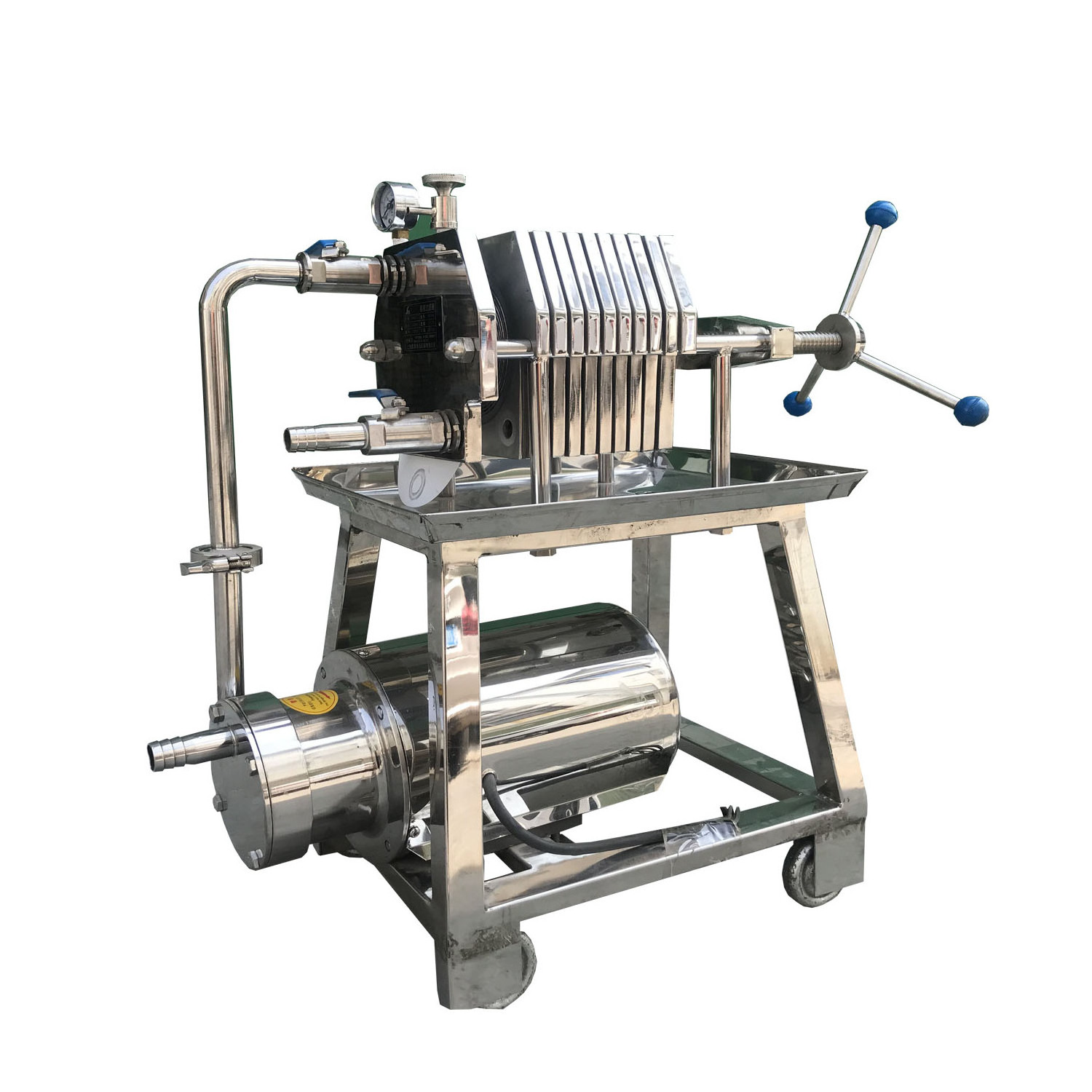

The plate and frame filter press is a stainless steel multi-layer plate and frame filter press. It is suitable for liquids with a low viscosity of 50% or less and a small amount of slag as a seal to achieve purification, sterilization, clarification and other fine filtration, semi-fine filtration. The requirement is to directly select the microporous membrane (for the purpose of sterile filtration without passing through the microporous membrane filter)
In addition to the motor, the machine is made of 304 or 316 high-quality corrosion-resistant stainless steel material. It is suitable for filtering various pH acid and alkali solutions. The machine is applied with pressurized sealed filter, which has good filtering quality and high efficiency. The filtering part is composed of ten layers of filter plates, which has large filtering area and large circulation; and can be replaced according to different production processes (primary filtration, semi-fine filtration, fine filtration) of the filtered solution, different filter membranes, and flow according to user production. The size can appropriately reduce or increase the number of filter plates to make it suitable for production.
Uses and advantages:
1. This machine can be widely used in pharmaceutical, food, beverage, water treatment, brewing, petroleum, chemical, anti-corrosion, environmental protection and other industries. It is the latest equipment for filtration, clarification, purification and sterilization of various liquids;
2. Using the bump type filter plate, the water cross-sectional area is effectively increased, the liquid filtration and the flow resistance are reduced, the liquid can flow freely without blocking the dead angle, and the liquid performance can be kept stable, and the bump type filter plate makes the filter material ( Filter membrane, filter paper, etc.) are not easy to damage you, extending the service life of various filter materials;
3. All the sealing parts are equipped with milky silicone rubber sealing ring, which is non-toxic, high temperature resistant and non-leakage. That is, a circular sealing ring is installed on the sealing parts of the front and back of the filter frame and the double-folded snap ring of the inlet and outlet;
4. The input pipe part is tightly sealed by a double-folded snap ring connection, which is convenient for disassembly and cleaning;
5. This machine can be used according to the different production processes (primary filter, semi-fine filter, fine filter) of the filtered liquid. Users can replace different filter media according to the production flow rate, correspondingly reduce or increase the filter frame filter material, so that it can be widely adapted to production. need;
6. When the filter is working, the sealing ring is pressed, the liquid is not depleted, the liquid has good clarity, and the microporous membrane is used for sterilization, and the sterilization effect is particularly good.
