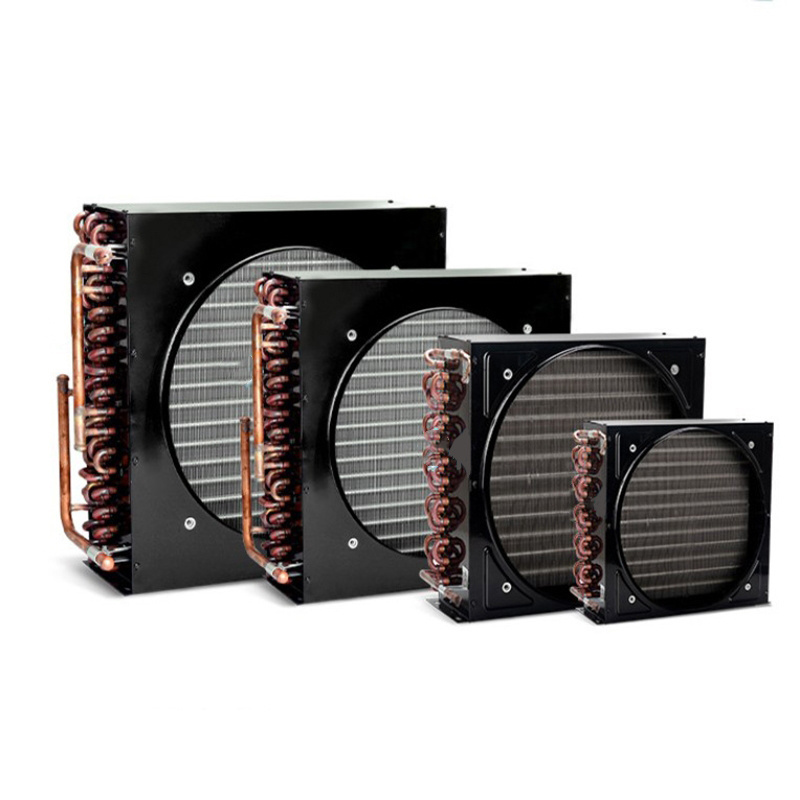

Air cooled fin type condensing unit condenser for cold room

Air cooled fin type condensing unit condenser for cold room

FOB Reference Price: Get Latest Price

≥10 Pieces

US $36

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TianYang

Product name:: air cooled condenser

Copper tube diameter:: 9.52mm

Size1:: FNF-1.8/9.8

Size2:: FNF-2.5/11.3

Dimensions:: 355*330*150mm

Fin spacing:: 3mm

Case material:: Galvanized Steel/Aluminum plate

Tube material:: Copper Tue

Fin material:: Hydrophilic Aluminum Foil

Scope of application:: Air conditioning, refrigerator, refrigeration equipment

Quick Details

Type:: Condenser

Application:: Refrigeration Parts

Place of Origin:: Henan, China

Brand Name:: TianYang

Product name:: air cooled condenser

Copper tube diameter:: 9.52mm

Size1:: FNF-1.8/9.8

Size2:: FNF-2.5/11.3

Dimensions:: 355*330*150mm

Fin spacing:: 3mm

Case material:: Galvanized Steel/Aluminum plate

Tube material:: Copper Tue

Fin material:: Hydrophilic Aluminum Foil

Scope of application:: Air conditioning, refrigerator, refrigeration equipment

Air cooled fin type condensing unit condenser for cold room

Picture&Models

Custom Mould

Dimensions:
1. Length between end plates? 2. Wide? 3. Height? 4. Pipe diameter? 5. Fin Wide? 6. Fin Height? 7 . Fin spacing?

Materials:
1. Tube: copper or aluminum 2. Fin: hydrophilic foil or aluminum foil 3. Shell: aluminum plate, galvanized plate, stainless steel plate

Design:
1. Drawings 2. Samples 3. Photos (please provide three photos, both sides of the copper pipe layout and the front photo)

NO.	OD(mm）	Hole（mm）	Row（mm）	Fin spacing（mm）
1	Ф5	21	18.2	1.5-4
2	Ф7	19.1	16	1.5-2.5
3	Ф7	21	12.7	1.5-2.5
4	Ф7	20.8	20	2.2-4
5	Ф7	17	14	2.5
6	Ф9.52	25	21.65	2.2-8
7	Ф9.52	25.4	22	1.8-2
8	Ф9.52	25	25	3.5-4.5
9	Ф12	38	32.91	5-8.5
10	Ф12.7	35	35	5-8
11	Ф12.7	31.75	27.5	3-7
12	Ф15.88	38	32.91	4.5-8
12A	Ф15.88	55	27.5	5-7.5

Product Advantages

Production Process

Tip： Quality inspection

Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special welded joints),
please check when receiving the goods. If you find pressure leakage after receiving the goods, .Please contact the logistics side
as soon as possible and inform our customer service.

Packing & Delivery

Small Sample Package
Packing: carton + filler
Logistics: DHL, federal, Ups, and other international logistics

Bulk Packing

Packing: carton + base. Or a foundation
Logistics: Air to port, Air to door, Buyers pick up, Sea to port

Bulk Packing

Packing: wooden cases + cartons
Logistics: Air to port, Air to door, Buyers pick up, Sea to port

More Products

Copper tube fin type condenser coil for refrigeration equipment

Copper tube copper fin refrigeration evaporator

Finned evaporator for commercial refrigerated cabinets

Copper tube aluminum fin air - cooled condenser coil with price

Copper tube cold room unit cooler, air-cooled condenser, cold room evaporator

Finned copper tube air-cooled condenser coil for refrigeration equipment

L type copper fin copper tube evaporator for air conditioning

Copper tube fin dry cleaning machine evaporator

Condensing unit condenser for refrigeration equipment

Choose us

FAQ

Q1:Where is your factory located?

A1:Plant 3, Industrial Cluster, Xueyuan Road, Huixian City, Xinxiang City, Henan Province, China

Q2：Whether sample service is supported？

A2:Yes.

Q3:How long is your production schedule?

A3:The normal construction period is 7-15working days after the arrival of the payment, and it will be postponed under special circumstances

Q4：What is your logisticspackaging method?

A4: Express or air: carton + stuffing Shipping: Wooden case or carton + base

Q5:Price description

A5:All products in this link are customized products for manufacturers, all pictures are sample layout, not for sale; All prices are for the convenience of payment, not the actual price of the product, please do not place orders directly

Q6：Pressure leakage
A6:Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special
welded joints), please check when receiving the goods. If you find pressure leakage after receiving the goods, .Please contact the logistics side as soon as possible and inform our customer service.

Q7:Transport causes the fin to deform

A7.:Please contact the logistics party for claim immediately after receiving the goods.The fin texture is soft, bump in transportation may cause the fin to overwhelm the deformation, (Fin deformation is a normal phenomenon, you can contact the customer service to inform the solution, if there is no damage, it does not affect the use, non-product quality problems, do not support return and replacement.
