- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SIGO
-
Voltage:
-
220V/50Hz; 110V/60Hz;
-
Dimension(L*W*H):
-
52*42*35cm
-
Weight:
-
28KG
-
Product name:
-
SIGO MY-380F Auto Dry Ink Roller Batch Coding Machine
-
Solid ink wheel size:
-
35*15mm
-
Feeding speed:
-
38m/min
-
Printing width:
-
0-88mm
-
Feeding width:
-
40*180mm
-
Feeding length:
-
55*320mm
-
Max. printing rank:
-
10
-
Max. printing word each rank:
-
11
-
Counting:
-
0-9999
-
Consumable:
-
Ink Roll
-
Certification:
-
CE;ISO9001
Quick Details
-
Automatic Grade:
-
Automatic
-
Application:
-
Date Coding Machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIGO
-
Voltage:
-
220V/50Hz; 110V/60Hz;
-
Dimension(L*W*H):
-
52*42*35cm
-
Weight:
-
28KG
-
Product name:
-
SIGO MY-380F Auto Dry Ink Roller Batch Coding Machine
-
Solid ink wheel size:
-
35*15mm
-
Feeding speed:
-
38m/min
-
Printing width:
-
0-88mm
-
Feeding width:
-
40*180mm
-
Feeding length:
-
55*320mm
-
Max. printing rank:
-
10
-
Max. printing word each rank:
-
11
-
Counting:
-
0-9999
-
Consumable:
-
Ink Roll
-
Certification:
-
CE;ISO9001
Product Description

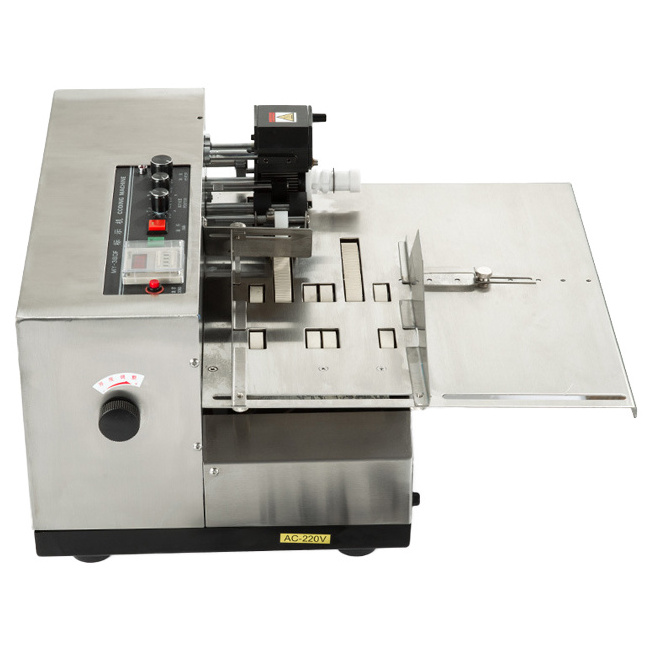

MY-380F Automatic Dry Ink Roller Batch Coding Machine
MY-380 Coding machine is an advanced contact thermal coding machine.This machine adopts automatic and intermittent heating and precise mechanical combination, according to user needs, choose the code content and code position, number and set the code coding speed, reliable performance, clear writing, marking and counting by photoelectric switch control action.
The machine has the advantages of novel structure, stainless steel structure, photoelectric control, automatic counting, and can be preset and the seal number and position.
The solid ink printing, advanced writing clear, instant printing and instant dry, not easy to erase.
The ink round marking machine is widely used in medicine, food, cosmetics, metal labels, plastic bags, batch number, date of the shelf life of printing industries of paper box, paper, plastic bags, aluminum foil and other materials surface code.
The machine has the advantages of novel structure, stainless steel structure, photoelectric control, automatic counting, and can be preset and the seal number and position.
The solid ink printing, advanced writing clear, instant printing and instant dry, not easy to erase.
The ink round marking machine is widely used in medicine, food, cosmetics, metal labels, plastic bags, batch number, date of the shelf life of printing industries of paper box, paper, plastic bags, aluminum foil and other materials surface code.
MY-380F use solid ink roll & Fast-dry ink roller, which is suitable for any kinds of material. The types can be used for a long time. The object is selected by special sensor, and governed by special stepping clutch.
|
Model
|
MY-380F
|
MY-380W
|
|
Solid ink wheel size
|
35*15mm
|
35*15mm
|
|
Feeding speed
|
38m/min
|
38m/min
|
|
Printing width
|
0-88mm
|
0-88mm
|
|
Feeding width
|
40*180mm
|
40*300mm
|
|
Feeding length
|
55*320mm
|
55*320mm
|
|
Max. printing rank
|
10
|
10
|
|
Max. printing word each rank
|
11
|
11
|
|
Counting:
|
0-9999
|
0-9999
|
|
Consumable:
|
Ink Roll
|
Ink Roll
|
Details Images
MY-380F Automatic Dry Ink Roller Batch Coding Machine
|
1.Thickness knob
|
7.Printing wheel
|
|
2.Panel
|
8.Sensor
|
|
3.Feeding roller
|
9.Feeding sub-roller
|
|
4.Eccentric roller wheel
|
10.Pressure sheet
|
|
5.Ink roller
|
11.Feeding belt
|
|
6.Out roller
|
12.Feeding guide
|
Control Pannel
1) MATER-It controls the Sensor and the Clutch. Put ‘on’ to get the signal of sensor and action of clutch.
2) POSITION-It’s a delay switch and can control the printing position. Turn it to the right to postpone the ‘delay time’. ‘A’ is rough adjustment, while ‘B’ is fine adjustment.
3) RUN- It controls the operation of the motor and feeding belt.
4) HEATER-The brighter light stands for higher temperature.
5) TEMP-It can control temperature. Turn it clockwise to increase temperature.
6) COUNTER-It can record the quantity of sheets.
7) ZERO-set the counter back to zero.
Packing & Delivery
MY-380F Automatic Dry Ink Roller Batch Coding Machine
|
Packaging for Automatic Coding Machine
|
|
|
|
Size
|
52 (L) * 42 (W) * 35 (D)cm
|
|
|
Weight
|
28kgs
|
|
|
Packaging Details
|
|
|
Certifications
System Certification:
*GBT/TB28001-2011 Occupational health and Safety Management System;
*The generator passed CCC, CE,GS,SGS,EU2,SASO,SONCAP certifications, etc.
Our Company
Hangzhou Fuyang Sigao Office Supplies CO., LTD was founded in 2003. Our company is a synthetical enterprise occupying more than ten thousand square meters of factory building. We own import and export right.
The major products of our corporation are text binding machines, paper processing machinery, and various of file folder/binding materl (Binding plstic comb, double loops wire, spiral coil, paper cover, PVC cover, slide binder,etc). In addition, we also deal with office consumption, such as cover paper of binding,clamp bars, plastic and rubber rings, and iron rings. Our products have won high reputation among customer at home and abroad for the reliable performance and novel design.
Welcome to visit our company and cooperate with us.
FAQ
Q1. Can I have a sample order for semi automatic coding machine?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time of batch coding machine ?
A:Sample needs 3-5 days, mass production time needs 2-32 weeks for order quantity more than
Q3. Do you have any MOQ limit for d ry ink coding machine ?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for a
utomatic solid ink roll coding machine
?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on coding machine?
A: No, we provide free sample without LOGO. If you need to do, you should pay for printing charge.
Q6: Do you offer guarantee for
automatic date batch coding machine
?
A: Yes, we offer 1-3 years warranty to our products.
Q7: Are you a factory or trading company ?
A: Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around 1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
