Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LT
-
Model Number:
-
LT-M20T01
-
Name:
-
PVC Insulation Electrical Wire Cable
-
Certification:
-
CE
-
Conductor:
-
Copper Core
-
Insulation:
-
PVC Insulation Cable
-
Material:
-
PVC Copper
-
Rated Voltage:
-
300V
-
Jacket:
-
PVC Jacket
Quick Details
-
Type:
-
connector
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LT
-
Model Number:
-
LT-M20T01
-
Name:
-
PVC Insulation Electrical Wire Cable
-
Certification:
-
CE
-
Conductor:
-
Copper Core
-
Insulation:
-
PVC Insulation Cable
-
Material:
-
PVC Copper
-
Rated Voltage:
-
300V
-
Jacket:
-
PVC Jacket
Product Description
Specification
|
Model No.
|

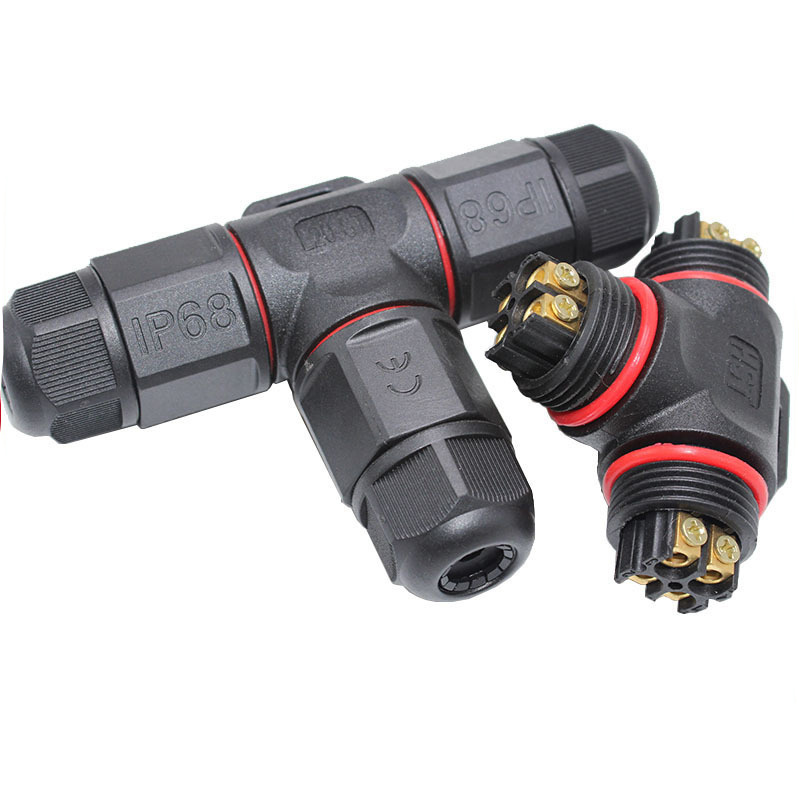

M20 Waterproof Connector free Screw connector
|
|
|
||
|
Core Number
|
2 Pin
|
3 Pin
|
4 Pin
|
||
|
Rated Voltage
|
24-300V
|
|
|
||
|
Withstand Voltage
|
2000V
|
2000V
|
1500V
|
||
|
Rated Current
|
20A
|
20A
|
10A
|
||
|
Wire Matching
|
≤1.5m²
|
≤1.5m²
|
≤1.0m²
|
||
|
Wire Outer Diameter
|
6.0mm≤Φ≤10.0mm
|
|
|
||
|
Hardware
|
Copper Plating
|
|
|
||
|
Contact Resistance
|
≤10mΩ
|
|
|
||
|
Operating Temperature
|
-40℃ - + 105℃
|
|
|
||
|
Number of Pluggable
|
5000
|
|
|
||
|
Waterproof Level
|
IP68
|
|
|
||
|
Plastic Material
|
NyLon/Rubber
|
|
|
||
|
Waterproof Ring
|
Red Silicone Rubber Ring
|
|
|
||
|
Connection Method
|
Butt Tightened
|
|
|
||
|
Color
|
Black, white, accept customization
|
|
|
||
Application
More of application
Linktron All waterproof connector are IP65-IP68 waterproof level, and through the tuv certification, the best-selling products in nearly 30 provinces, municipalities and autonomous regions and exported to North America, Europe, Southeast Asia and other countries. Widelyused in electronics, electrical, communications, lighting, LED display, stage sound, machine tools, automation equipment andconstruction machinery and other industries.
