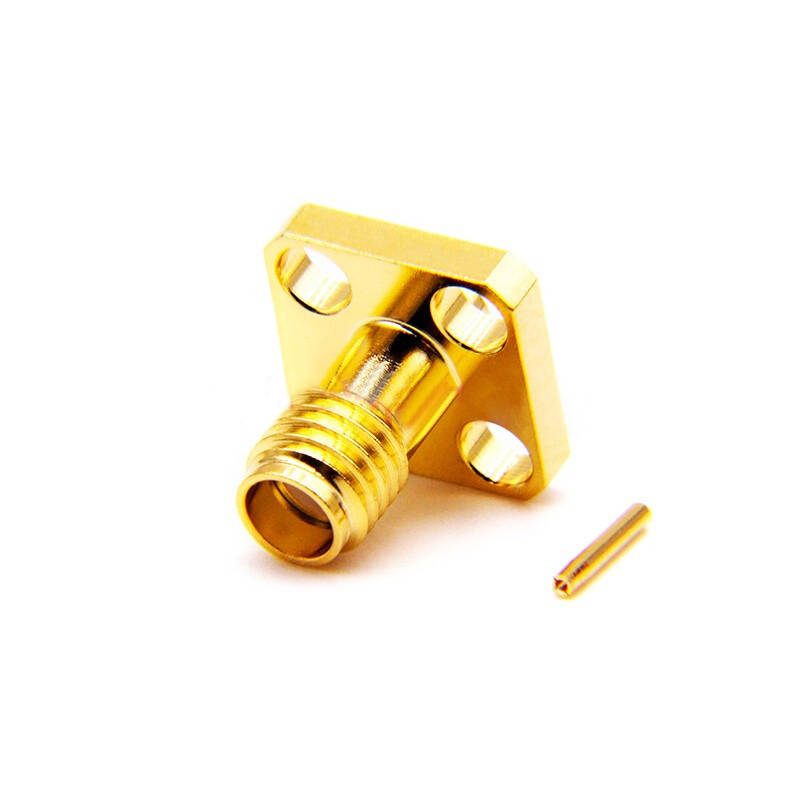

High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable
High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable
High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable
High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable
High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable
High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable

High power female 4-hole flange panel mounting RF coaxial connector Sma for 086 cable

FOB Reference Price: Get Latest Price
≥100 Pieces
US $3.25
≥500 Pieces
US $2.1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand:
ZSX
Color:
Gold
Material:
gold plated brass
Product Name:
RF SSMA Series Connectors
product mix:
straight form
Body Material:
gold plated brass
Rrequency range:
DC-18GHZ
Index of characteristic:
50Ω
Dielectric Strength:
1000V
Insulation Resistance:
≥5000MΩ
Durability:
≥500 times
Installation method:
crimping
VSWR:
≤1.3+0.02f(GHZ)

Quick Details

Model Number:
SSMA-KFB4113
Type:
RF connector
Place of Origin:
Shaanxi, China
Brand:
ZSX
Color:
Gold
Material:
gold plated brass
Product Name:
RF SSMA Series Connectors
product mix:
straight form
Body Material:
gold plated brass
Rrequency range:
DC-18GHZ
Index of characteristic:
50Ω
Dielectric Strength:
1000V
Insulation Resistance:
≥5000MΩ
Durability:
≥500 times
Installation method:
crimping
VSWR:
≤1.3+0.02f(GHZ)
Products Description
Order Number

80316


Type

SSMA


product mix

straight form


Gender

female


Body Material

gold plated brass


Rrequency range

DC-18GHZ


Index of characteristic

50Ω


Dielectric Strength

1000V


Insulation Resistance

≥5000MΩ


Durability

≥500 times


Installation method

crimping


VSWR

≤1.3+0.02f(GHZ)


Temperature range

- 65 ℃ ~ + 125 ℃


Outer conductor (mΩ)

Stainless steel≤5.0mΩ Copper alloy≤2.5mΩ


Center conductor(mΩ)

≤4mΩ


Cable Type

/


Usage

Communication equipment, microwave devices


Adapter cable
KTR086/KTG086/RM086
