Quick Details
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC 8-38V
-
Lamp Luminous Flux(lm):
-
48000 lumen
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30℃~60℃
-
Working Time (hours):
-
12
-
Data Storage Options:
-
NVR
-
LED lights:
-
2*50W /2*100W High bright LED lights
-
Solar power:
-
3*100W solar panel
-
Height of telescopic mast::
-
6m ( 3 to 9m could be customzied)
-
Waterproof:
-
IP65 waterproof
-
Light Distance:
-
150 meters
-
Battery:
-
100Ah /200Ah/ 400Ah optional
-
Function:
-
Local & remote real time viewing and control
-
Application:
-
Construction sites & kinds of events
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Okaf
-
Model Number:
-
OK-PR07-LED
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC 8-38V
-
Lamp Luminous Flux(lm):
-
48000 lumen
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30℃~60℃
-
Working Time (hours):
-
12
-
Data Storage Options:
-
NVR
-
LED lights:
-
2*50W /2*100W High bright LED lights
-
Solar power:
-
3*100W solar panel
-
Height of telescopic mast::
-
6m ( 3 to 9m could be customzied)
-
Waterproof:
-
IP65 waterproof
-
Light Distance:
-
150 meters
-
Battery:
-
100Ah /200Ah/ 400Ah optional
-
Function:
-
Local & remote real time viewing and control
-
Application:
-
Construction sites & kinds of events

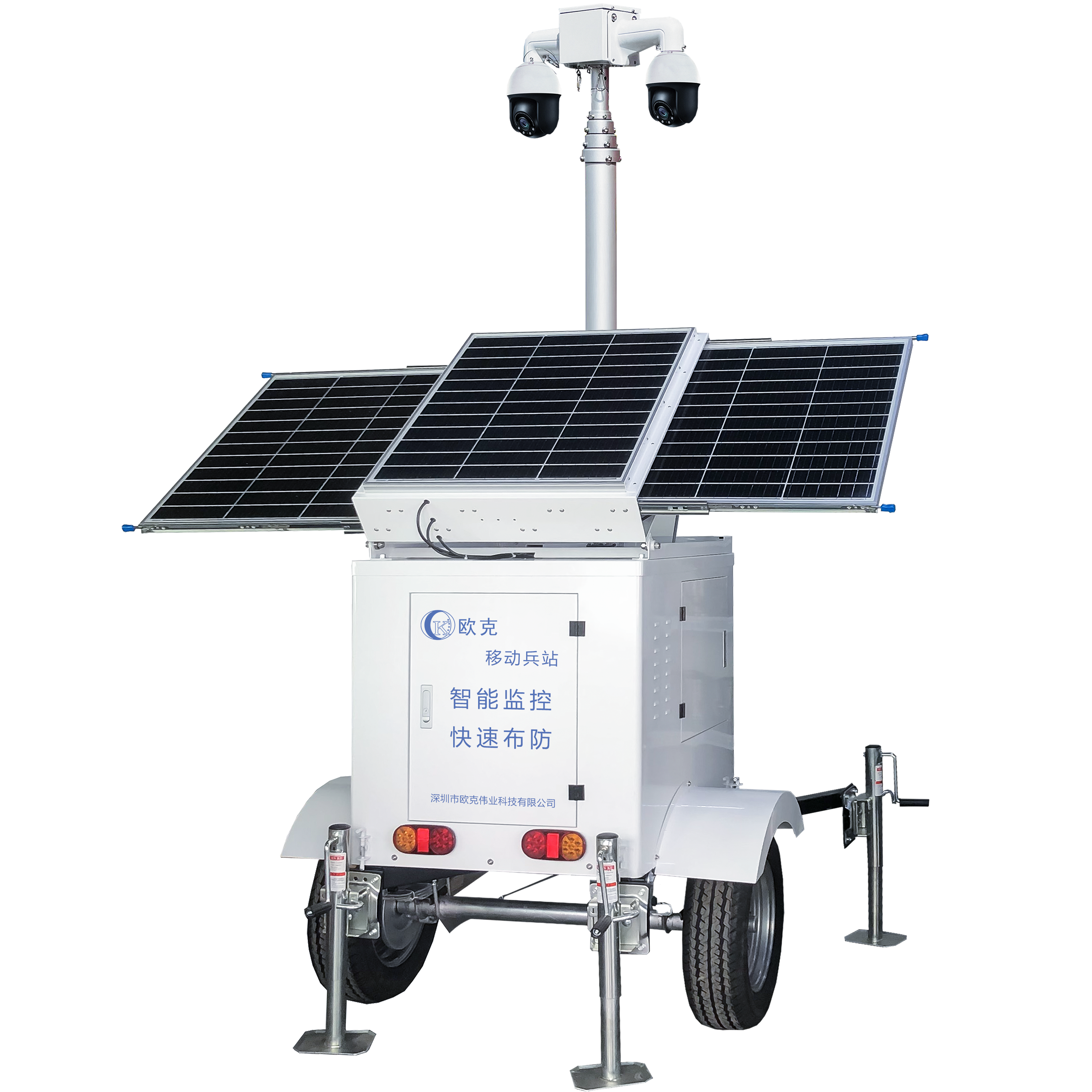

OKAF LED Mobile Sentry Light Tower Site Security Camera Solar CCTV Trailer with Light
Features of Mobile Surveillance Commanding System with Lights
♦ Front-end 360 degree no blind angle monitoring, equipment is mobile, more flexible to use.
♦ LED lighting (2 * 50W / 4 * 50W or customized according to requirements).
♦ No need to set points and wiring, reduce the cost of deployment.
♦ No need to disassemble,easy to use and operate.
♦ Rapid deployment. One can complete the system within 5 minutes to meet emergency need.
♦ 22-inch high-definition local display, wireless and local professional control keyboard.
♦ Thickened metal body, galvanized rust-proof bracket, more durable equipment.
♦ Battery last long time, the system can run for 5-7 days after one charge.
♦ Alternate charging optional,support solar and mains 220V input charging.
♦ 4G ,and LTN multiple signal transmission modes, data transmission is safe and smooth.
♦ Support drone video access and local display and software platform viewing.
♦ Supports intelligent detection of area intrusion detection, cross-border detection, motion detection, etc.
♦ Support license plate capture and retrieval, mixed line detection, multi-scene cruise detection, cloud storage service functions.
♦ High scalability, multi-functional installation platform, can increase anti-drones system, drone tracking system, drone relay acceptance, etc.
♦ Scalable AI intelligent algorithms: hard hats, reflective clothing, people counting, face recognition, license plate recognition, and IoT sensor modules: temperature and humidity, PM2.5, noise, air pollution, dust detection and other functional modules.
♦ Vrious anti-theft measures, built-in GPS positioning, vibration sensor, sound alarm, car lock, etc., to ensure system security.
♦ Back-end mobile control, view data and issue instructions anytime and anywhere.
System components
• Front end data mobile acquisition equipment.
• High brightness LED lighting.
• The high-speed trailer is equipped with an automatic lifting mast (the lifting of the mast and the zoom rotation of the camera can be controlled by the wireless remote control and RS485.
• Retractable outrigger, more stable.
• Various power supply measures (battery, solar power supply, AC charging).
• Alarm device.
• GPS positioning device.
• Wireless transmission equipment.
• Equipped with the latest wireless bridge technology, the sight distance transmission distance is up to 10km, and the non sight distance transmission distance is up to 50km.
• Compatible with traditional wired transmission mode (network cable, optical fiber, etc.)
• Back end storage and control system.
• Local and cloud storage at the same time, with local storage capacity up to 2T
• Support simultaneous control of PC terminal and handheld mobile terminal.
|
Camera |
Camera type | Infrared IP Network PTZ camera |
| Pixel | 2.0 megapixels | |
| Resolution | 1920*1080 @ 30fp | |
| Optical zoom | 20x /30x optical zoom optional | |
| Camera rotation angle | 360° horizontal continuously rotation | |
| -15°~ +90°Vertical rotation | ||
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | |
|
Video Transmission & storage
|
Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω | |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function | |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P | |
| Audio input | 4channel, Aviation interface | |
| Audio output | 1channel | |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power off, etc. | |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc. | |
| 2 way 485 interface, can extend PTZ | ||
| 2-way CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE | |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
|
Position |
Support built-in GPS / BD module, can report to the platform | |
| Hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) | |
| Input voltage | DC+8V ~ +38V | |
| Power supply | Battery |
12V·400Ah(customized according to requirements) Lithium battery or Lead-acid battery |
| Solar power | 3*100W solar panel | |
| AC power | 220V AC/50Hz | |
| Trailer(Tower) body & mast | Body color | White(could be customized) |
| Extended Height | 6m | |
| Project | Test conditions | |
| Wind power | Class 8 winds work normally Class 12 winds are not destroyed | |
| Low temperature storage | -55℃ | |
| Low temperature work | -40℃ | |
| High temperature storage | 70℃ | |
| High temperature work | 50 ℃ | |
| Humidity |
Less than 90%( temperature 25℃) |
|
| Rain | 6mm/min continuous 1h | |
| Rated load | Lifting ≤120N | |
| Lifting speed | Average speed 4m/min | |
| Safety | Self-locking at any height |
♦ Urgent surveillance for emergency rescue.
♦ Unpredictable threats.
♦ Change of incident locations.
♦ Mobile Surveillance for construction site .
♦ Mobile Surveillance for all kinds of events .
♦ Harsh environments that threaten personal safety
♦ Surveillance for unavailability of electricity, communication and lighting
