Quick Details
-
Brand Name:
-
CNC
-
Model Number:
-
YCS1-ATS
-
Rated Current:
-
20A-1600A
-
Rated current(A):
-
20,40,60,80,100,125,160,250,400,630,800,1000,1250,1600
-
Rated working voltage:
-
440V
-
Rated insulation voltage:
-
750V/1000V
-
Control power voltage:
-
DC24V, 48V, 110V AC220V
-
Material:
-
metal shell
Quick Details
-
Type:
-
3P/4P
-
Number of Pole:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
YCS1-ATS
-
Rated Current:
-
20A-1600A
-
Rated current(A):
-
20,40,60,80,100,125,160,250,400,630,800,1000,1250,1600
-
Rated working voltage:
-
440V
-
Rated insulation voltage:
-
750V/1000V
-
Control power voltage:
-
DC24V, 48V, 110V AC220V
-
Material:
-
metal shell
Product Category
Product Description

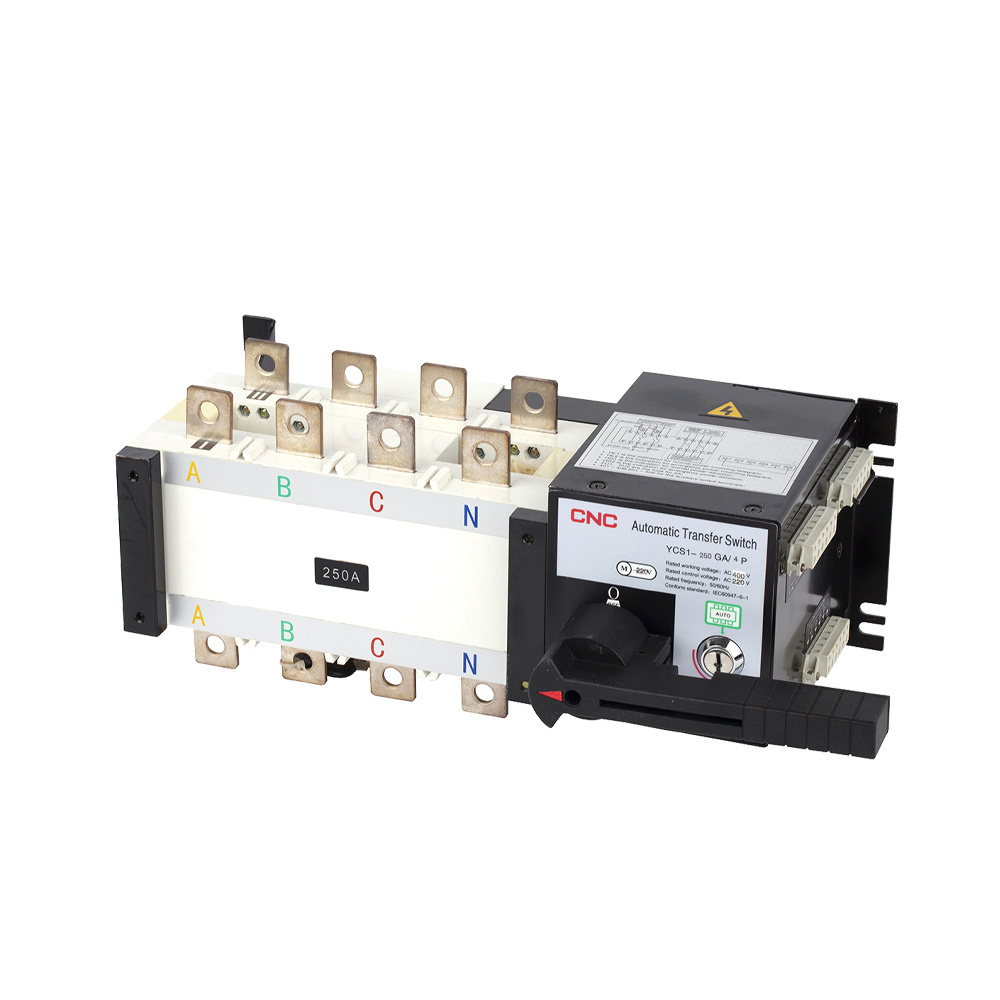

Ats 250a 100 Amp Automatic Transfer Switch
YCS1 switches overall design for the metal shell, compact solid. YCS1 switches, control of some of the mental shell , the shell switching components used fiberglass unsaturated polyester resin manuf
Product Detail
| Rated current(A) | 20,40,60,80,100,125,160,250,400,630,800,1000,1250,1600 |
| Rated working voltage | 440V |
| Rated insulation voltage | 750V/1000V |
| Control power voltage | DC24V, 48V, 110V AC220V |
| Material | metal shell |
| Product Keywords | ats 250a,Automatic Transfer Switch,100 amp automatic transfer switch |
Brief Introduction
1.YCS1 automatic transfer switch (ATSE) is set the switches and control logic
integrated without additional controller, achieve integration of automatic electro
mechanical switch, voltage detection, frequency detection, communication
interface, electrical, mechanical interlocking functions, automatic, electric remote
emergency manual control.
2.This is the logical control panel from various logical order to manage the
machines, operate with the gearbox to achieve, switching spring motor storage,
instantaneous release of the acceleration, rapid access to sub-circuit or circuits
conversion, it is obvious by the state security confinement, greatly improved the
performance of various electrical and mechanical properties.
3.YCS1 switches overall design for the metal shell, compact solid. YCS1 switches,
control of some of the mental shell , the shell switching components used
fiberglass unsaturated polyester resin manufacturing, with a strong dielectric
properties, protection and reliability of the operational safety.
4.Switch power supply system applicable to changeover the main power supply and
backup power supply automatically or two sets load equipment and safety
isolation automatically.
5.Switch appearance is beautiful, creative, simple, and small size. The entire function
is an ideal choice in different occasions.
Performance and Characters
1.Adopt the double row type composite contact, side pull institutions, micro motor prestore and microelectronics control
technology, come true zero flashover (no arcing chamber).
2.Reliable electrical and mechanical interlocking chain, the implement of the components independently with islation switch, the
use of safe and reliable.
3.Using over zero technology, the state of emergency can be enforced under the zero(cut down the 2 ways in the meanwhile) to
meet the needs of Fire Fighting.
4.Executive load isolation switch using a single motor-driven, transfer reliable smooth, no noise, little impact.
5.Operators drive only in the implementation of the electrical load isolation by switching transient current, steady work without
providing current, energy-saving significantly.
6.Executive load disconnector chain with a mechanical device used to ensure that reliable standby power of non-interference in
each other.
7.Obvious off position indicator, padlocks and other functions, high reliability and service life of more than 8000 times.
8.Mechatronics design, switching conversion accurate, flexible, smooth and adopt international advanced logic control technology,
anti-interference capability, without external interference.
9.Cooperation with the main power on and standby power off, or the main power off and standby on, the main power and standby
power are both off, three kinds stability working.(I-O-II)
10.Easy installation, the control circuit return way adopt the connect and insert terminal connector.
11.Four operator models: emergency manual operation, electric remote control operation, emergency disconnected
operation under the automatic stating, automatic control operations.
