Quick Details
-
Model Number:
-
GA611BA
-
colour:
-
green
Quick Details
-
Type:
-
projectile loom
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LULI
-
Model Number:
-
GA611BA
-
colour:
-
green
The loom applications:

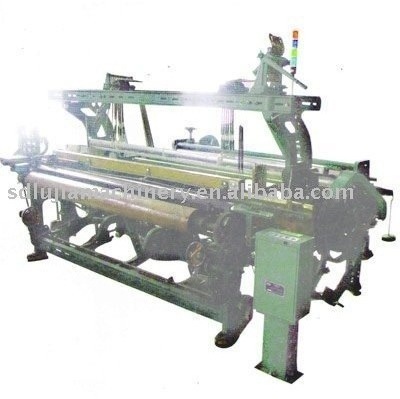

GA615BA-135-180cm Multi-shuttle-box Towel Loom is most fitted for weaving cotton pile loop fabric.Technical character is tics of the fabrics.is one single faced or double-faced pile loop formed for every 3or4 picks.The machines can weave with 4 different yarns (with different materials or coIours).This loom can weave towel and the towelling for clothing.If the loom is equipped with jacquard mechanism. It can produce figure pillowcases.Bath towels,towelling coverlet etc
Technical data:
(1)Type -- under pick.multi--shuttle box loom model with automatic stop motion and weft replenishing to be done manually after stopping loom.
(2)Standard reed space -- 1350mm. 1500mm ,1800mm
(3)Machine hand:L.H & R.H
(4)Crank shaft speed -- 125-140r/min
(5)Number of shuttle box -- 1 x 4
(6)Box changing motion -- controled by cards for changing shuttle boxs at an even number of picks
(7)Number of heald frames -- 13frames
(8)Diameter of warp beam flanges--1458mm( pile warp)1495(ground warp)
(9)Full cloth roller diameter -- f300mm
(10)Overall dimension of loom
1350mm L2654mm x W1617mm x H2215mm .
1500mm L3128mm x W1617mm x H2215mm .
1800mm L3433mm x W1617mm x H2215mm .
