Quick Details
-
Knitting Method:
-
three
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 10GG, 16GG, 8GG, negotiable
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YIMA
-
Power:
-
1 W, 220V
-
Weight:
-
1100 KG
-
Dimension(L*W*H):
-
3180X960X2000
-
Product Name:
-
Computerized Flat Knitting Machine
-
Application:
-
Jacquard Sweater
-
After-sales Service Provided:
-
Online Support
-
Certificate:
-
CE ISO
-
System:
-
THREE SYSTEM SINGLE CARRIAGE
-
Manufacturer:
-
yes
-
Knitting Speed:
-
1.4m/s MAX.1.4M/SEC
Quick Details
-
Type:
-
sweater knitting machine
-
Production Capacity:
-
100%
-
Knitting Style:
-
Warp
-
Knitting Method:
-
three
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 10GG, 16GG, 8GG, negotiable
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YIMA
-
Power:
-
1 W, 220V
-
Weight:
-
1100 KG
-
Dimension(L*W*H):
-
3180X960X2000
-
Product Name:
-
Computerized Flat Knitting Machine
-
Application:
-
Jacquard Sweater
-
After-sales Service Provided:
-
Online Support
-
Certificate:
-
CE ISO
-
System:
-
THREE SYSTEM SINGLE CARRIAGE
-
Manufacturer:
-
yes
-
Knitting Speed:
-
1.4m/s MAX.1.4M/SEC

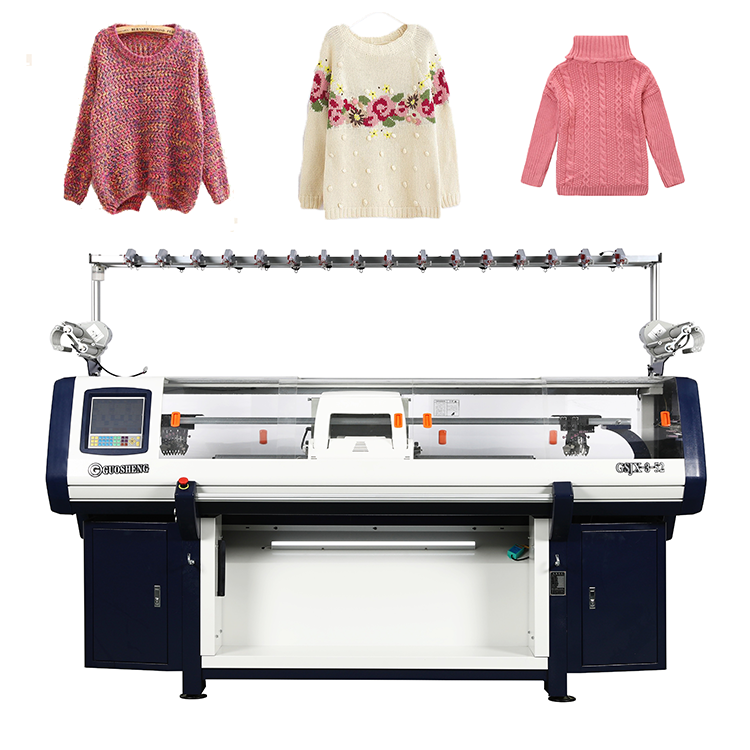

Products Description
|
Model :
|
GS-S352
|
Knitting speed:
|
1.4m/s MAX.1.4M/SEC
|
|
gauge:
|
3-5-7G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G
|
Knitting function:
|
Knitting And Tuck In One Row,Tranfer、Tuck、Miss、Jacquard、Intarsia、Hide Or Apparent Shaping.
|
|
Knitting Syetem:
|
THREE SYSTEM SINGLE CARRIAGE
|
Drive system:
|
Synchronous Belt Drive,Ac Servo System
|
|
Knitting width:
|
52inch,
|
Power:
|
220V ，Single-Phase，Have Memorizing Function At The Power-Off Moment
|
Needle bed:
Divided structure ,steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longevity.
Touch screen:
One-touch screen,easy operation ,satisfy experience .
The display is capable of showing pictures with colors,displaying number og pieces,finished pieces,knitting time,speed,roller,mesh numbers ,yarn nozzle,etc.,whicj can be adjusted any time during the operation of the machine .
Yarn storage.
The yarn storage is installed between the yarn bucket and knittting system ,which greatly improves the uneven tension caused by overlong yarn journey ,reduces the resistance of the running yarn ,resulting in elevated texture of the fabrics and capable of controlling the density and dimension of the fabrics.
Carriage:
The journey of the carriage can be automatically adjusted as per the width of the knitting fabric.The adjustment can be done swiftly and the positioning is precise,which avoids the useless movement and greatly elevates the productivity of the machine.
