Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/SHOUHAN
-
Model Number:
-
pcb swtich series
-
Item name:
-

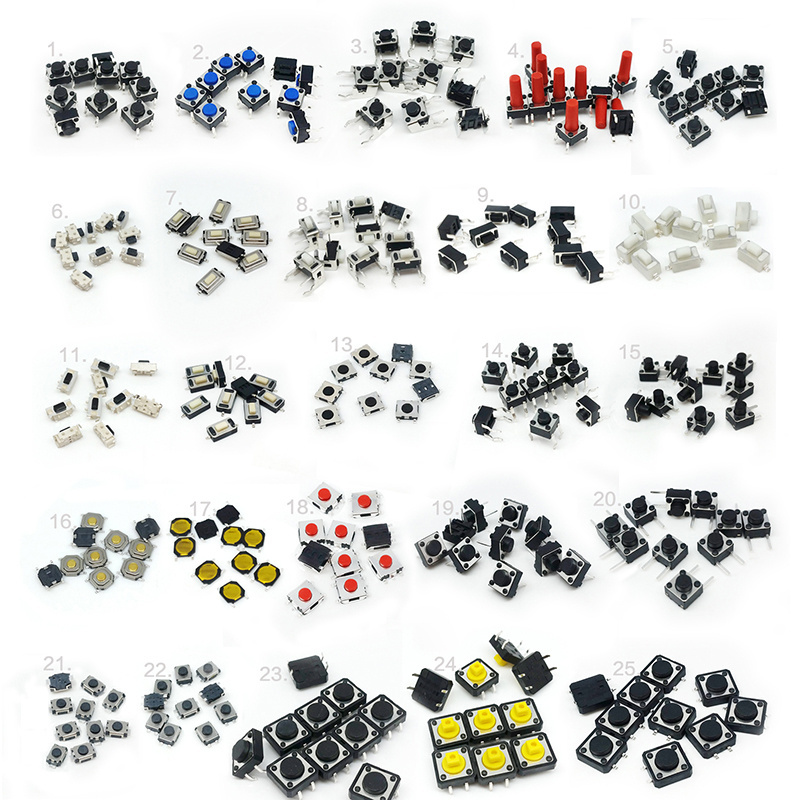

4pin SMT DIP pcb switch series tactile switch micro tact switch
-
Model:
-
pcb swtich series
-
Contact resistance:
-
≤100mΩ
-
Insulation resistance:
-
≥100MΩ
-
Withstand voltage:
-
AC250V(50HZ-60HZ)/min
-
Operation force:
-
250gf-300gf
-
Life time:
-
50,000 cycles
-
Working temperature:
-
-20~+70℃
-
Full travel:
-
0.3±0.1mm
-
Certification:
-
ROHS
Quick Details
-
Protection Level:
-
high level
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/SHOUHAN
-
Model Number:
-
pcb swtich series
-
Item name:
-
4pin SMT DIP pcb switch series tactile switch micro tact switch
-
Model:
-
pcb swtich series
-
Contact resistance:
-
≤100mΩ
-
Insulation resistance:
-
≥100MΩ
-
Withstand voltage:
-
AC250V(50HZ-60HZ)/min
-
Operation force:
-
250gf-300gf
-
Life time:
-
50,000 cycles
-
Working temperature:
-
-20~+70℃
-
Full travel:
-
0.3±0.1mm
-
Certification:
-
ROHS
|
Product Name |
4pin SMT DIP pcb switch series tactile switch micro tact switch application in Smart Electronic products |
|
Cycle |
50,000 cycles |
|
Operating force
|
250gf-300gf
|
|
Temperature |
-20 ℃ ~+70℃ |
|
Contact resistance
|
≤100mΩ |
|
Rated load
|
DC12V 50mA |
